Coats CWA 6500 Wheel Aligner

The Coats CWA 6500 Wheel Aligner is an advanced 3D wheel alignment system designed for high-volume automotive repair shops, tire dealers, dealerships, and professional alignment service facilities. Featuring an automatic tracking camera beam, QC20 tire gripping clamps, a large 32" LCD display, and a versatile mobile cabinet, the CWA 6500 combines precision alignment technology with the flexibility needed for modern automotive service operations.

Designed to make wheel alignments faster, easier, and more productive, the Coats CWA 6500 features intuitive alignment software, automatic camera positioning, multiple runout compensation options, and a complete accessory package. Its innovative QC20 tire gripping clamps attach directly to the tires rather than the wheels, helping protect expensive alloy and specialty wheels from potential clamp damage.

Features and Benefits:

• Advanced 3D Wheel Alignment Technology: Uses precision camera-based measurements to provide accurate wheel alignment readings for passenger cars, SUVs, and light trucks.
• Automatic Tracking Camera Beam: Motorized camera beam automatically adjusts to vehicle height, eliminating the need for manual camera repositioning when raising or lowering the alignment lift.
• QC20 Tire Gripping Clamps: Innovative self-centering clamps grip the tire rather than the wheel, helping prevent damage to expensive alloy and specialty wheels.
• Two Sets of Wheel Clamps Included: Includes four QC20 tire gripping clamps and four traditional wheel clamps for additional flexibility when servicing different vehicles.
• Large 32" LCD Display: Provides clear, easy-to-read alignment measurements and visual guidance throughout the alignment process.
• Movable Display: Allows technicians to position the screen for convenient viewing while working around the vehicle.
• Mobile Cabinet: Wheeled cabinet design allows the alignment system to be repositioned between service bays, maximizing shop flexibility.
• All Measurements Screen: Displays front and rear alignment measurements together, helping technicians quickly evaluate the vehicle's overall alignment condition.
• Toe Plus: Provides step-by-step guidance to help technicians achieve a straight steering wheel while adjusting front toe.
• Toe Curve Measurement: Supports additional alignment procedures required for applicable vehicle configurations.
• Custom Alignment Specifications: Allows technicians to create and save custom alignment specifications for specialty vehicles and repeat service applications.
• Multiple Runout Compensation Options: Provides flexibility to accommodate different vehicle configurations and alignment procedures.
• Raised Vehicle Measurement Mode: Supports alignment measurements and procedures with the vehicle raised when required.
• Wheelbase and Track Width Measurements: Provides additional vehicle geometry information during the alignment process.
• VIN Scanner Included: Allows technicians to quickly identify vehicles and retrieve the appropriate alignment specifications.
• Printer Included: Provides printed alignment reports that can be shared with customers to document alignment conditions and completed adjustments.
• Black Diamond Mini Targets: Lightweight, low-profile targets simplify installation and handling during alignment service.
• Smart Device Control: Allows technicians to review alignment measurements using a compatible smartphone or tablet while working around the vehicle.
• Professional Alignment Software: Intuitive, technician-friendly interface provides visual guidance through the alignment process.

Specifications:

Installation Requirements:

Proper installation and bay layout are important for accurate operation of the Coats CWA 6500. Coats recommends a 95" installation distance, with an allowable range of 68" to 100". Customers should review the Coats pre-installation requirements and verify available bay space, lift compatibility, and installation clearances before ordering.

Standard Included Accessories:

• (4) QC20 Tire Gripping Clamps
• (4) Traditional Wheel Clamps
• (4) Black Diamond Mini Targets
• VIN Scanner
• Printer
• Mobile Cabinet with Wheels
• 32" LCD Display
• Automatic Tracking Camera Beam
• Brake Pedal Depressor
• Steering Wheel Holder
• Wheel Chocks

Automatic Tracking Camera Beam:

The Coats CWA 6500 features an advanced motorized camera beam that automatically adjusts to the height of the vehicle during alignment procedures. This eliminates the need for technicians to manually reposition the cameras as the alignment lift is raised or lowered.

Automatic camera tracking helps streamline alignment service, reduces unnecessary setup adjustments, and provides greater flexibility when working with different vehicle heights and alignment lift configurations.

QC20 Tire Gripping Clamps – Protect Expensive Wheels:

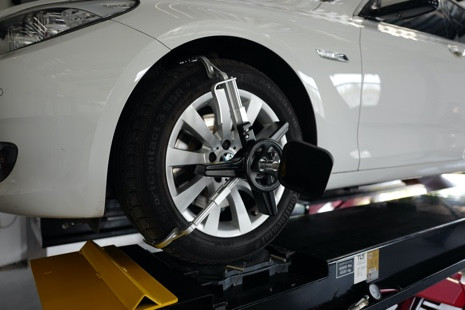

One of the most important advantages of the Coats CWA 6500 is its innovative QC20 tire gripping clamp system. Unlike traditional wheel clamps that contact the rim, QC20 clamps grip the tire itself, helping prevent potential damage to expensive alloy, painted, and specialty wheels.

The self-centering QC20 clamps are designed for quick installation and can accommodate tire diameters from 20" to 43". Their tire-gripping design helps reduce the risk of wheel damage while simplifying setup for compatible wheel and tire assemblies.

The CWA 6500 also includes four traditional wheel clamps, giving technicians the flexibility to select the appropriate clamping method for each vehicle.

Large 32" Display and Intuitive Alignment Software:

The CWA 6500 features a large 32" LCD display that provides clear alignment measurements, visual instructions, and easy-to-read vehicle specifications. The intuitive software interface guides technicians through the alignment process and helps simplify everyday operation.

The All Measurements Screen displays front and rear alignment information together, allowing technicians to evaluate the vehicle's overall alignment condition without repeatedly switching between screens.

Toe Plus – Simplified Steering Wheel Centering:

Coats Toe Plus provides step-by-step guidance to help technicians achieve a straight steering wheel while adjusting front toe. This feature simplifies one of the most important parts of the alignment process and helps technicians complete adjustments with greater consistency.

Multiple Runout Compensation Options:

The Coats CWA 6500 provides five runout compensation options, allowing technicians to select the appropriate procedure for different vehicle configurations and alignment requirements.

This flexibility helps accommodate a wide range of service situations while supporting accurate, repeatable alignment measurements.

Mobile Cabinet for Flexible Shop Layouts:

Unlike fixed alignment systems that must remain in one location, the Coats CWA 6500 features a mobile cabinet with wheels. This allows the alignment system to be repositioned between compatible service bays as needed.

The mobile design is particularly valuable for shops looking to maximize equipment utilization, improve workflow, or expand alignment service without permanently dedicating the system to a single bay.

VIN Scanner and Printed Alignment Reports:

The included VIN scanner helps technicians quickly identify the vehicle and access the appropriate alignment specifications. This reduces manual data entry and helps ensure that the correct vehicle information is selected.

The included printer allows shops to provide customers with printed alignment reports documenting vehicle measurements and completed service. These reports help demonstrate the value of professional alignment service and provide a useful record of the vehicle's condition.

Complete Professional Alignment Package:

The Coats CWA 6500 includes the major accessories needed to perform professional wheel alignments, including QC20 tire gripping clamps, traditional wheel clamps, Black Diamond Mini Targets, a VIN scanner, printer, steering wheel holder, brake pedal depressor, and wheel chocks.

For shops building a dedicated alignment bay, the CWA 6500 can be paired with compatible alignment lifts, including Coats four-post and scissor alignment lifts. Alignment lift equipment is sold separately unless specifically included in a package.

Why Choose the Coats CWA 6500 Wheel Aligner?

The Coats CWA 6500 combines advanced 3D wheel alignment technology with the convenience and flexibility needed for modern automotive service facilities. Its automatic tracking camera beam, innovative QC20 tire gripping clamps, large 32" display, mobile cabinet, and technician-friendly software help simplify alignment procedures while protecting valuable wheels.

For high-volume tire shops, dealerships, and automotive repair facilities looking to improve alignment productivity and expand their wheel service capabilities, the Coats CWA 6500 Wheel Aligner provides a complete professional alignment solution backed by the Coats name.
