iDEAL Crossflow Paint Booth

(You save $1,800.00 )
(No reviews yet) Write a Review
Usually ships in 3-5 Business Days

iDEAL’s PSB-AFCF23ASY Cross Flow Draft Paint Booth is our most economical and easiest to install paint booth. The Cross Flow design pulls filtered air through the front of the booth and exhausts filtered air through the rear of the booth. Powder coated 18 gauge flanged panels bolt together using high quality 5/16″ hardware for a long lasting quality booth. Entry doors and personnel doors are outfitted with heavy duty hinges with integrated vertical and horizontal adjustment. Our tilt panel design utilizes vertical lighting for easy installation and effective lighting to allow the painter to move around the booth with limited light interference. The Cross Flow Draft Paint Booth uses minimal space and can be used for automotive refinishing, industrial finishing and furniture finishing.


  • iDeal stocks booths and typically ship within 48 hours.
  • Deluxe Control Panel – Included!
  • 24” Fan Motor – Dayton – Included! U.S. manufactured, UL listed spark resistant fans.
  • NEMA rated 3HP – 3 Phase – 230/460VAC-60Hz motors.
  • Premium intake and exhaust filters included.

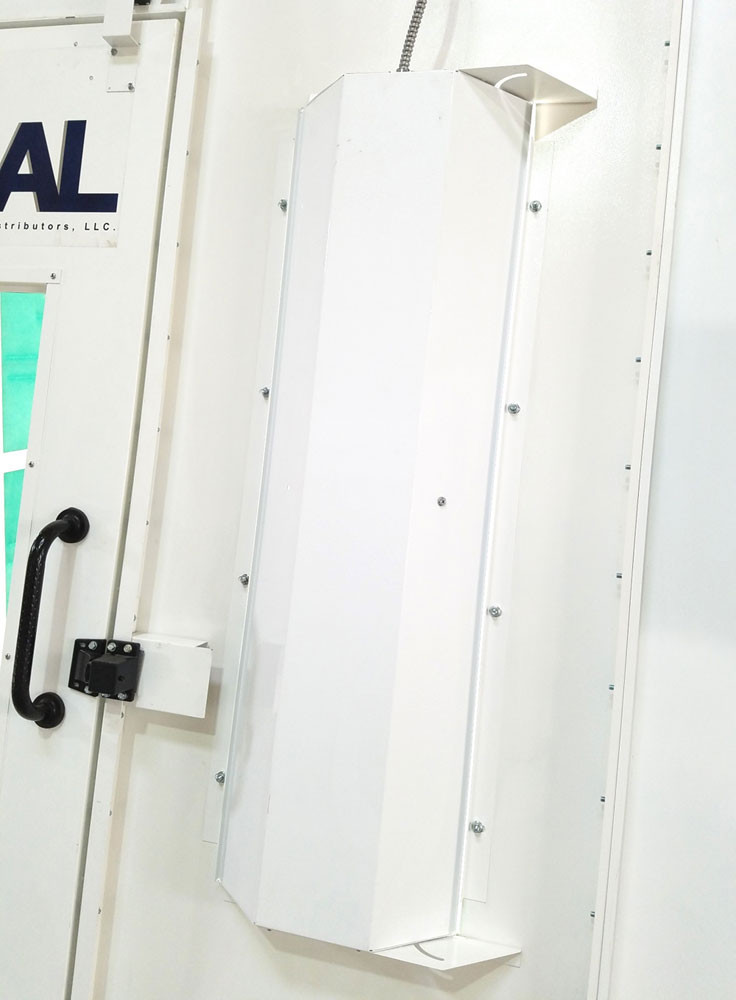

  • LDPI Industrial Lighting – Included! 6 – T-8 light fixtures with four bulbs each, vertical installation.
  • Heavy duty precision punched 18 Gauge panel construction.
  • Bright White Powder Coat Finish – Included!
  • Double Entry Doors with shutoff switches.
  • Personnel Door with a viewing window and shutoff switches.
  • Manometer, Solenoid Valve, Hardware and Sealant Included.
  • Meets NFPA 33.
  • Inside Dimensions: 22′ 6″ L X 13′ W X 8′ 6″ H

Click here for Product Specifications and Description of Optional Kits & Accessories


Inside Dimensions: 22′ 6″ L X 13′ W X 8′ 6″ H
Outside Dimensions: 25′ 4″ L X 13′ 4″ W X 8′ 10″ H
Fan Motor: 24″ Tube Axial Fan, 3HP, 3PH-230/460VAC-60Hz, Non Spark, NEMA Rated
CFM: 9,500 @ .5 Static Pressure
Lighting: 6 ea, T-8 Light Fixtures, Four Bulbs Each
