- TYPICALLY SHIPS WITHIN 48 HOURS!
- COMMERCIAL GRADE DESIGN FOR OPTIMAL AIR FLOW & LIGHTING COVERAGE

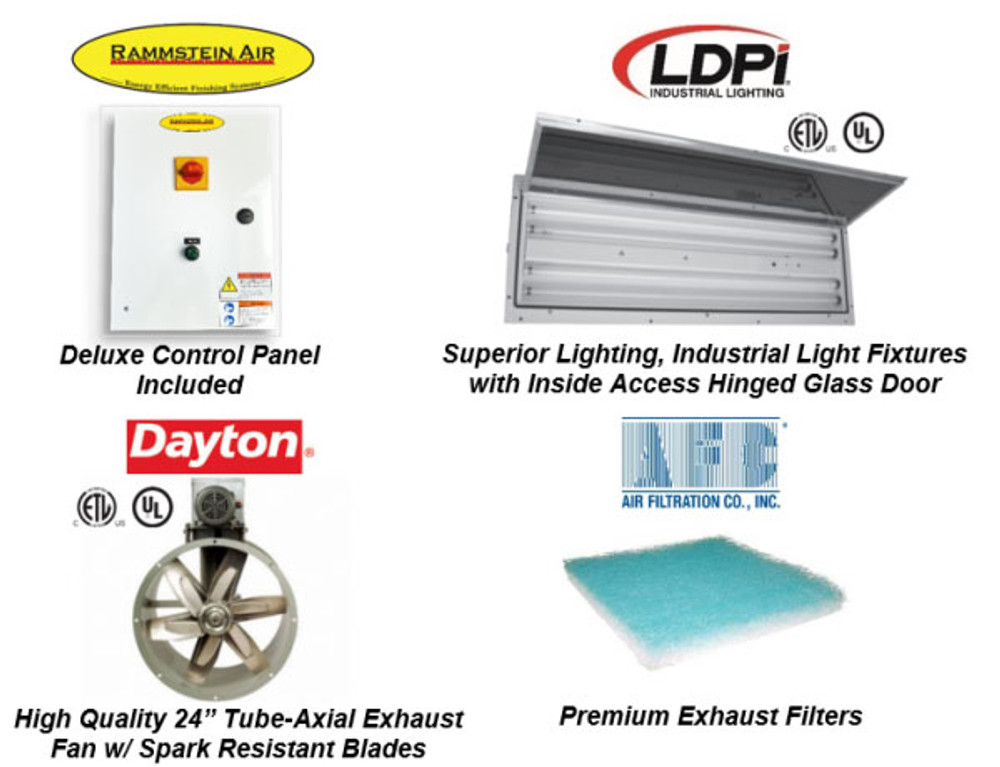

- DELUXE CONTROL PANEL INCLUDED
- BRIGHT WHITE POWDER COAT PANEL FINISH – (INSIDE & OUTSIDE)
- HEAVY DUTY PRECISION PUNCHED 18 GAUGE PANEL CONSTRUCTION
- CONVENIENT 5/16” BOLT & SERRATED LOCK NUT ASSEMBLY
- UL LISTED DAYTON 24” TUBE-AXIAL EXHAUST FAN W/ SPARK RESISTANT FAN BLADES
- NEMA RATED 2HP-3 PHASE – 230/460VAC-60HZ MOTOR STANDARD
- PREMIUM AFC EXHAUST FILTERS
- LDPI INDUSTRIAL LIGHT FIXTURES W/ INSIDE ACCESS HINGED GLASS DOOR
- (2EA) LDPI INDUSTRIAL (CLS1 / DIV 2) LIGHT FIXTURES – UL & ETL (GROUPS A, B, C & D.)
- TRUE ‘DAYLIGHT COLOR’ W/ GE T8 48” FLORESCENT LAMPS 32W – 2900 LUMENS, 5000K

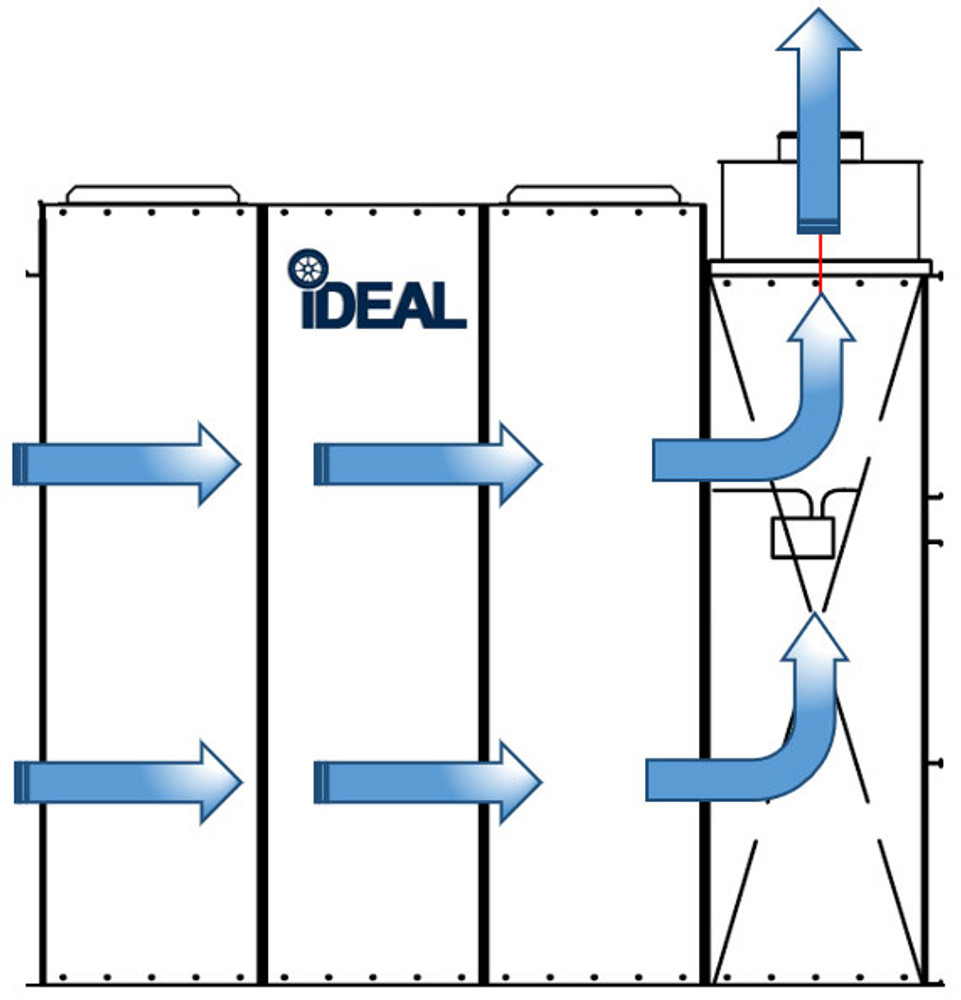

- OPTIMAL AIR FLOW W/ CFM 7,983 @ .5 STATIC PRESSURE
- INSIDE DIMENSIONS: 13″ W X 8′ W X 7.6″ D
- ALL ASSEMBLY HARDWARE, MANOMETER & SEALANT INCLUDED
- MEETS AND/OR EXCEEDS ALL APPLICABLE OSHA & NFPA 33 REGULATIONS
- EASY TO INSTALL, OPERATE & MAINTAIN
- OPTIONAL: 1PH ELECTRICAL & PSB-25DUCTKIT-8 KIT ASY
Specifications
| Paint Booth Model |
PSB-AFOFB1388-AK |
| Inside Dimensions |
13’W X 8-6”H X 7’-6”D |
| Outside Dimensions |
13′-4″W X 8’-10″H X 10’-2″D |
| Fan / Motor |
(1ea) – 24″ Tube Axial Fan |
| CFM |
7,983 @ .5 Static Pressure |
| Light Fixtures |
(2ea) 48” 32W, T8 / 4 Bulb Light Fixtures UL & ETL Listed Cls1, Div2 – Groups A, B, C & D |
| Lamps |
(8ea) T8 Florescent, 32W, 5000K – 48”L |
|
Options |
1 Phase Electrical Configuration |
|
8′ Exhaust Duct Kit (24″ Diameter) |
|
|
LED Lighting Upgrade Kit |
