Features
• Bi-Symmetric Arm Design

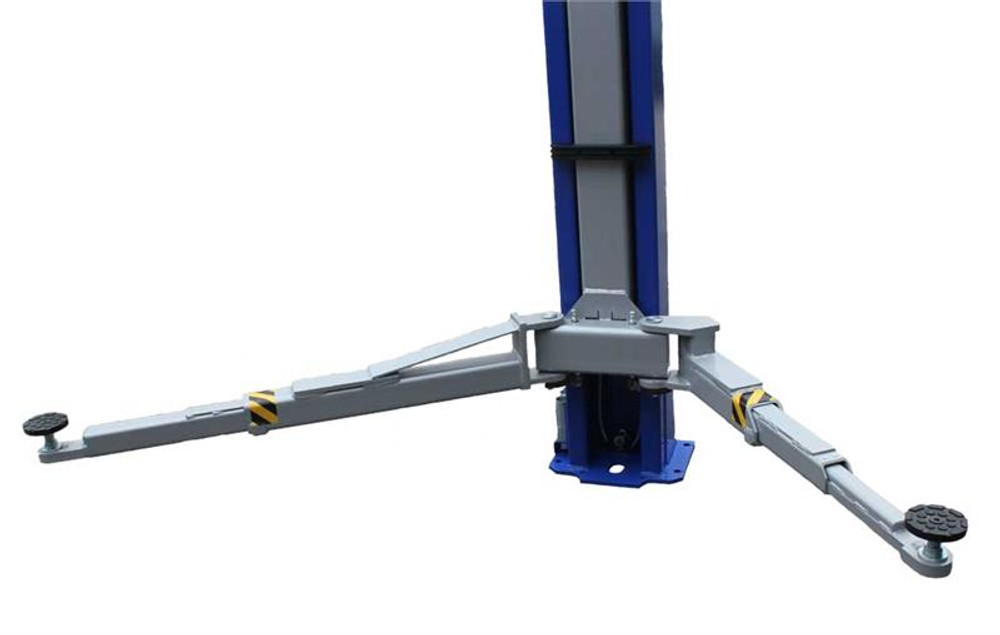

• Offset Three Stage Short Arm
• Low Profile Lifting Arms
• Adjustable Spin Up Pads
• Single Point Lock Release
• Rigid Single Piece Column
• Direct Pull Hydraulic Cylinder

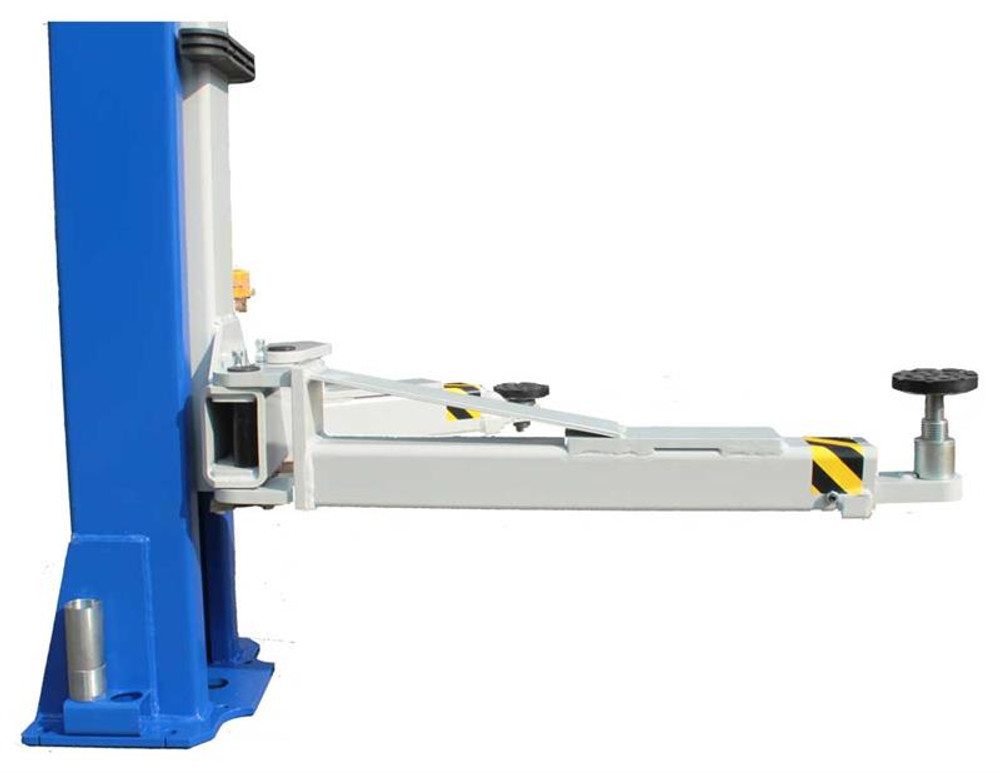

• Rubber Door Guards
• Padded Overhead Shutoff
• Truck Adapters Included
Specifications
Capacity | 10,000 lbs. |
Overall Width | 137 3/16″ |
Overall Width w/Power Unit | 145 1/2″ |
Overall Height | 144″ |
Minimum Ceiling Height | 12′ |
Low Pad Height | 4″ |
Max. Lift Height | 71″ |
Max. Lift Height w/Tallest Adapter | 76 1/2″ |
Width Between Columns | 116″ |
Drive Thru Width | 104″ |
Floor to Overhead Shutoff | 136″ |
Arm Reach Front | 23″ – 45″ |
Arm Reach Rear | 41″ – 57″ |
Maximum Load Per Arm | 2,500 lbs |
Electric Power Unit | 220VAC, 20 Amp, 1 Phase |
Rise Speed | 50 Seconds |
Minimum Concrete | 4 1/4″ / 3000PSI |
Operating Pressure | 3,050 PSI |
Shipping Weight | 1,705 lbs. |
Shipping Dimensions | 140″ L X 19″ W X 40″ T |
