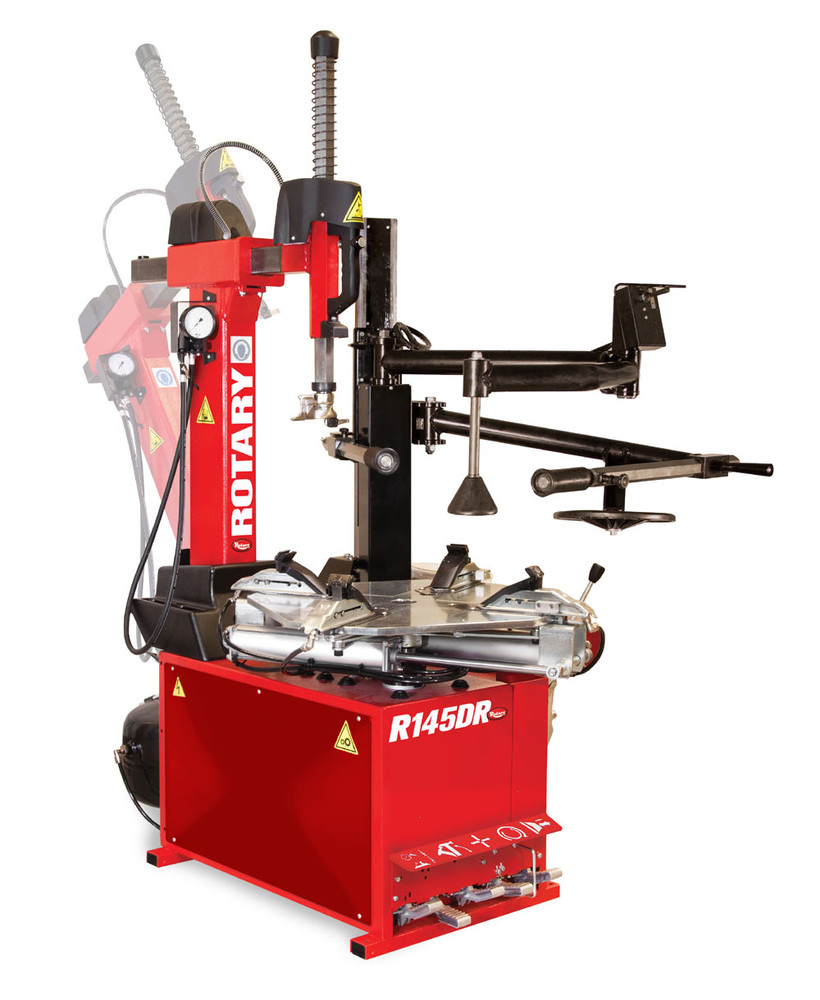

Rotary R145DR Tiltback VSC Tire Changer

$14,999.00
$13,740.00
(You save $1,259.00 )
Free_shipping:
Shipping
(No reviews yet) Write a Review
SKU:
#R145DR
Availability:
Estimated to ship in 7-9 business days
Product Manual/Brochure:
Download

The R145DR is an automatic tire changer with an innovative electric motor inverter, which gives the ability to regulate the chucking table rotation speed to reduce the stress on the bead to avoid any damage to the tire. This tire machine is also equipped with the Fast Inflation (FI) configuration.

  •  Automatic Tire Changer
  •  FI Configuration (quick inflation for tubeless tires)
  •  220V power-driven motor
  •  Invemotor 0-16 Variable Speed Control
  •  Designed for Large and Wide Tires
  •  Shown with standard helper included
  •  Hand operated bead breaker handle

Features

Galvanized double-acting bead breaker
designed to protect alloy rims.

Double synchronization: perfect load
distribution for maximum durability.

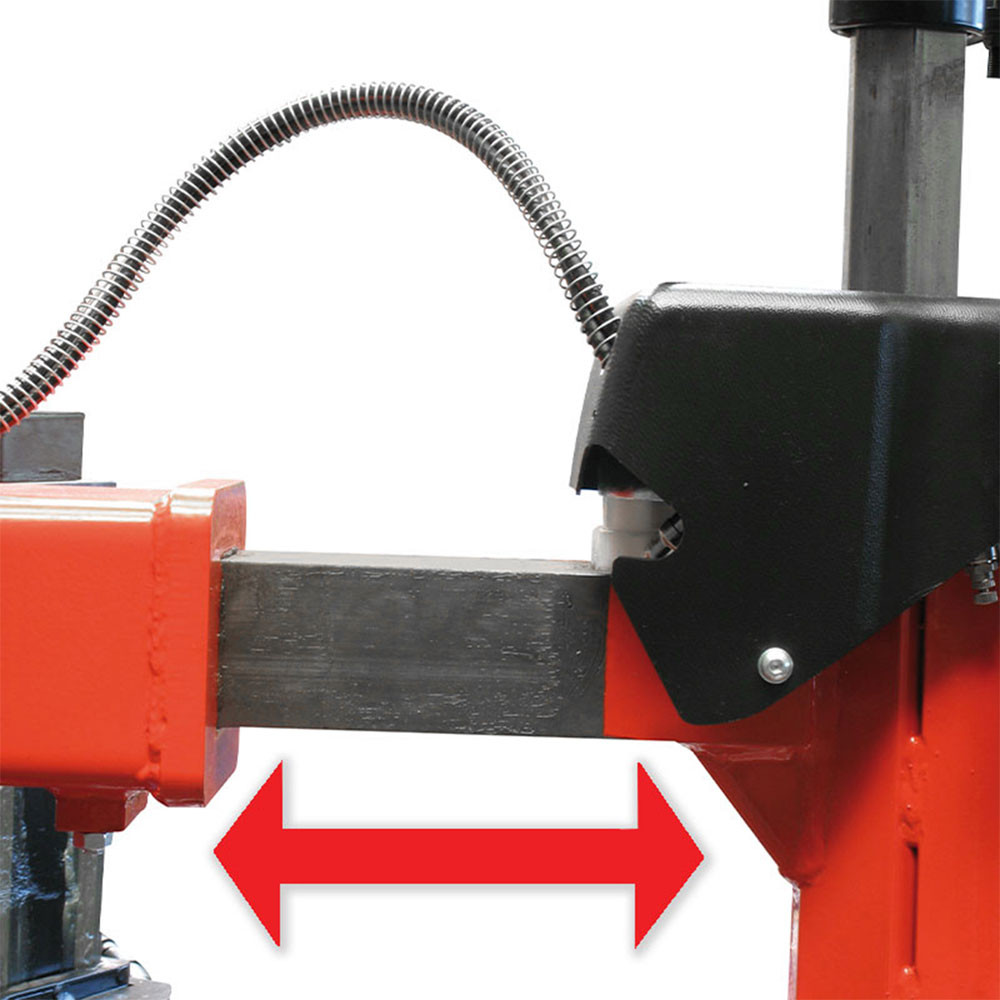

Maximum rigidity with 2.4″ x 2.4″ horizontal shaft.

Removable pedal unit for easy maintenance.

Quick inflation valve for tubeless tires. Pedal-operated inflation device complete with inflator valve and pressure gauge.

Air filter and lubricator included.



Specifications

Technical Data

R145D

Motor

180/260V (60Hz) / 1ph 0,75kW

Maximum torque to chuck

885 Ft/L bs (1200 Nm)

Self-centring lock: external

10”- 26”

Self-centring lock: internal

12”- 28,5”

Tool working span

8”- 32”

Maximum tire diameter

45” (1143mm)

Maximum tire width

17” (431mm)

Bead breaker cylinder power at 145 psi

6,745 lbs/force

Power supply Motor

220v / 1Ø / 60 Hz 1 Hp

Free_shipping:
Shipping
Product Manual/Brochure:
Download
Motor:
180/260V (60Hz) / 1ph 0,75kW
Maximum torque to chuck:
885 Ft/L bs (1200 Nm)
Self-centring lock: external:
10”- 26”
Self-centring lock: internal:
12”- 28,5”
Tool working span:
8”- 32”
Maximum tire diameter:
45” (1143mm)
Maximum tire width:
17” (431mm)
Bead breaker cylinder power at 145 psi:
6,745 lbs/force
Power supply Motor:
220v / 1Ø / 60 Hz 1 Hp
