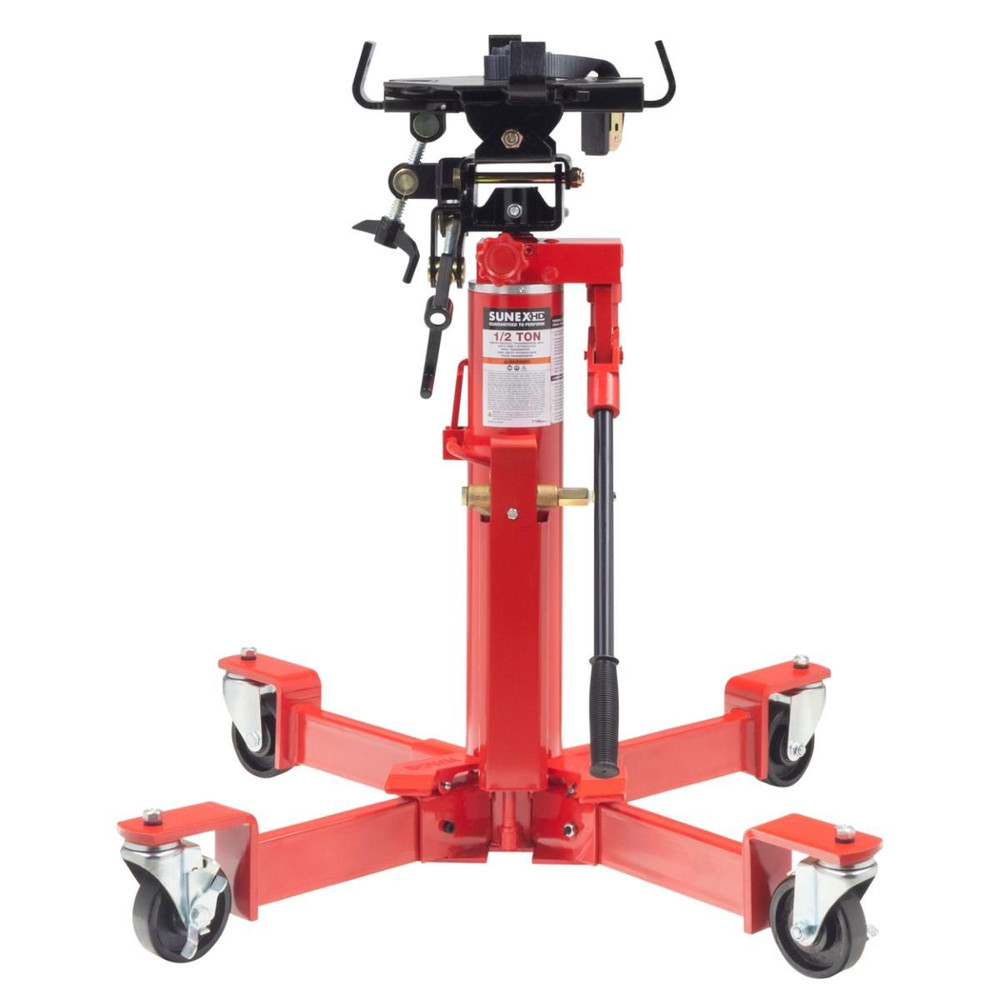

Sunex 7796 1,000 lb Capacity Air/Hydraulic Telescopic Transmission Jack

The Sunex 7796 1,000 lb Capacity Air/Hydraulic Telescopic Transmission Jack is designed for the removal, installation, and positioning of automotive transmissions, transfer cases, and transaxles in professional repair shops. Featuring a two-stage air and hydraulic lifting system and a 35" to 73.5" lift range, the 7796 provides the lifting height and adjustability needed for transmission service on vehicles supported by automotive lifts.

The Sunex 7796 combines an air-activated first lifting stage with a manually operated hydraulic second stage. A foot pedal controls the initial air-powered lift, while a pump handle raises the second stage for additional height and positioning. The adjustable transmission saddle features four ratcheting arms and multi-axis tilt adjustment to help technicians securely support and align transmission components during removal and installation.

Sunex 7796 Features & Benefits

• 1,000 lb Lifting Capacity: Designed for removing, installing, and positioning automotive transmissions, transfer cases, and transaxles.
• Two-Stage Air/Hydraulic Operation: Air-powered first stage and manually operated hydraulic second stage provide versatile lifting control for professional transmission service.
• 35" to 73.5" Lift Range: Telescopic design provides the lifting height needed for transmission removal and installation on vehicles supported by automotive lifts.

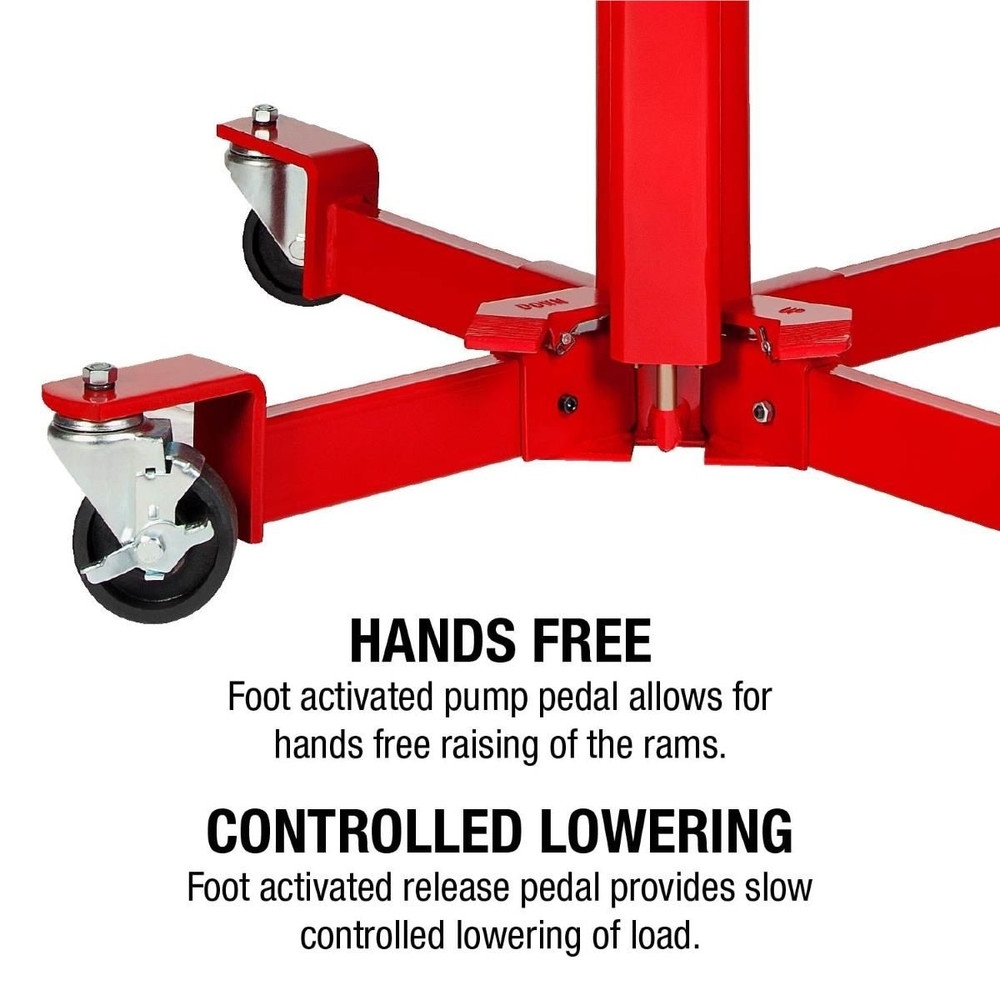

• Foot-Operated Air Lift: Air-activated first stage is controlled by a foot pedal, helping reduce manual pumping during initial lifting.
• Manually Operated Hydraulic Second Stage: Pump handle raises the second stage for additional lifting height and transmission positioning.

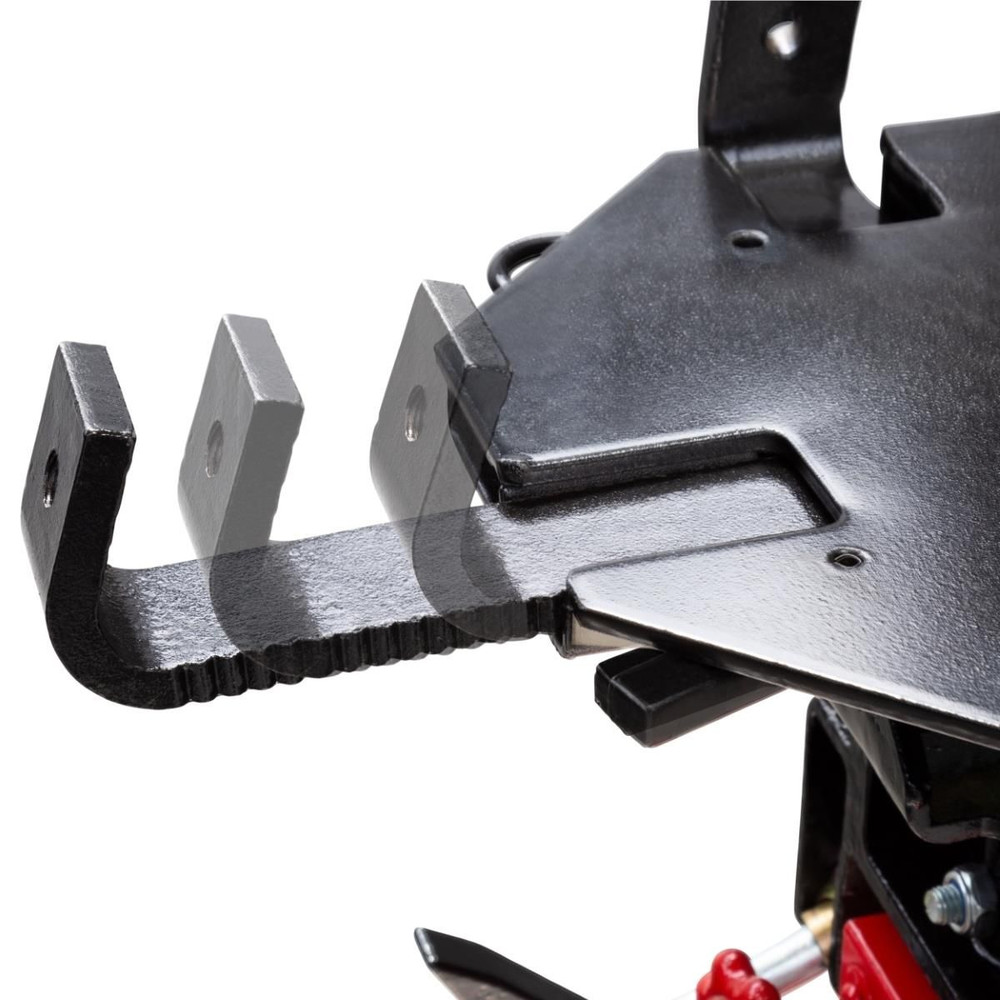

• Adjustable Transmission Saddle: Four ratcheting saddle arms adjust to fit the mounting flange around the transmission oil pan.
• Multi-Axis Tilt Adjustment: Provides 37° forward tilt, 26° backward tilt, and 12° side tilt in either direction for transmission alignment during removal and installation.

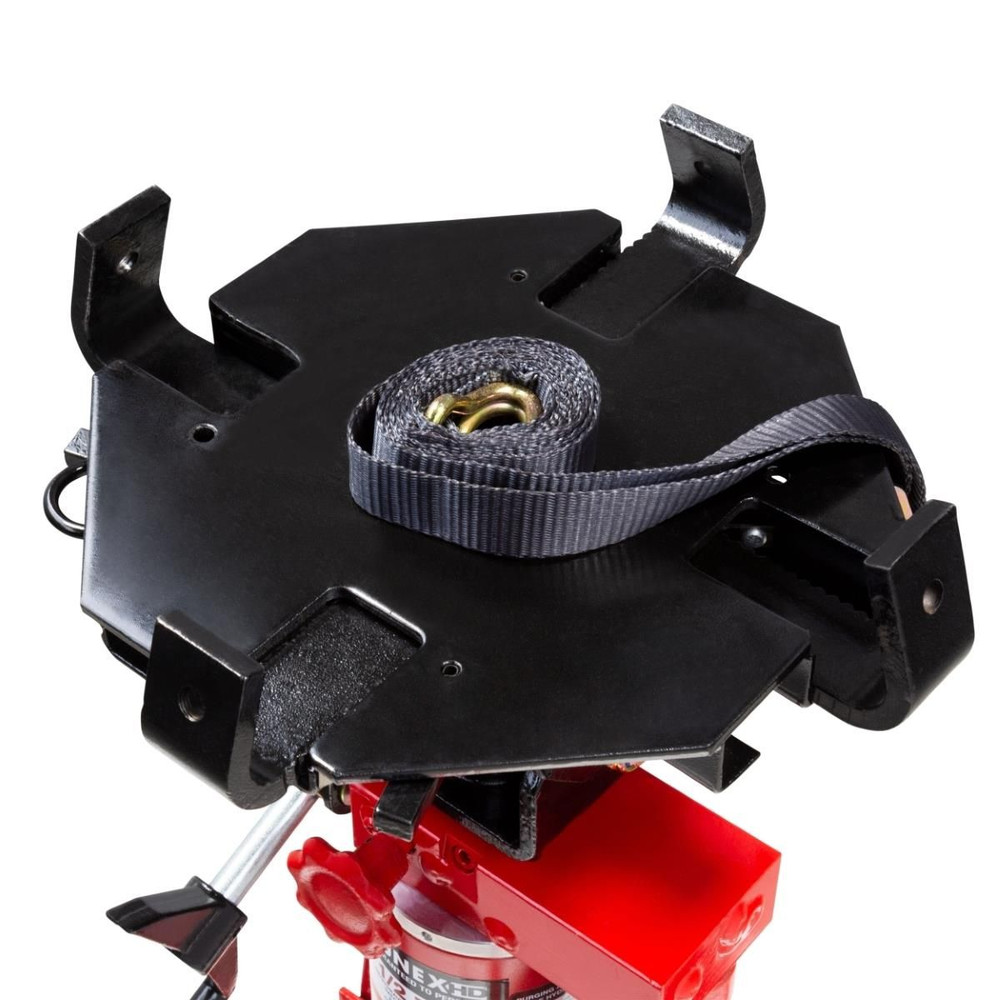

• Secure Load Restraint: Tie-down strap helps secure the transmission to the saddle during lifting, lowering, and positioning.
• Controlled Lowering: Release valve knob allows technicians to control the lowering of the transmission.
• Wide, Stable Base: 30-1/4" square base provides stability while supporting and positioning transmission components.

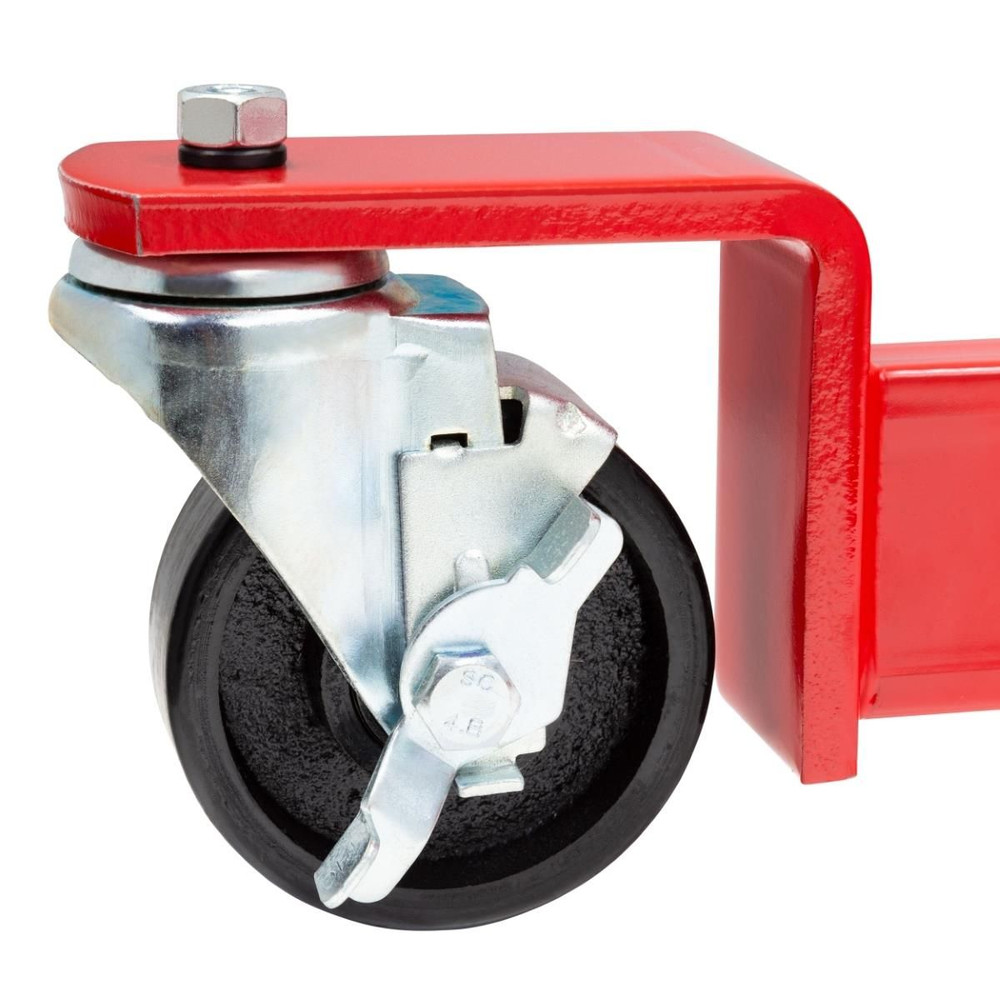

• Four Swivel Casters: Provide maneuverability around the shop and underneath vehicles, with locking casters to help secure the jack in position.
• 100 PSI Shop Air Operation: Air-activated first stage operates with regulated shop air at 100 psig.
• 1-Year Limited Warranty: Backed by Sunex Tools' manufacturer's warranty.

Sunex 7796 Specifications

What's Included

• Sunex 7796 1,000 lb Air/Hydraulic Telescopic Transmission Jack
• Adjustable Transmission Saddle with Four Ratcheting Arms
• Transmission Tie-Down Strap
• Air-Operated Foot Pedal and Hydraulic Pump Handle
• Four Swivel Casters
• Operating Instructions

Professional Air/Hydraulic Transmission Service

The Sunex 7796 is designed for automotive repair shops and service facilities that require a high-lift transmission jack with both air-powered and manual hydraulic operation. Its two-stage lifting system, adjustable saddle, and 1,000 lb capacity provide the flexibility needed for removing, installing, and positioning transmissions and other compatible drivetrain components.

With its 35" to 73.5" lift range, foot-operated air lift, adjustable transmission saddle, and wide, stable base, the Sunex 7796 Air/Hydraulic Telescopic Transmission Jack provides a versatile solution for professional automotive transmission service.
