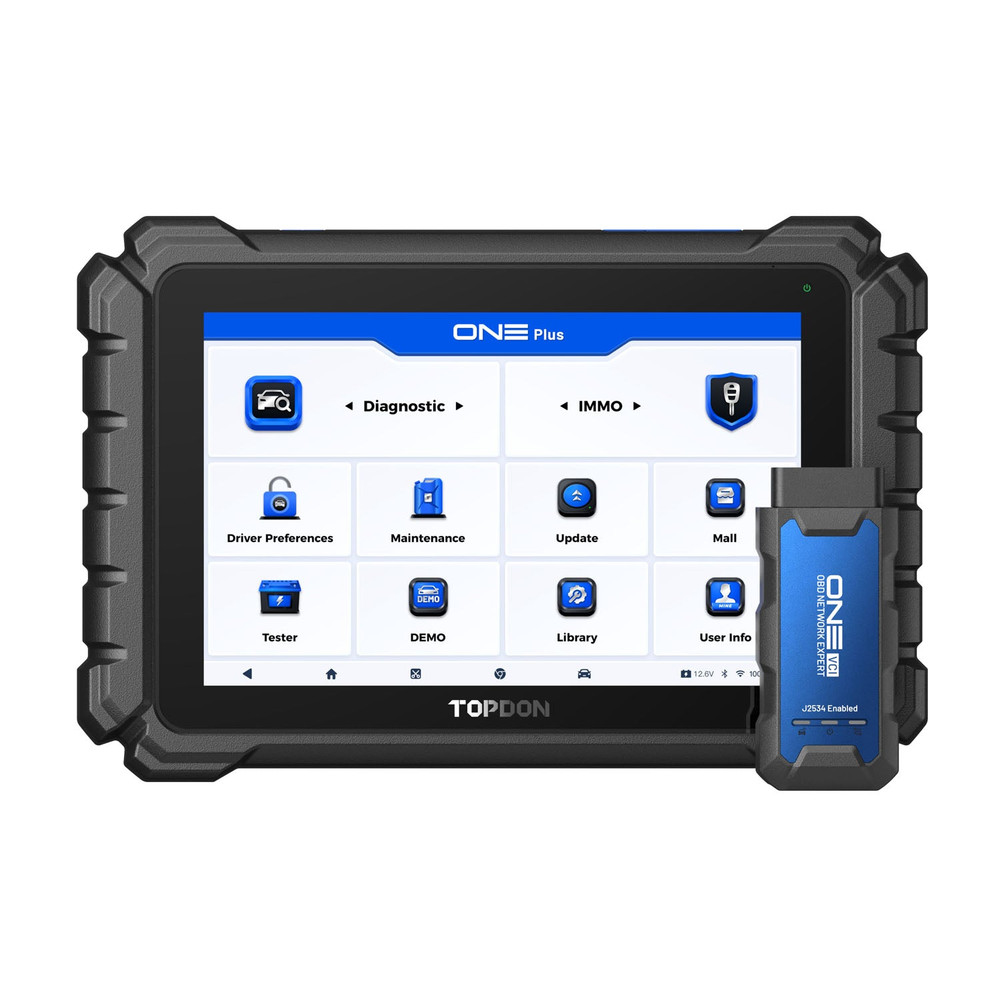

TOPDON ONE Plus Professional Diagnostic Tool with J2534 Pass-Thru

The TOPDON ONE Plus Professional Diagnostic Tool with J2534 Pass-Thru is an advanced 10.1-inch automotive diagnostic platform designed for professional repair shops and diagnostic technicians. Combining OE-level full-system diagnostics, bi-directional controls, ECU programming, ECU coding, J2534 pass-thru capabilities, 50+ service functions, topology mapping, and TopFix AI-powered repair guidance, the ONE Plus gives technicians the advanced capabilities needed to diagnose and service today's increasingly complex vehicles.

The TOPDON ONE Plus expands shop capabilities with built-in ECU programming for compatible BMW and VAG vehicles, ECU coding for 10+ brands, and J2534 pass-thru support for use with compatible OEM software on a Windows PC. Its high-speed Wi-Fi VCI provides fast vehicle communication, while support for CAN-FD, DoIP, and modern security gateways helps technicians service newer vehicle platforms. The ONE Plus kit also includes a TopScan Master Bluetooth diagnostic tool and BTMobile ProS battery and electrical system tester for additional diagnostic flexibility.

TOPDON ONE Plus Features & Benefits

• OE-Level Full-System Diagnostics: Scan supported vehicle systems, read and clear diagnostic trouble codes, access ECU information, view live data, and perform advanced diagnostic procedures.
• 4-System ECU Programming for BMW & VAG: Perform supported ECU programming for ECM, TCM, SRS, and ABS systems on compatible BMW and VAG vehicles, including blank ECU programming, software updates, ECU data recovery, and ECU data backup.
• ECU Coding for 10+ Brands: Perform supported component matching, feature activation and deactivation, coding, and vehicle configuration on brands including BMW, Mercedes-Benz, VAG, Nissan, Toyota, and others.
• J2534 Pass-Thru Programming: Use the ONE Plus VCI as a professional J2534 pass-thru device with compatible OEM diagnostic software on a Windows PC. Supports 14 vehicle brands for OEM-level diagnostics and reprogramming. OEM software, subscriptions, and credentials are purchased separately. DoIP system diagnostics are not supported when the VCI is used with OEM software.
• OE-Level Topology Mapping: View supported vehicle ECU networks on a single screen with color-coded system status and DTC information to quickly identify modules with faults and communication problems.
• TopFix AI Diagnostic Intelligence: Integrated AI-assisted diagnostics analyze trouble codes and provide repair guidance and technical resources to help technicians identify potential root causes and repair paths faster.
• Bi-Directional Controls: Command supported vehicle components and actuators directly from the diagnostic tablet to test system operation and help isolate faults.
• 50+ Service Functions: Perform common resets, adaptations, calibrations, relearns, and maintenance procedures across supported vehicles.
• Advanced Live Data: Monitor up to 12 live data parameters simultaneously with multiple graphing and combined display options to compare sensor readings, identify irregular patterns, and diagnose intermittent faults faster.
• One-Click Vehicle Customization: Access supported driver-preference and personalization functions for 7+ brands to quickly configure compatible vehicle features.
• Integrated IMMO Functions: Perform supported key-related services for compatible Asian and domestic vehicles, including adding new keys, all-keys-lost programming, and deleting old keys. VSP credentials are required for applicable key programming functions.
• High-Speed Wi-Fi VCI: Wireless vehicle communication provides fast data transfer and ECU communication without requiring a wired connection between the tablet and vehicle.
• CAN-FD & DoIP Support: Built-in support for modern vehicle communication protocols provides compatibility with newer vehicle platforms without requiring additional protocol adapters on supported vehicles.
• Security Gateway Support: Provides authorized access to supported FCA SGW, VAG SFD, and Renault/Nissan protected vehicle systems. OEM credentials may be required where applicable.
• 10.1-Inch Touchscreen: Large 1280 x 800 display provides a clear interface for topology mapping, diagnostics, live data, ECU coding, and service procedures.
• TopScan Master Included: Adds portable Bluetooth smartphone diagnostics with bi-directional control capabilities for supported vehicles.
• BTMobile ProS Included: Provides 12V battery and electrical system testing capabilities for convenient battery health, starting, and charging-system analysis.
• 2 Years of Software Updates Included: Includes two years of diagnostic software updates to maintain and expand supported vehicle coverage and functionality.

Advanced ECU Programming & Coding

The TOPDON ONE Plus helps professional repair shops bring more advanced vehicle services in-house. For compatible BMW and VAG vehicles, the tool supports ECU programming across four core systems: ECM, TCM, SRS, and ABS. Supported operations include blank ECU programming, software updates, ECU data recovery, ECU data backup, and other module-related procedures.

ECU coding is a separate capability from ECU programming. The ONE Plus supports ECU coding for 10+ brands, allowing technicians to perform supported component matching, activate or deactivate vehicle functions, configure compatible replacement modules, and make supported vehicle customizations.

J2534 Pass-Thru Programming

The included ONE Plus VCI can also function as a J2534 pass-thru device when connected to compatible OEM diagnostic software running on a Windows PC. TOPDON currently specifies J2534 support for 14 vehicle brands, allowing professional repair shops to use applicable manufacturer software for supported OEM diagnostics and module reprogramming.

Important: J2534 pass-thru programming is separate from the ONE Plus tablet's built-in ECU programming capabilities. Compatible OEM software, subscriptions, programming files, and manufacturer credentials are purchased separately and may be required depending on the vehicle and procedure. DoIP system diagnostics are not supported when the ONE Plus VCI is being used with OEM software.

TOPDON ONE Plus Specifications

What's Included

• TOPDON ONE Plus Diagnostic Tablet
• ONE Plus Wireless VCI with J2534 Pass-Thru Capability
• TopScan Master Bluetooth Diagnostic Tool
• BTMobile ProS Battery & System Tester
• Charger
• Diagnostic Extension Cable
• USB-C to USB-C Cable
• USB-A to USB-C Cable
• Quick User Guide
• Packing List
• Carrying Case
• 2 Years of Software Updates

Professional Diagnostics for Modern Repair Shops

The TOPDON ONE Plus Professional Diagnostic Tool with J2534 Pass-Thru is designed for repair facilities that need capabilities beyond conventional code reading and service resets. Its combination of OE-level full-system diagnostics, bi-directional controls, topology mapping, built-in ECU programming, ECU coding, J2534 pass-thru capabilities, and TopFix AI-assisted repair guidance helps technicians diagnose complex vehicle problems and perform more advanced repairs in-house.

With support for modern CAN-FD and DoIP protocols, security gateway access, high-speed Wi-Fi vehicle communication, 50+ service functions, and two years of software updates included, the ONE Plus provides a comprehensive professional diagnostic platform for servicing today's increasingly sophisticated vehicles.

Vehicle coverage and availability of ECU programming, ECU coding, J2534 pass-thru programming, bi-directional controls, IMMO, security gateway, service, and special functions vary by manufacturer, model, model year, and installed control modules. Certain functions require an active internet connection, including Topology Mapping, ECU Coding, One-Click Customization/Driver Preference, TopFix AI, Security Gateway Support, and the latest vehicle and software updates. OEM software, subscriptions, credentials, or additional manufacturer requirements may apply. Verify specific vehicle coverage before purchase.
