Atlas XH-TPF-9 9,000 lb. Capacity Baseplate 2-Post Lift

Features and Benefits:

• 9,000 lb. Capacity
• Baseplate, Open Top design
• Overall Height: 111 1/2" (9' 3 1/2")
• Symmetric Arms
• Automatic Arm Restraints
• Dual-Point Lock Release
• Rubber Guards on Carriages
• Dual Hydraulic Chain-Drive Cylinders
• Secondary Lock System
• Adjustable Screw-Up Adapters Included
• Free 4 Piece Truck Adapter Set
• Free set of Sliding Arm Adapters
• Mounting Hardware Included

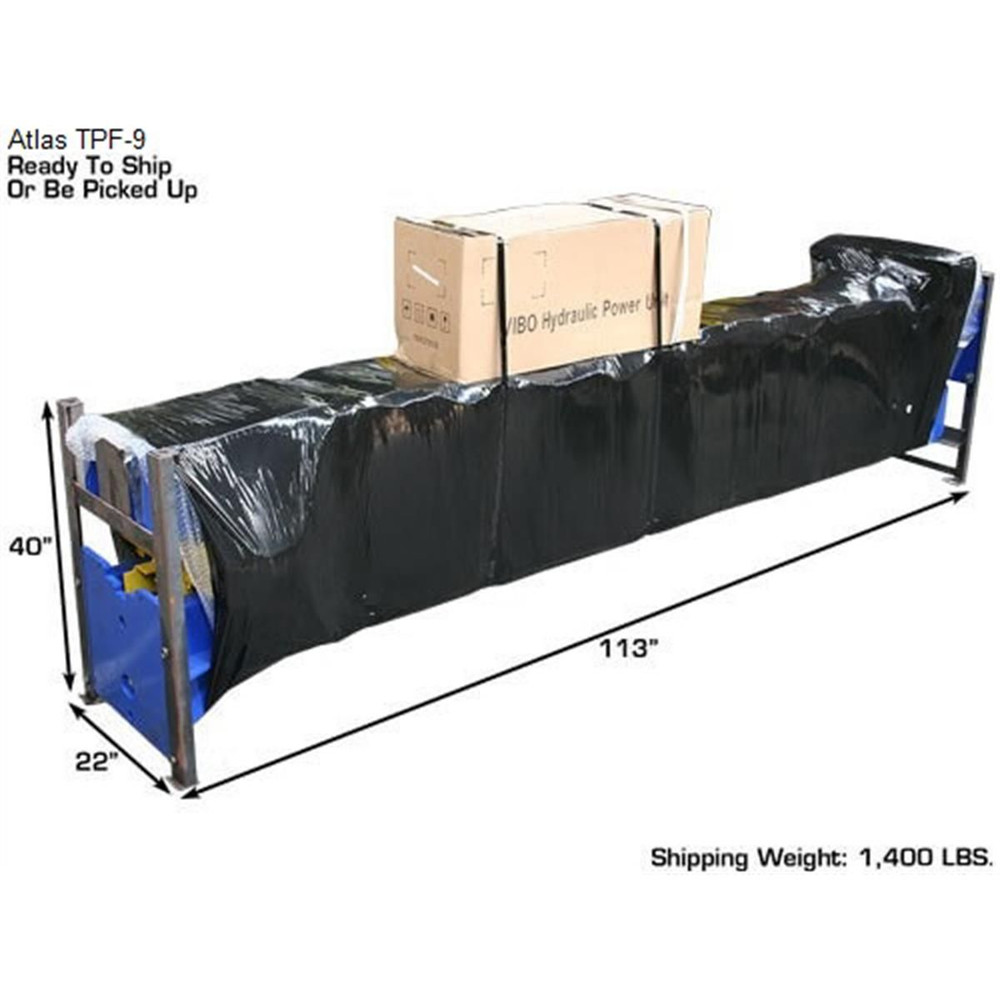

• Shipping Weight: 1,400 lbs.
• 2 yr Structural ‐ 1 yr Hydraulic Warranty ‐ Parts Only
• This part number FREIGHT PREPAID

The light duty Atlas® TPF-9 lift is an economically designed baseplate 2-post lift. The reliable chain-drive cylinders and dual safety system make this the perfect choice for “Mr. Homeowner” or small commercial shops looking to service cars, SUV's and light duty trucks. The TPF-9 has an overall height under 9 feet 4 inches. The Atlas® TPF-9 has symmetric columns and symmetric arms. The low pad height will allow the operator to position the lift arms under most small cars (with low pick-up points) and heavier pickup trucks. The Atlas® TPF-9 two post “chain over roller” lifts have a spring-loaded Secondary Lock System (SLS) that automatically engages in the event of a slack or broken chain.

Specifications:

• Capacity 9,000 LB.
• Overall Height 111 1/2” (9' 3 1/2")
• Overall Floor Width 133 1/2" (11' 1 1/2")
• Maximum Lift Height (Without Adapters) 76 1/2"
• Maximum Lift Height (With Adapters) 79 1/2"
• Minimum Arm Height 4"
• Inside Column 111 3/8” (9' 2 3/8”)
• Drive Thru 98 1/2” (8' 2 1/2”)
• Column Size 7 1/4" x 11"
• Column Thickness of Steel 5mm
• Base Of Lift 14 1/4" x 18"
• Motor/Electrical Requirement 220 volt single (1) phase. (A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
• Shipping Weight 1,400 LBS.
• Adapter Heights 4 Each 2.75"
• Arm Hole/Adapter Peg Size 2”
• Requires a minimum of 4" of concrete with a 3000 psi. rating
