Coats 90C Center Clamp Tire Changer

The Coats 90C Center Clamp Tire Changer combines fast, professional tire-changing performance with a center-clamp design and leverless mount/demount technology. Designed for passenger car and light truck applications, the 90C provides the tools technicians need to efficiently service today's low-profile, run-flat, and other challenging tire assemblies while helping reduce the risk of wheel damage.

The 90C features Coats' center locking clamp, Leverless Duckhead® mount/demount tool, Robo-Arm® bead depressor, RoboRoller® assist system, hand-controlled bead loosener, and Auxiliary Bead Sealer. With a 12" to 30" external rim diameter range, capacity for tires up to 50" in diameter, and support for rims up to 15" wide, the 90C is a versatile premium tire changer for busy tire shops, dealerships, and professional automotive service facilities.

Features and Benefits:

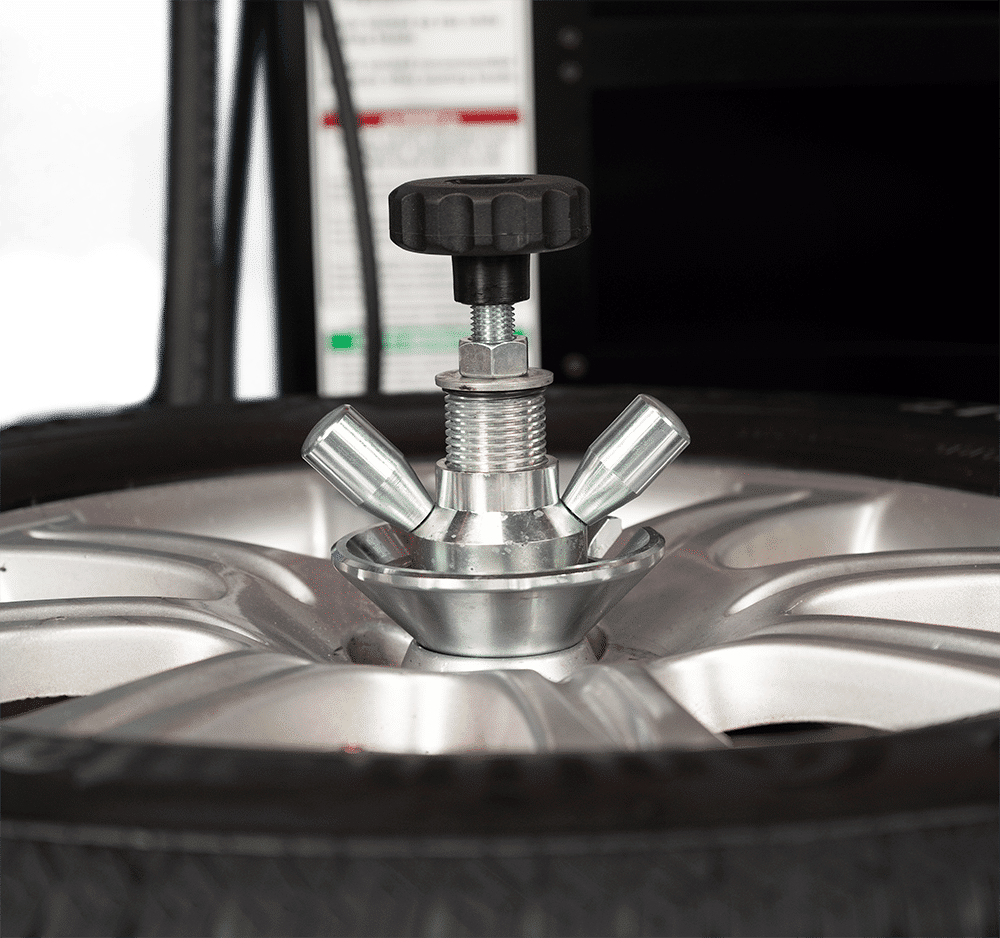

• Center Locking Clamp Design: The easy-to-use center locking mechanism provides fast, secure wheel clamping while helping minimize metal-to-metal contact with customer wheels.
• Leverless Duckhead® Mount/Demount Tool: Lifts the tire bead without requiring a traditional tire bar, making difficult tire service easier while helping reduce the risk of rim damage.
• Robo-Arm® Bead Depressor: Applies pressure to the tire bead to help keep it in the drop center during mounting and provides valuable assistance when servicing difficult low-profile and run-flat tires.
• RoboRoller® Assist: Helps keep the tire bead in the drop center and prevents it from rolling back over the mount tool during difficult mounting procedures.

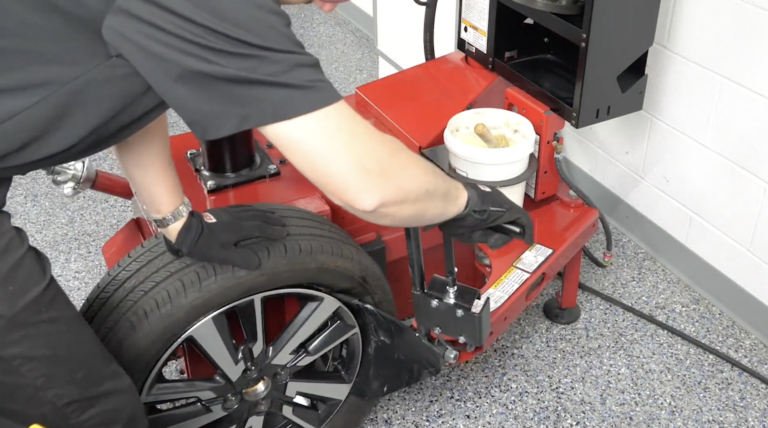

• Hand-Controlled Bead Loosener: Point-of-use controls give the technician a direct line of sight during bead loosening, helping improve control and reduce the risk of wheel damage.

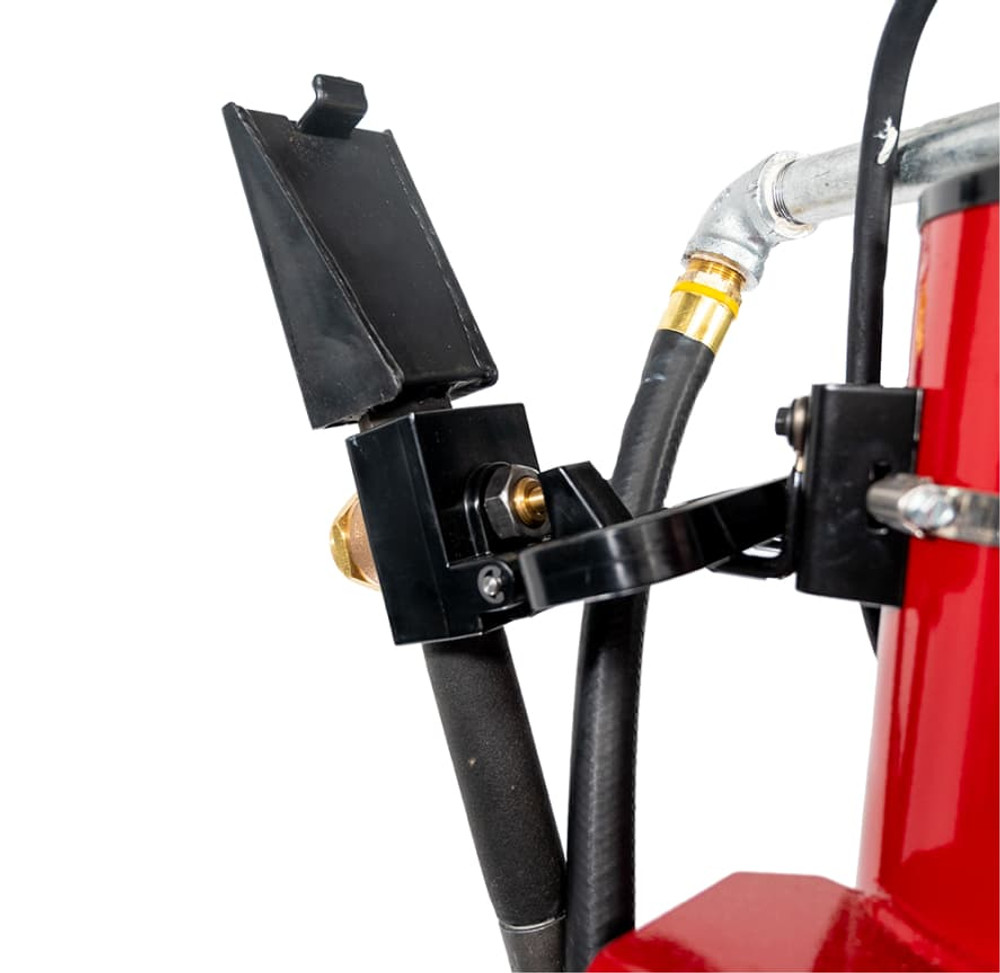

• Auxiliary Bead Sealer: Concentrates airflow where it is needed to help efficiently seal difficult tire beads.
• 12" to 30" External Rim Capacity: Accommodates a wide range of passenger car and light truck wheels.
• Handles Tires Up to 50" in Diameter: Provides the capacity required for a broad range of automotive and light truck tire applications.
• Handles Rims Up to 15" Wide: Offers additional versatility for wider wheel and tire assemblies.
• Anti-Rotation Extension Pin: Helps securely position the wheel during tire-changing procedures.
• Air or Electric Drive Options: Available with either a powerful 2 HP, 220V electric motor or 1.5 HP air motor to accommodate different shop requirements.
• Heavy-Duty Professional Construction: Designed for dependable operation in demanding tire service environments.

Specifications:

Included Accessories:

• Auxiliary Bead Seater (ABS) – Part #85606545
• Bead Loosener Shoe Socks (2) – Part #8183606
• Paste Lube Bracket & Brush – Part #85009048
• Protection Cone for Center Lock (2) – Part #83019057
• Leverless Duckhead® Mount/Demount Tool Plastic Inserts – Part #89233409
• Paste Lube – Part #8183710
• Light Truck Cone Kit, 5.86" Center Bore – Part #83032475
• Rubber Protection Pads (2) – Part #89231517
• Premium Storage Cabinet – Part #85610105
• Reverse Mount Adapter – Part #85612559

Available Models:

• 80090CAH3: Coats 90C Air Tire Changer – 1.5 HP Air Motor
• 80090CEH220: Coats 90C Electric Tire Changer – 2 HP, 220V

Recommended Optional Accessories:

• Manual Drop Center Tool – Part #8435685
• Point-of-Use Lift System – Part #85608609
• EL-X Express Lane® Inflation System – Part #85607770

Why Choose the Coats 90C?

The Coats 90C is designed for professional shops that regularly service modern, difficult tire and wheel assemblies and want the added wheel protection of center clamping combined with leverless tire-changing technology. The center clamp securely holds the wheel while helping minimize metal-to-metal contact, and the Leverless Duckhead® eliminates the need for a traditional tire bar during the mount/demount process.

For challenging low-profile and run-flat tires, the combination of the Robo-Arm® and RoboRoller® provides additional assistance keeping the tire bead in the drop center and controlling the tire throughout the mounting process. Together with the hand-controlled bead loosener and Auxiliary Bead Sealer, these features make the 90C a strong choice for high-quality professional tire service.
