Coats Maxx 80 Rim Clamp Tire Changer

The Coats Maxx 80 Rim Clamp Tire Changer is a high-performance professional tire changer designed for high-volume tire dealers, repair shops, dealerships, and automotive service centers. As Coats' most popular tire changer, the Maxx 80 combines powerful drive options with Robo-Arm®, RoboRoller®, Grip Max 2.0 clamps, dual-mode bead loosening, and a high-pressure dual-nozzle bead sealing system to provide the capability and productivity needed for demanding everyday tire service.

With a 6" to 24" external clamping range, capacity for tires up to 50" in diameter, and support for rims up to 16" wide, the Maxx 80 provides excellent versatility for passenger car and light truck applications. Optional extended clamps increase wheel service capability up to 30", while advanced helper systems provide additional control when servicing low-profile, run-flat, and other challenging tire assemblies.

Features and Benefits:

• 6" to 24" External Clamping Range: Accommodates a broad range of passenger car and light truck wheels, with optional extended clamps available for wheel service up to 30".

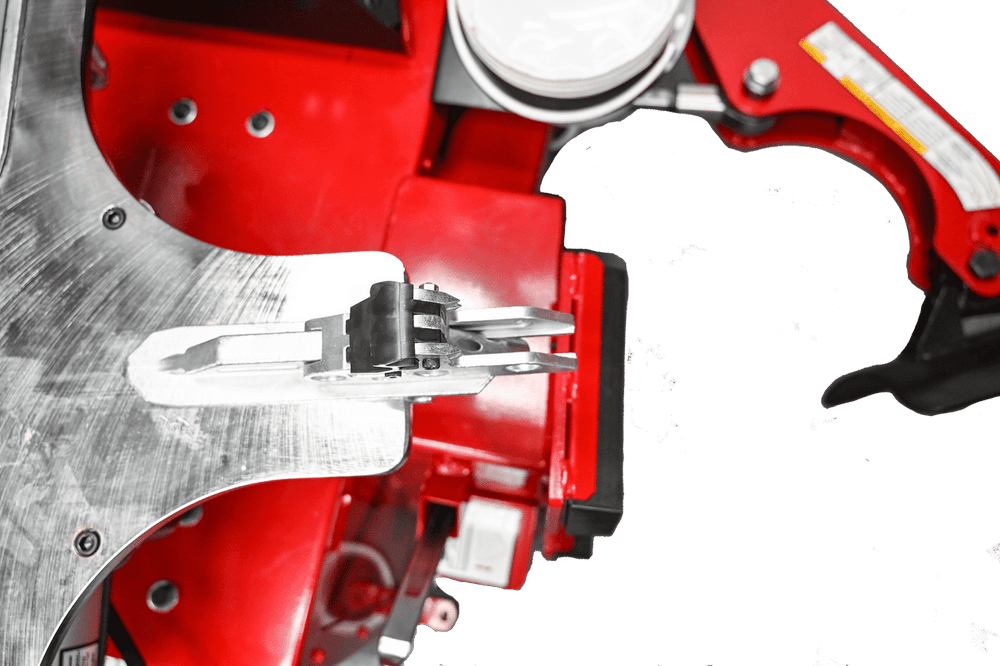

• Robo-Arm® Helper System: This articulating assist applies direct pressure to the tire bead to create a bead lock and help keep the bead in the drop center during mounting. It provides valuable assistance with difficult low-profile and run-flat tires and can also help lift heavy tires when dismounting the bottom bead.
• RoboRoller® Helper System: The bead depressor helps keep the tire bead in the drop center and prevents it from rolling back over the mount tool during challenging mounting procedures.

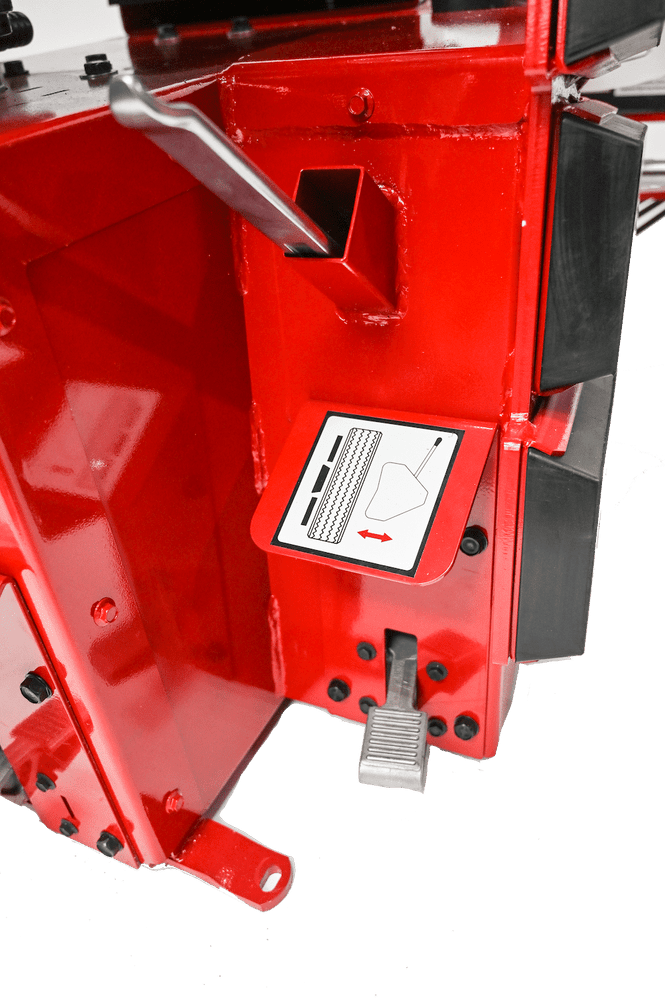

• Hand or Foot-Controlled Bead Loosening: Gives technicians the choice between fast foot-pedal operation and the added precision and visibility of hand-controlled bead loosening.

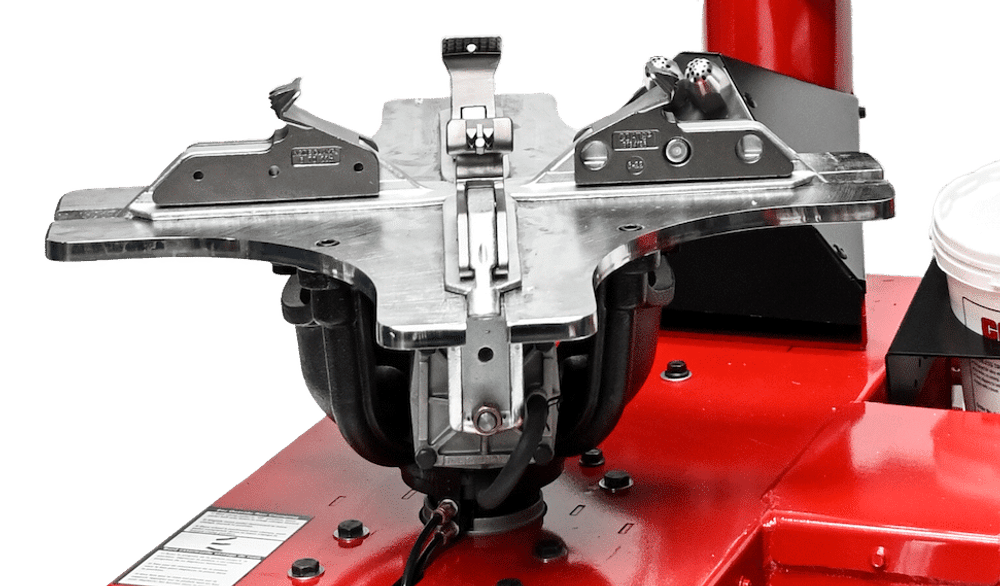

• Grip Max 2.0 Clamps: Built-in plastic protection helps eliminate metal-to-metal contact with the wheel while providing secure grip and helping minimize the risk of rim damage.
• High-Pressure Dual-Nozzle Bead Sealing: Two powerful jets concentrate airflow to help quickly and efficiently seal difficult tire beads.
• Swing-Away Arm with Nylon Duckhead: Provides a proven mount/demount system for efficient professional tire service.
• 50" Maximum Tire Diameter: Provides the capacity required for a broad range of passenger car and light truck tire applications.
• 16" Maximum Rim Width: Accommodates wide tire and wheel assemblies for increased service versatility.
• Multiple Power Options: Choose from 110V electric, 220V electric, 220V two-speed electric, or air-powered configurations to match your shop's requirements.
• Optional Extended Clamps: Increase wheel service capability up to 30" for shops that regularly service larger custom wheels.
• Optional Integrated Wheel Lift: Factory-installed wheel lift configurations help technicians load and unload heavy tire and wheel assemblies while reducing physical strain.
• Built for High-Volume Service: The robust Maxx platform is engineered for dependable operation in demanding professional tire-service environments.
• Designed and Built in the USA: The Maxx Series is designed and manufactured by Coats for professional tire service.

Specifications:

Included Accessories:

• Bead Loosener Shoe Socks (2) – Part #8183606
• Paste Lube Bracket & Brush – Part #85009048
• Polymer Duckhead – Part #8183061
• High Spoke Duckhead® Mount/Demount Tool – Part #8184432
• Steel Duckhead® Mount/Demount Tool – Part #8182788
• Grip Max 2.0 Clamps (4) – Part #85612106
• Steel Clamps – Part #8184126EX
• Lift Tool Socks (10) – Part #85000783
• Premium Storage Cabinet – Part #85610105

Available Models:

• 800MAXX80: Maxx 80 – 110V Electric
• 800MAXX80L: Maxx 80 – 110V Electric with Wheel Lift
• 800MAXX80220: Maxx 80 – 220V Electric
• 800MAXX80220L: Maxx 80 – 220V Electric with Wheel Lift
• 800MAXX802SPD: Maxx 80 – 220V 2-Speed Electric
• 800MAXX802SPDL: Maxx 80 – 220V 2-Speed Electric with Wheel Lift
• 800MAXX80A: Maxx 80 – Air
• 800MAXX80AL: Maxx 80 – Air with Wheel Lift

Optional Wheel Lift:

Maxx 80 models equipped with the factory-installed Coats Wheel Lift make it easier to handle large and heavy tire and wheel assemblies. The foot-pedal-operated lift raises the assembly to the approximately 29" tabletop height and can support wheel assemblies weighing up to 150 lbs. at 150 PSI. This helps reduce technician lifting and can improve ergonomics and productivity when servicing heavier wheel assemblies.

Why Choose the Coats Maxx 80?

The Coats Maxx 80 is an excellent choice for high-volume tire dealers and automotive repair shops that want a powerful, versatile rim-clamp tire changer equipped with the helper systems technicians need for today's challenging tire assemblies. Coats positions the Maxx 80 as its most popular tire changer, combining strong performance, extensive standard equipment, and multiple power configurations for professional tire service.

The combination of Robo-Arm® and RoboRoller® provides additional control over difficult tire beads and helps technicians service low-profile and run-flat tires more efficiently. Grip Max 2.0 clamps help securely hold the wheel while minimizing metal-to-metal contact, while hand- or foot-controlled bead loosening allows technicians to choose the method that best fits each job.

With multiple power configurations, optional wheel lift models, and optional extended clamps for wheel service up to 30", the Coats Maxx 80 provides an excellent combination of power, versatility, wheel protection, and technician-assist features for demanding professional tire service.
