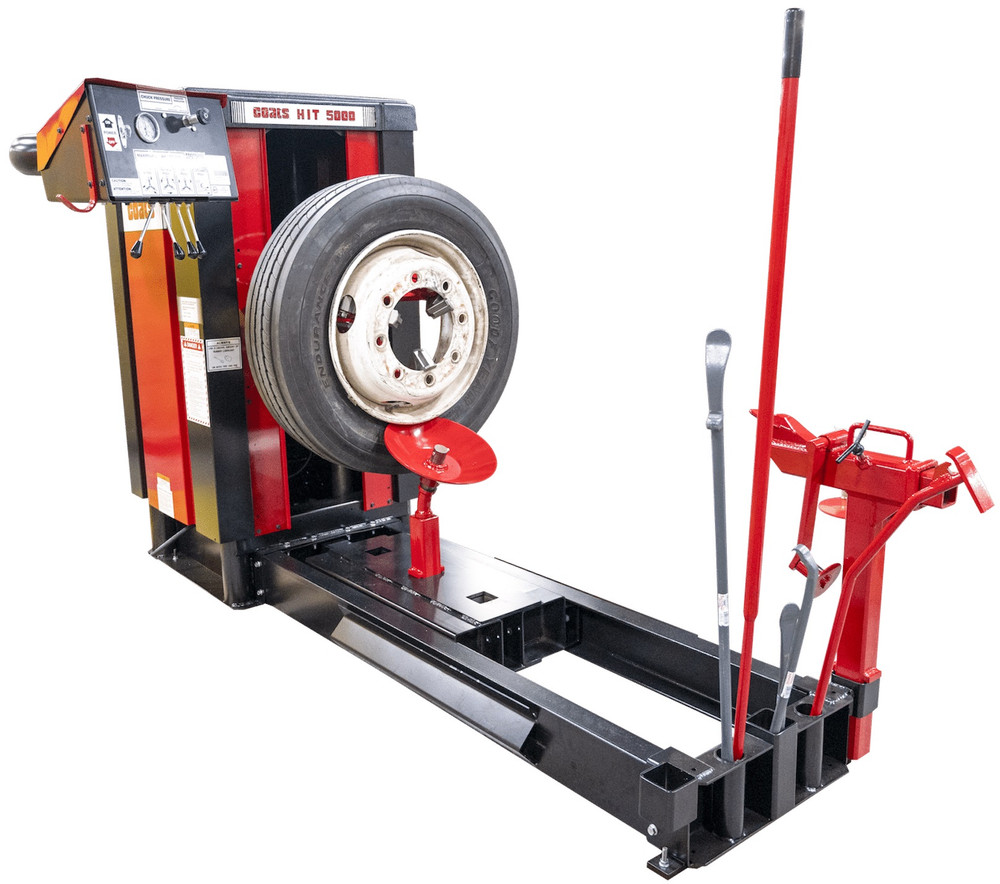

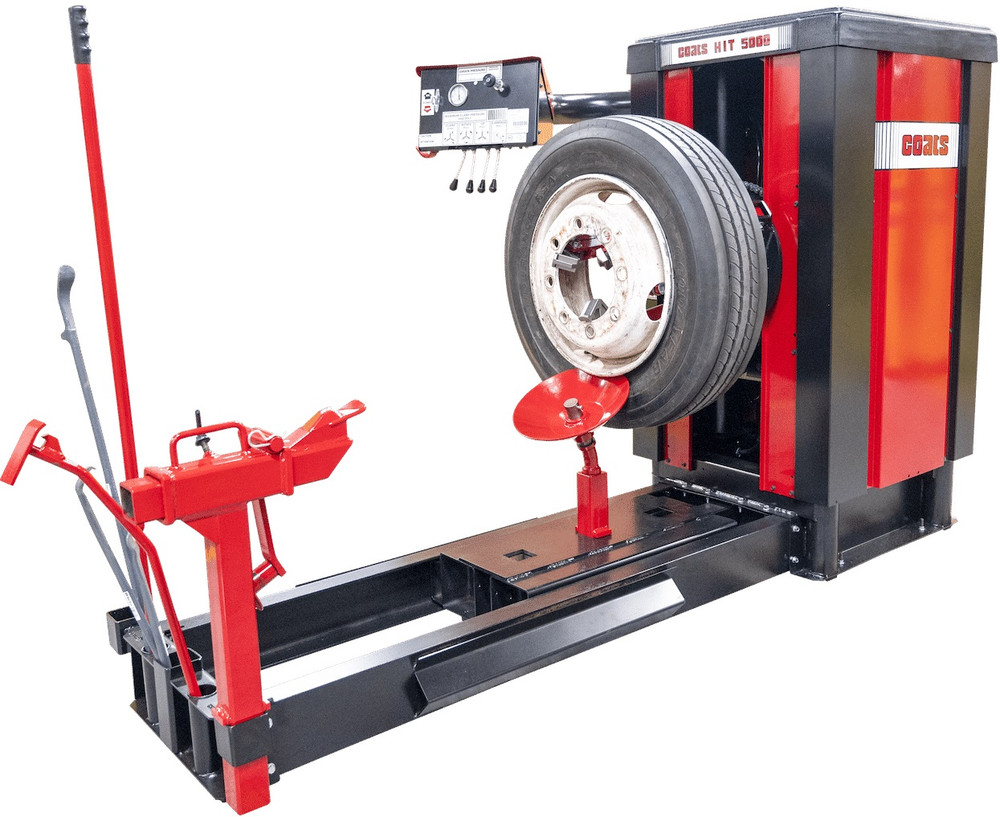

Coats HIT 5000 Heavy Duty Tire Changer

The Coats HIT 5000 Heavy Duty Tire Changer is a professional electro-hydraulic tire changing machine designed for commercial truck tire shops, agricultural equipment dealers, fleet maintenance facilities, and industrial tire service centers. Featuring a self-centering three-jaw hydraulic chuck, independent hook-and-roller mounting system, and convenient swing-arm hydraulic controls, the HIT 5000 delivers dependable performance for demanding heavy-duty tire service applications.

Designed to service both tube-type and tubeless tires, the Coats HIT 5000 accommodates rim diameters from 15" to 38", with optional configurations for larger rims. The machine handles tires up to 76" in diameter and widths up to 25", making it suitable for a wide range of commercial truck, agricultural, industrial, and off-road tire applications.

The HIT 5000 combines a powerful hydraulic clamping system with a moving center carriage and heavy-duty mounting tools. Its self-centering chuck, adjustable clamping pressure, and independently positioned tools provide the versatility needed to service different wheel configurations efficiently.

Features and Benefits:

• 76" Maximum Tire Diameter: Accommodates oversized commercial truck, agricultural, industrial, and off-road tire assemblies.
• 25" Maximum Tire Width: Provides substantial capacity for heavy-duty tire service applications.
• 15" to 38" Rim Diameter Range: Handles a wide range of compatible commercial truck and industrial wheel sizes.
• Three-Jaw Hydraulic Clamping Chuck: Self-centering hydraulic chuck securely holds compatible wheel assemblies during mounting and demounting.
• 2,900 ft-lb Maximum Chuck Torque: Provides powerful wheel rotation for demanding tire service procedures.

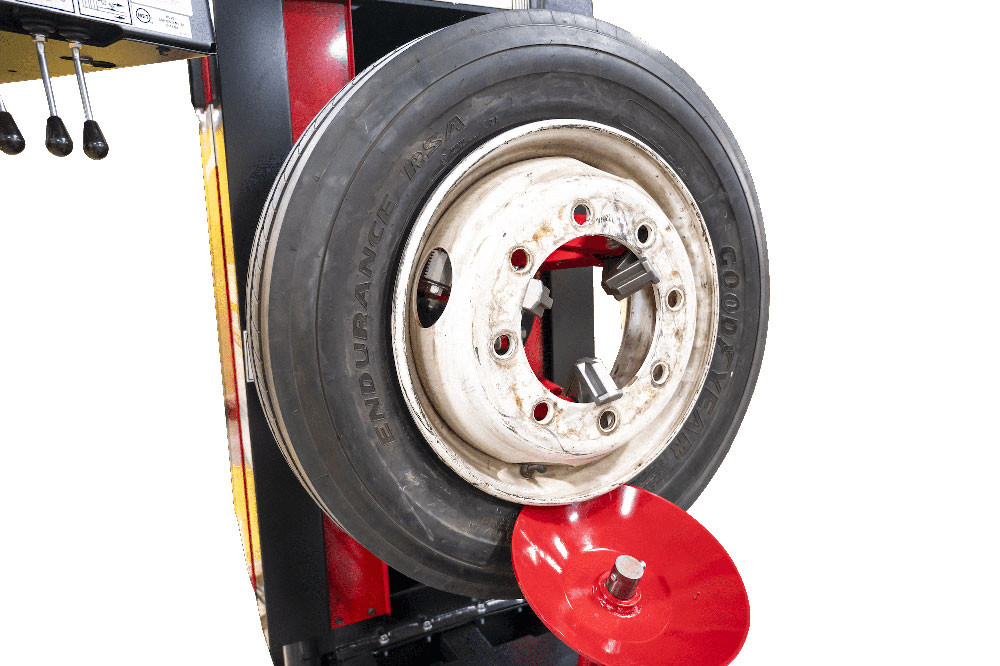

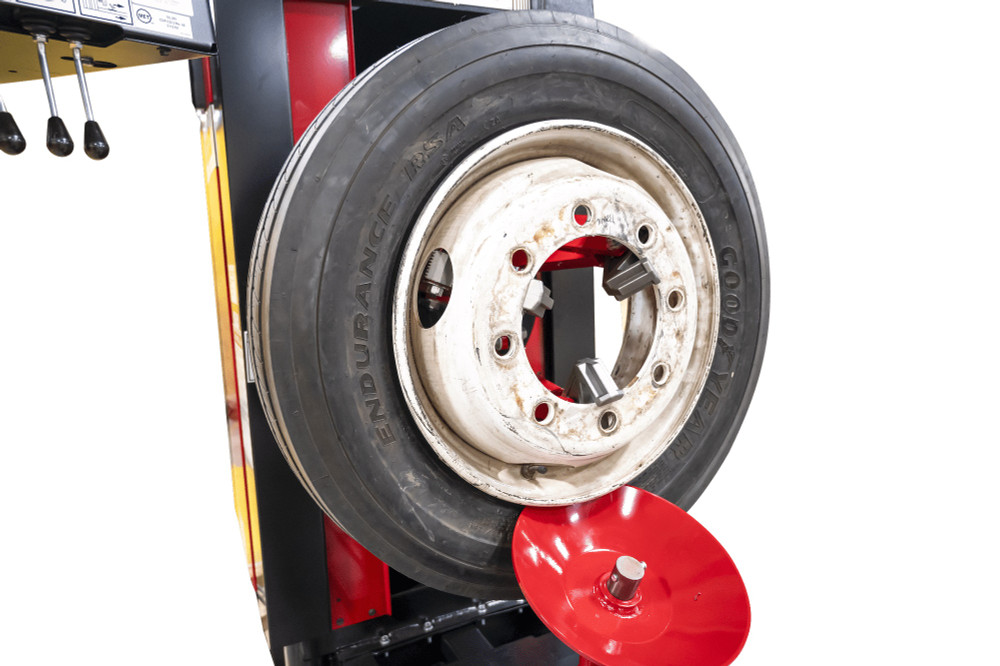

• Independent Hook-and-Roller System: Allows technicians to position mounting and demounting tools for different tire and wheel configurations.
• Swing-Arm Hydraulic Controls: Convenient control station features dedicated hydraulic levers for powered machine functions.
• Adjustable Clamping Pressure: Hydraulic pressure regulator allows technicians to adjust chuck pressure for different rim constructions.
• Dual-Direction Hydraulic Motor: Provides controlled wheel rotation in either direction.
• Heavy-Duty Tapered Roller Bearings: Support smooth chuck operation and dependable torque delivery.
• Hydraulic Wheel Lifting: Clamping arm raises and positions compatible heavy wheel assemblies during service.
• Moving Center Carriage: Provides controlled positioning of the tire and mounting tools.
• Tube-Type and Tubeless Tire Compatibility: Supports a wide range of commercial and industrial tire service applications.
• Budd and Dayton Wheel Compatibility: Designed for compatible stud-piloted, hub-piloted, and Dayton-style wheel assemblies.
• Integrated Tire Spreading Capability: Standard roller-type tire spreader assists with tire inspection and service procedures.
• No Compressed Air Required: Hydraulic operation eliminates the need for an external compressed-air supply for machine functions.
• Single-Phase or Three-Phase Power Options: Available electrical configurations provide flexibility for different shop installations.
• Heavy-Duty Construction: Built for demanding commercial tire service environments.

Specifications:

Standard Equipment and Accessories:

• Coats HIT 5000 Heavy Duty Tire Changer
• Self-Centering Three-Jaw Hydraulic Clamping Chuck
• Independent Hook-and-Roller Mounting/Demounting System
• Swing-Arm Hydraulic Control Station
• Standard Roller-Type Tire Spreader
• Earth Mover Bead Loosener Roller Shaft – Part #7110652
• Lock Ring Tool – Part #7109343
• Drop Center Iron – Part #7109344
• Bead Starting Tool – Part #7109345
• Vise Grip Clamp – Part #7109346
• Stud-Piloted Wheel Plate – Part #7110853

Available Optional Accessories:

• Jaw Extensions – Part #7110843: Optional extensions increase the clamping range for compatible larger wheel assemblies. Confirm the required extension configuration and maximum rim diameter before ordering.
• Offset Roller Assembly – Part #7110852: Provides additional versatility when servicing wider tire applications.
• Hub-Piloted Wheel Plate – Part #8183803: Optional wheel plate for compatible hub-piloted wheel configurations.

Self-Centering Three-Jaw Hydraulic Chuck:

The Coats HIT 5000 features a self-centering three-jaw hydraulic clamping chuck designed to securely hold compatible heavy-duty wheel assemblies during tire mounting and demounting operations.

The hydraulic chuck helps technicians position and center wheels efficiently while providing secure clamping throughout the tire changing process.

An adjustable hydraulic pressure regulator allows the operator to match clamping pressure to the strength and construction of the rim, helping reduce the possibility of damage to lighter or more delicate wheel assemblies.

2,900 ft-lb Maximum Chuck Torque:

The HIT 5000 delivers up to 2,900 ft-lbs. of chuck torque, providing the rotational force needed for demanding commercial and industrial tire service applications.

Heavy-duty tapered roller bearings and a dual-direction hydraulic motor provide smooth, controlled chuck rotation during mounting and demounting procedures.

This combination of hydraulic power and robust construction makes the HIT 5000 suitable for shops servicing a wide variety of heavy-duty wheel assemblies.

Independent Hook-and-Roller Mounting System:

The Coats HIT 5000 features an independent hook-and-roller mounting and demounting system that provides flexibility when working with different tire and wheel configurations.

The independently positioned tools allow technicians to perform bead loosening, mounting, and demounting operations using the appropriate tool arrangement for the application.

This system is particularly useful when servicing commercial truck, agricultural, and industrial tires that require different mounting and demounting procedures.

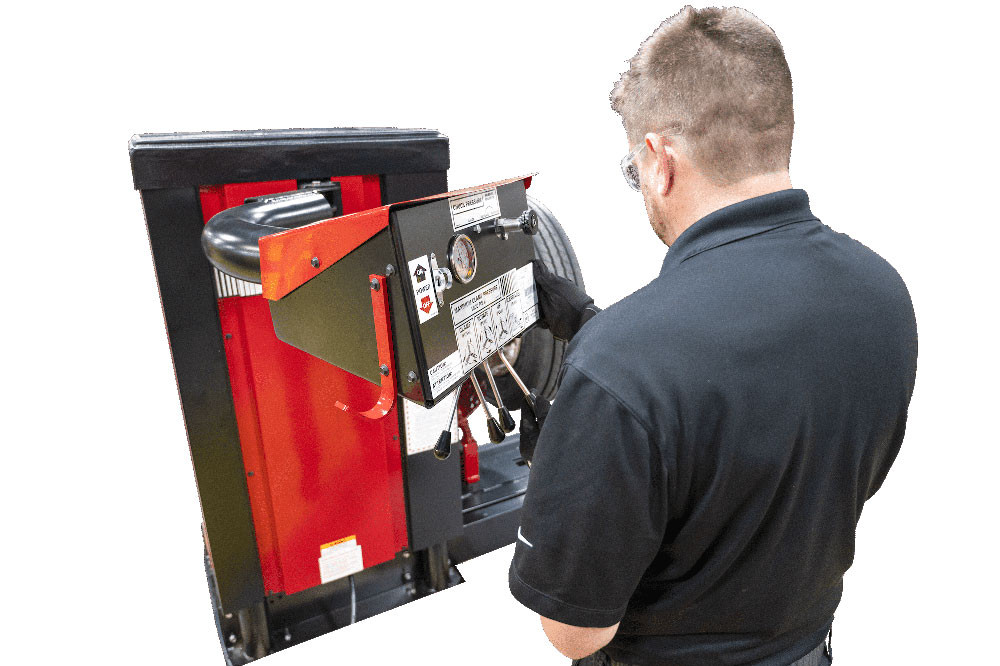

Convenient Swing-Arm Hydraulic Controls:

The HIT 5000 features a swing-arm control station that houses the machine's hydraulic controls.

Dedicated levers allow technicians to operate powered functions individually, providing straightforward control of wheel clamping, positioning, and tire service operations.

The swing-arm design helps keep controls accessible while technicians work around large wheel assemblies.

Hydraulic Wheel Lifting and Center Carriage:

The HIT 5000 uses a hydraulic clamping arm to raise and position compatible wheel assemblies during tire service.

Its center-carriage design provides a stable working platform and allows the mounting and demounting tools to be positioned relative to the wheel.

This configuration helps technicians handle large commercial and industrial tire assemblies more efficiently.

76" Maximum Tire Diameter:

The Coats HIT 5000 accommodates tire assemblies up to 76" in diameter and 25" in width, providing substantial capacity for commercial truck, agricultural, industrial, and off-road tire service.

The machine supports standard rim diameters from 15" to 38". Optional jaw extensions are available for larger compatible wheel configurations.

Actual tire and wheel compatibility depends on rim design, tire dimensions, wheel construction, and the accessories required for the application.

Tube-Type and Tubeless Tire Service:

The HIT 5000 is designed to accommodate both tube-type and tubeless tires, providing versatility for shops servicing different commercial and industrial wheel assemblies.

The machine supports compatible Budd, Dayton, stud-piloted, and hub-piloted wheel configurations, with specialized accessories available for particular applications.

Its standard tire service tools also support appropriate procedures for compatible lock-ring and multi-piece wheel assemblies when performed by properly trained technicians.

Integrated Tire Spreading Capability:

The Coats HIT 5000 includes a roller-type tire spreading system that assists technicians with applicable tire inspection and service procedures.

The spreading capability can help provide access to the interior of a tire during appropriate service operations.

No Compressed Air Supply Required:

Unlike pneumatic tire changing machines, the HIT 5000 uses an electro-hydraulic operating system that does not require an external compressed-air supply for normal machine functions.

This simplifies installation requirements for facilities that prefer hydraulically operated heavy-duty tire service equipment.

Single-Phase and Three-Phase Electrical Options:

The Coats HIT 5000 is available in 220V single-phase and three-phase electrical configurations, providing flexibility for commercial tire shops with different electrical service requirements.

Customers should confirm the exact electrical configuration, voltage, and circuit requirements for the machine being ordered before installation.

Installation Requirements:

The Coats HIT 5000 Heavy Duty Tire Changer requires adequate floor space, electrical service, and operating clearance for handling large commercial and industrial wheel assemblies.

The machine measures approximately 96"W x 108"D x 66"H. The manufacturer's operating manual specifies a working area of approximately 10 feet wide by 10 feet long with 8 feet of vertical clearance. Customers should verify that sufficient additional space is available for wheel movement, loading, unloading, and technician access.

The HIT 5000 is offered in different electrical configurations. The manufacturer's operating manual identifies 220V single-phase power with a 20-amp circuit for the configuration covered by that manual, while the current HIT Series brochure also identifies three-phase availability. Electrical requirements must be verified for the specific machine supplied.

The machine should be positioned on a relatively level, smooth floor, preferably concrete. The manufacturer's operating manual states that floor anchoring is not normally required, although mounting holes are provided if anchoring is desired.

Electrical connections must be completed by a qualified electrician in accordance with the manufacturer's instructions and applicable electrical codes.

Customers should verify delivery access and unloading equipment before purchasing. The HIT 5000 has a published shipping weight of approximately 1,400 lbs. with standard accessories.

Professional installation and operator training are recommended.

Important Tire Inflation Safety Information:

The Coats HIT 5000 is designed for tire mounting and demounting operations and must not be used as a tire inflation safety device.

Wheel assemblies must be removed from the tire changer before bead seating or inflation. Tire inflation must be performed using an appropriate approved inflation chamber or safety cage and the procedures required for the wheel assembly being serviced.

Only properly trained technicians should service heavy-duty tires, particularly multi-piece wheel assemblies and wheels equipped with lock rings.

Manufacturer Warranty:

The Coats HIT 5000 Heavy Duty Tire Changer includes a limited manufacturer warranty covering parts for one year and labor for 90 days, subject to the manufacturer's applicable warranty terms and conditions.

Warranty eligibility and coverage may depend on proper installation, registration, operation, maintenance, and compliance with the manufacturer's requirements.

Why Choose the Coats HIT 5000 Heavy Duty Tire Changer?

The Coats HIT 5000 combines powerful hydraulic operation with versatile tire mounting and demounting capabilities. Its 76" maximum tire diameter, self-centering three-jaw hydraulic chuck, 2,900 ft-lb maximum chuck torque, and independent hook-and-roller system make it an excellent choice for commercial truck tire shops, agricultural equipment dealers, and industrial tire service facilities.

With its durable construction, convenient swing-arm controls, standard heavy-duty accessories, and ability to service both tube-type and tubeless tires, the Coats HIT 5000 Heavy Duty Tire Changer provides a dependable solution for professional heavy-duty tire service operations.
