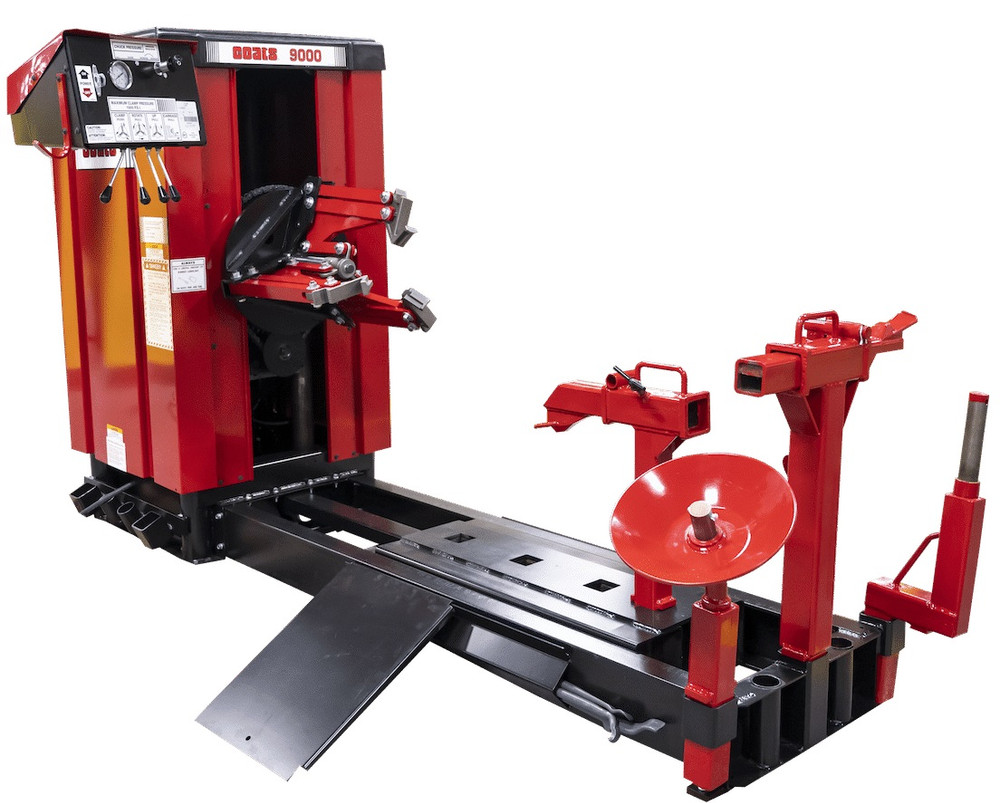

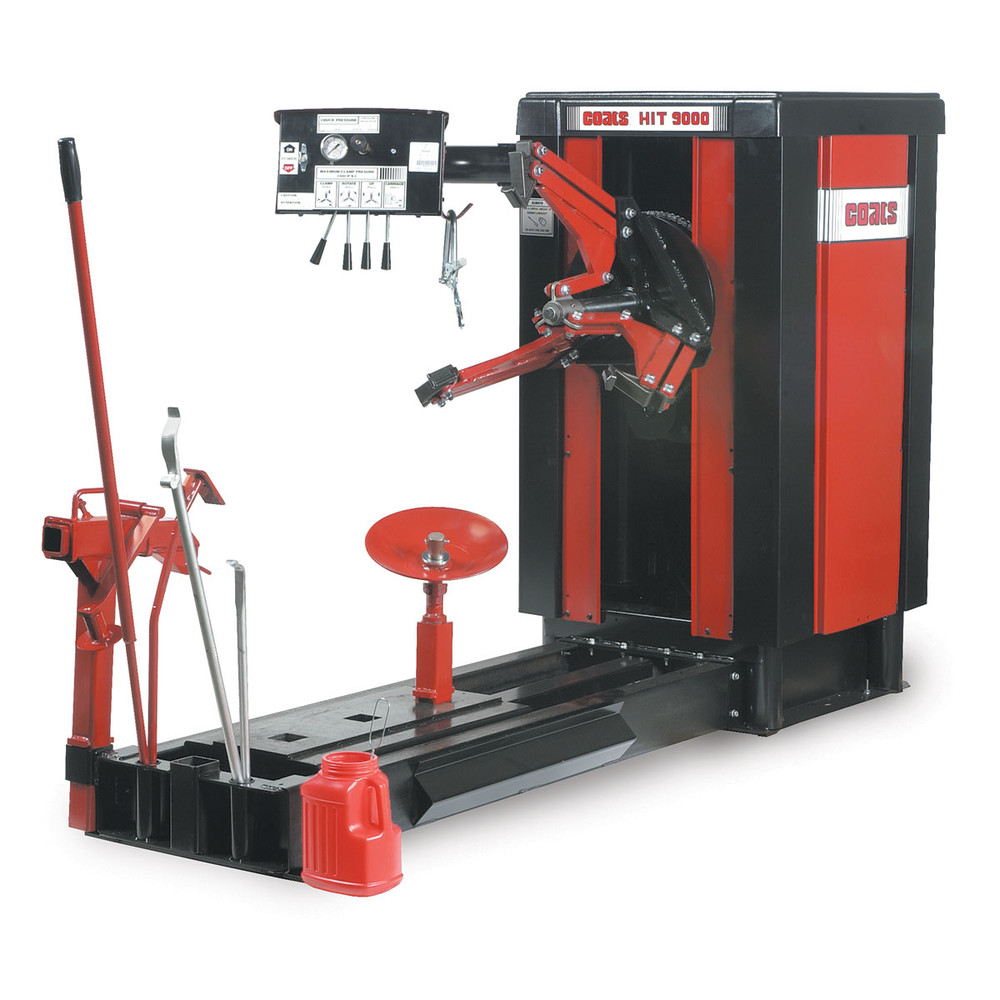

Coats HIT 9000 Heavy Duty Tire Changer

The Coats HIT 9000 Heavy Duty Tire Changer is a professional electro-hydraulic tire changing machine designed for commercial truck tire shops, agricultural equipment dealers, industrial maintenance facilities, and off-road tire service operations. Featuring a powerful self-centering three-jaw hydraulic chuck, 4,400 ft-lb maximum chuck torque, and an independent hook-and-roller mounting system, the HIT 9000 delivers dependable performance for demanding heavy-duty tire applications.

Designed to service both tube-type and tubeless tires, the Coats HIT 9000 accommodates rim diameters from 15" to 44", tire diameters up to 76", and tire widths exceeding 25" on compatible assemblies. Its heavy-duty hydraulic system, adjustable clamping pressure, and versatile mounting tools make it an excellent choice for servicing commercial truck, agricultural, industrial, and off-road tires.

The HIT 9000 features a moving center carriage, hydraulic wheel lifting, and a convenient swing-arm control station. Standard equipment includes heavy-duty tire service tools, a roller-type tire spreader, and jaw extensions for additional wheel compatibility.

Features and Benefits:

• 76" Maximum Tire Diameter: Accommodates oversized commercial truck, agricultural, industrial, and off-road tire assemblies.
• 15" to 44" Rim Diameter Range: Provides expanded wheel compatibility compared with the HIT 5000.
• 25"+ Tire Width Capacity: Handles wide commercial and industrial tire assemblies within the machine's operating limits.
• 4,400 ft-lb Maximum Chuck Torque: Delivers powerful rotational force for demanding heavy-duty tire service applications.
• Self-Centering Three-Jaw Hydraulic Chuck: Securely clamps compatible wheel assemblies during mounting and demounting operations.
• Independent Hook-and-Roller System: Provides versatile mounting, demounting, and bead loosening capabilities.
• Hydraulic Wheel Lifting: Assists technicians with raising and positioning heavy wheel assemblies.
• Moving Center Carriage: Provides controlled positioning of the wheel and tire service tools.
• Swing-Arm Hydraulic Controls: Convenient control station features dedicated levers for powered machine functions.
• Adjustable Clamping Pressure: Allows technicians to match hydraulic chuck pressure to the strength and construction of the rim.
• Dual-Direction Hydraulic Motor: Provides smooth, controlled wheel rotation in either direction.
• Heavy-Duty Tapered Roller Bearings: Support consistent torque delivery and dependable operation.
• Tube-Type and Tubeless Tire Compatibility: Supports a wide range of commercial and industrial tire applications.
• Budd and Dayton Wheel Compatibility: Accommodates compatible stud-piloted, hub-piloted, and Dayton-style wheel assemblies.
• Standard Roller-Type Tire Spreader: Assists with applicable tire inspection and service procedures.
• Jaw Extensions Included: Provides additional clamping versatility for larger compatible wheel configurations.
• No Compressed Air Required: Electro-hydraulic operation eliminates the need for an external compressed-air supply for normal machine functions.
• Single-Phase or Three-Phase Electrical Options: Available power configurations provide flexibility for different shop installations.
• Heavy-Duty Construction: Designed for demanding commercial and industrial tire service environments.

Specifications:

Standard Equipment and Accessories:

• Coats HIT 9000 Heavy Duty Tire Changer
• Self-Centering Three-Jaw Hydraulic Clamping Chuck
• Independent Hook-and-Roller Mounting/Demounting System
• Swing-Arm Hydraulic Control Station
• Roller-Type Tire Spreader
• Earth Mover Bead Loosener Roller Shaft – Part #7110652
• Lock Ring Tool – Part #7109343
• Drop Center Iron – Part #7109344
• Bead Starting Tool – Part #7109345
• Vise Grip Clamp – Part #7109346
• Stud-Piloted Wheel Plate – Part #7110853
• Jaw Extensions – Part #7110843

Available Optional Accessories:

• Offset Roller Assembly – Part #7110852: Provides additional versatility for wider tire applications.
• Hub-Piloted Wheel Plate – Part #8183803: Optional wheel mounting accessory for compatible hub-piloted wheel configurations.

Self-Centering Three-Jaw Hydraulic Chuck:

The Coats HIT 9000 features a powerful self-centering three-jaw hydraulic clamping chuck designed to securely hold heavy-duty wheel assemblies during tire mounting and demounting operations.

The hydraulic chuck automatically centers compatible wheels while providing dependable clamping force throughout the tire changing process.

An adjustable hydraulic pressure regulator allows technicians to match clamping pressure to the strength and construction of the rim, helping protect lighter or more delicate wheel assemblies.

4,400 ft-lb Maximum Chuck Torque:

The HIT 9000 delivers up to 4,400 ft-lbs. of maximum chuck torque, providing substantially greater rotational force than the HIT 5000.

This additional torque makes the HIT 9000 particularly attractive for demanding industrial, agricultural, and off-road tire service applications.

Heavy-duty tapered roller bearings and a dual-direction hydraulic motor provide smooth, controlled wheel rotation during mounting and demounting procedures.

Independent Hook-and-Roller Mounting System:

The Coats HIT 9000 features an independent hook-and-roller mounting and demounting system designed for versatile heavy-duty tire service.

The independently positioned tools allow technicians to perform bead loosening, mounting, and demounting operations using the appropriate tool arrangement for the application.

This system is especially useful when servicing large commercial truck, agricultural, industrial, and off-road tires requiring different mounting and demounting procedures.

15" to 44" Rim Diameter Range:

The Coats HIT 9000 accommodates rim diameters from 15" to 44", providing greater rim capacity than the HIT 5000.

This expanded clamping range makes the machine suitable for a wide variety of compatible commercial truck, agricultural, industrial, and specialty wheel assemblies.

Jaw extensions are included as standard equipment to provide additional clamping versatility.

76" Maximum Tire Diameter:

The HIT 9000 is designed to handle oversized tire assemblies up to 76" in diameter, with tire width capacity exceeding 25" on compatible applications.

Its large tire capacity and heavy-duty hydraulic construction make it well suited for commercial tire service facilities handling equipment beyond conventional highway truck applications.

Actual compatibility depends on tire dimensions, rim construction, wheel configuration, and the accessories required for the application.

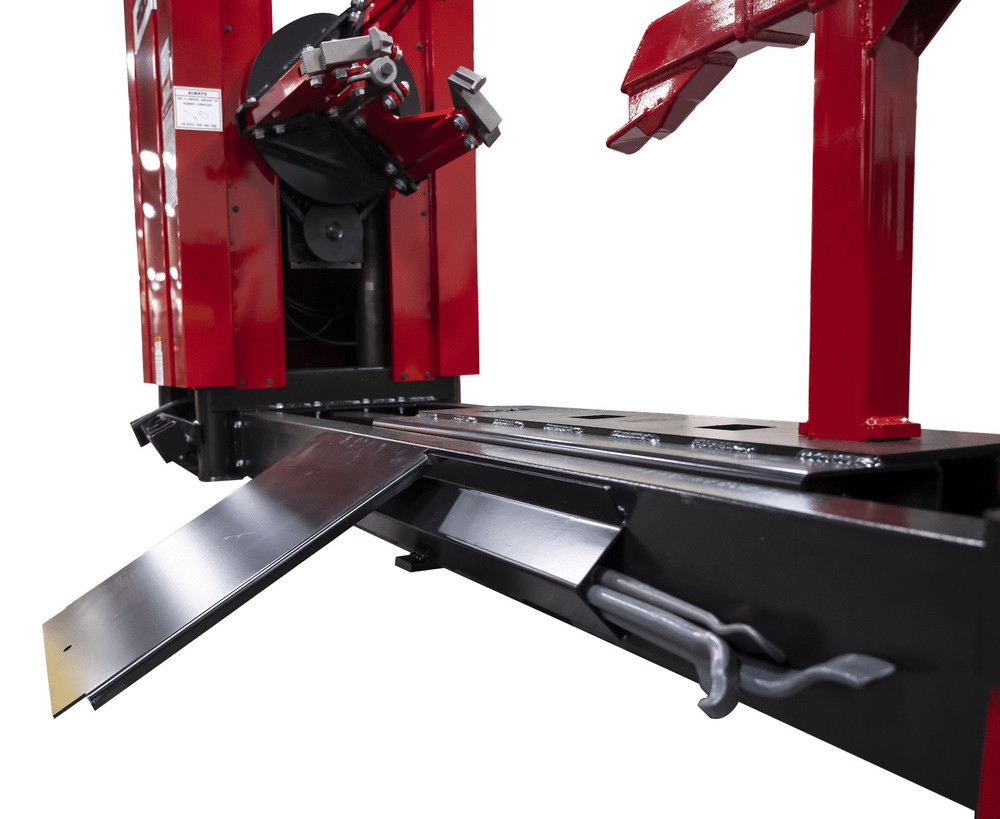

Hydraulic Wheel Lifting and Center Carriage:

The Coats HIT 9000 uses a hydraulic clamping arm to raise and position compatible wheel assemblies during tire service.

Its moving center-carriage design provides controlled positioning of the wheel and mounting tools, helping technicians service large tire assemblies efficiently.

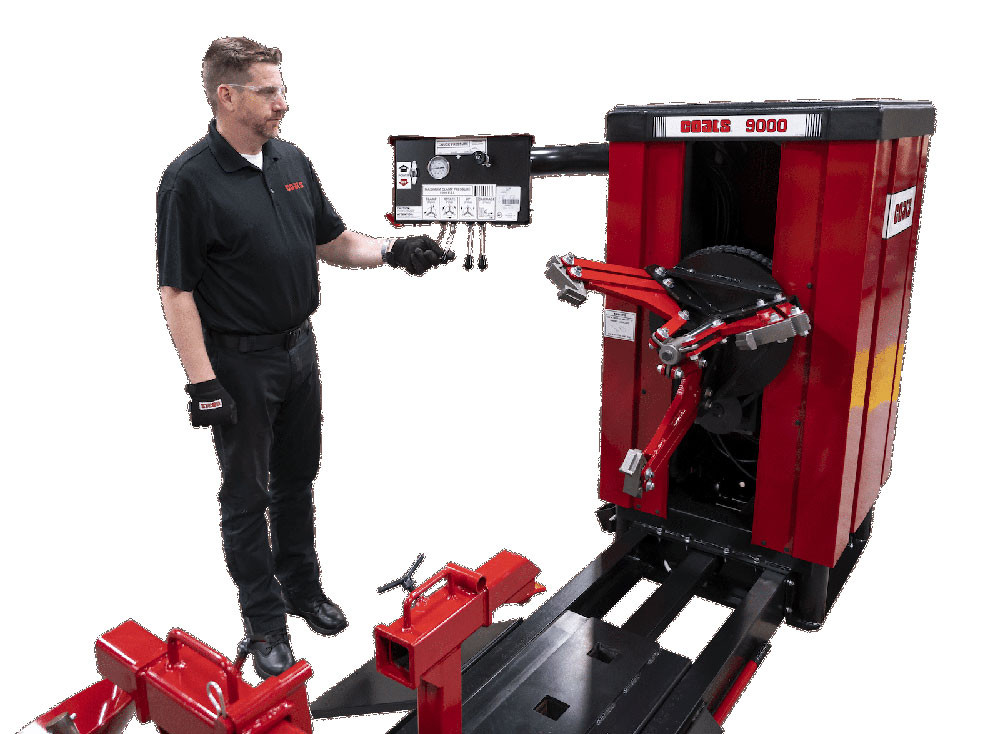

Convenient Swing-Arm Hydraulic Controls:

The HIT 9000 features a swing-arm control station with dedicated hydraulic levers for individual powered machine functions.

This arrangement provides technicians with straightforward control of wheel clamping, positioning, rotation, and tire service operations.

The adjustable hydraulic pressure regulator is conveniently located on the control station.

Tube-Type and Tubeless Tire Compatibility:

The Coats HIT 9000 is designed to service both tube-type and tubeless tires, providing versatility for commercial truck, agricultural, industrial, and off-road tire applications.

The machine accommodates compatible Budd, Dayton, stud-piloted, and hub-piloted wheel configurations, with specialized accessories available for particular applications.

Proper tire service procedures and appropriate accessories must be used for each wheel configuration.

Standard Roller-Type Tire Spreader:

The HIT 9000 includes a roller-type tire spreader that assists technicians with applicable tire inspection and service procedures.

The spreading system provides access to the interior of compatible tire assemblies when performing appropriate inspection and repair operations.

No Compressed Air Required:

The Coats HIT 9000 uses an electro-hydraulic operating system that does not require an external compressed-air supply for normal machine functions.

This simplifies installation requirements for facilities seeking hydraulically operated heavy-duty tire service equipment.

Single-Phase and Three-Phase Electrical Options:

The Coats HIT 9000 is available in 220V single-phase and 220V three-phase configurations, providing flexibility for commercial tire shops with different electrical service requirements.

Customers should select the appropriate electrical configuration for their facility and verify the electrical requirements before ordering.

Installation Requirements:

The Coats HIT 9000 Heavy Duty Tire Changer requires adequate floor space, electrical service, and operating clearance for handling large commercial and industrial wheel assemblies.

The machine measures approximately 96"W x 108"D x 66"H. The manufacturer's operating manual specifies a working area of approximately 10 feet wide by 10 feet long with 8 feet of vertical clearance.

Customers should verify that sufficient space is available for wheel loading, unloading, technician access, and movement of the hydraulic components.

The HIT 9000 is available in 220V single-phase and 220V three-phase configurations. The manufacturer's operating manual specifies a 20-amp circuit for the 220V single-phase configuration covered by that manual. Electrical requirements for other configurations should be verified before installation.

The machine should be positioned on a relatively level, smooth floor, preferably concrete. The manufacturer's operating manual states that floor anchoring is not normally required, although mounting holes are provided if anchoring is desired.

Electrical connections must be completed by a qualified electrician in accordance with the manufacturer's instructions and applicable electrical codes.

The HIT 9000 does not require an external compressed-air supply for normal machine operation.

Due to the machine's shipping weight of approximately 1,600 lbs., customers should verify delivery access, unloading equipment, and installation arrangements before purchasing.

Professional installation and operator training are recommended.

Important Tire Inflation Safety Information:

The Coats HIT 9000 is designed for tire mounting and demounting operations and must not be used as a tire inflation safety device.

Wheel assemblies must be removed from the tire changer before inflation. Heavy-duty tire inflation must be performed using an appropriate approved inflation chamber or safety cage and the procedures required for the wheel assembly being serviced.

Only properly trained technicians should service heavy-duty tires, particularly multi-piece wheel assemblies and wheels equipped with lock rings.

Manufacturer Warranty:

The Coats HIT 9000 Heavy Duty Tire Changer includes a limited manufacturer warranty covering parts for one year and labor for 90 days, subject to the manufacturer's applicable warranty terms and conditions.

The manufacturer's operating manual requires electrical installation by a licensed electrician and timely warranty registration. Customers should review the current warranty requirements supplied with their machine to maintain coverage.

Why Choose the Coats HIT 9000 Heavy Duty Tire Changer?

The Coats HIT 9000 combines powerful hydraulic operation with expanded wheel capacity and versatile mounting and demounting capabilities.

Its 76" maximum tire diameter, 15" to 44" rim diameter range, 4,400 ft-lb maximum chuck torque, self-centering three-jaw hydraulic chuck, and independent hook-and-roller system make it an excellent choice for demanding commercial truck, agricultural, industrial, and off-road tire service applications.

With included jaw extensions, standard heavy-duty tire service accessories, and single-phase or three-phase electrical options, the Coats HIT 9000 Heavy Duty Tire Changer provides a dependable solution for professional heavy-duty tire service facilities.
