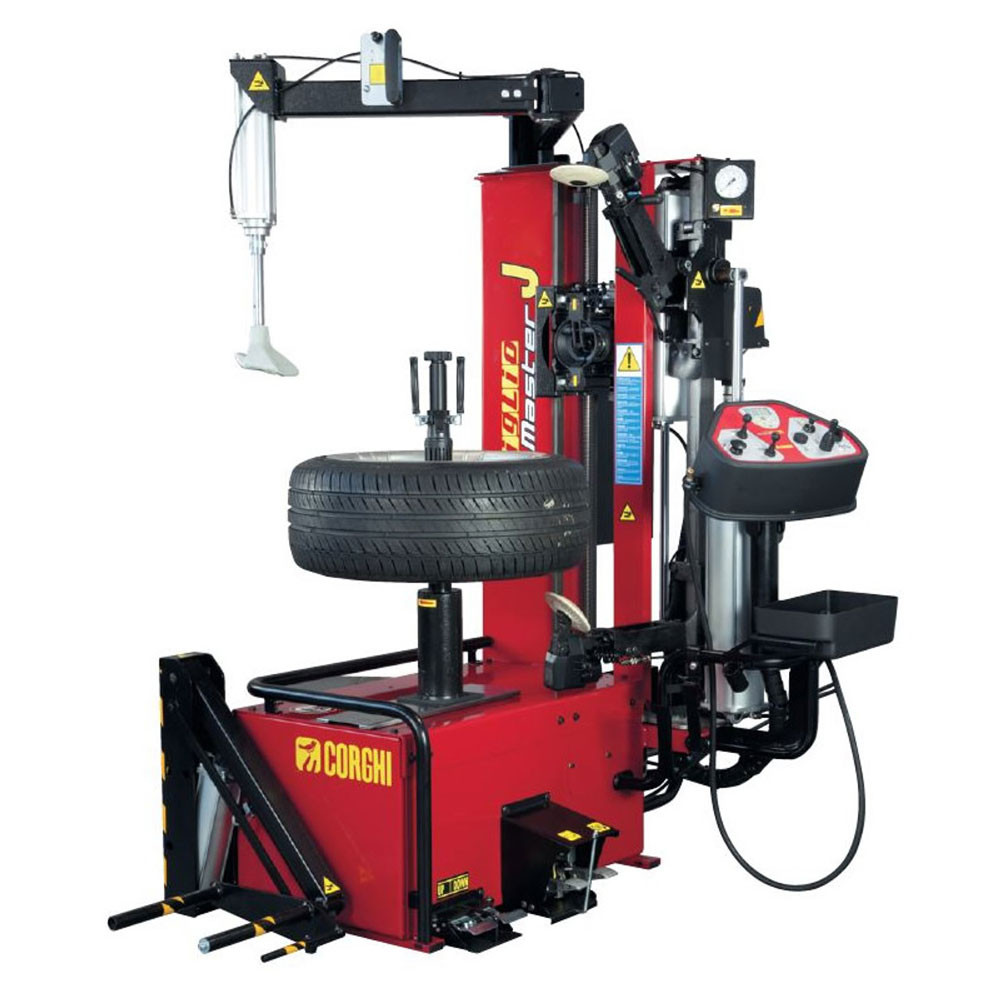

Corghi Artiglio Master J Touch-Free Tire Changer

$20,295.00
Free_shipping:
Free Shipping
(No reviews yet) Write a Review
SKU:
#0-11116234/0000

Upgrade your tire servicing with the Corghi Artiglio Master J, a sophisticated leverless tire changer built on Corghi’s patented "Leva la leva" touch-free technology combined with the SMART Corghi System—the only system designed to never touch the rim during operation and fully eliminate tire tension during mounting/demounting. Ideal for modern service centers, the Master J delivers enhanced safety, speed, and precision.

Its advanced features include a dynamic dual-disc bead breaker with automated, synchronized positioning for controlled and repeatable bead breaking. The ergonomic multifunctional console allows for electronic rim-diameter input, enabling rapid, safe, and tool-accurate setups.

Built for ease of operation, the Master J features an axial mounting turntable—offering secure wheel clamping and dual-side bead breaking without repositioning the wheel—and integrates a wheel lifter and adjustable bead depressor (ideal for run-flat tires) to minimize operator fatigue.

With its blend of innovation, construction quality, and competitive pricing, the Master J is a trusted investment, offering longevity and technological superiority since its debut in 2001.


Key Specifications

Feature Details
Rim Diameter Range 12″ – 26″ (305 – 660 mm)
Maximum Tire Diameter Up to 43″ (1,100 mm)
Maximum Tire Width Up to 14″ (360 mm)
Supported Tire Types Conventional, Low-Profile, Run-Flat
Clamping System Mechanical / Manual axial turntable
Drive System 2-Speed Moto-Inverter
Rotation Torque ~811 ft-lb (1,100 Nm)
Rotation Speed 7–18 rpm
Bead Breaker Force ~7,600 N (~1,710 lbf)
Bead Breaking Range Up to 18″ (457 mm)
Bead Breaker Stroke 17.7″ (450 mm)
Wheel Loading / Unloading Pneumatic; includes wheel lifter
Maximum Wheel Weight Up to 187 lb (85 kg)
Power Supply 1-Phase 230 V / 110 V – 0.98 kW (50/60 Hz)
Minimum Air Pressure 8 bar (116 psi)
Machine Weight ~882 lb (400 kg) with depressor & lifter
Dimensions (H × W × D) Approx. 71.4″ × 44.7″ × 74.96″
