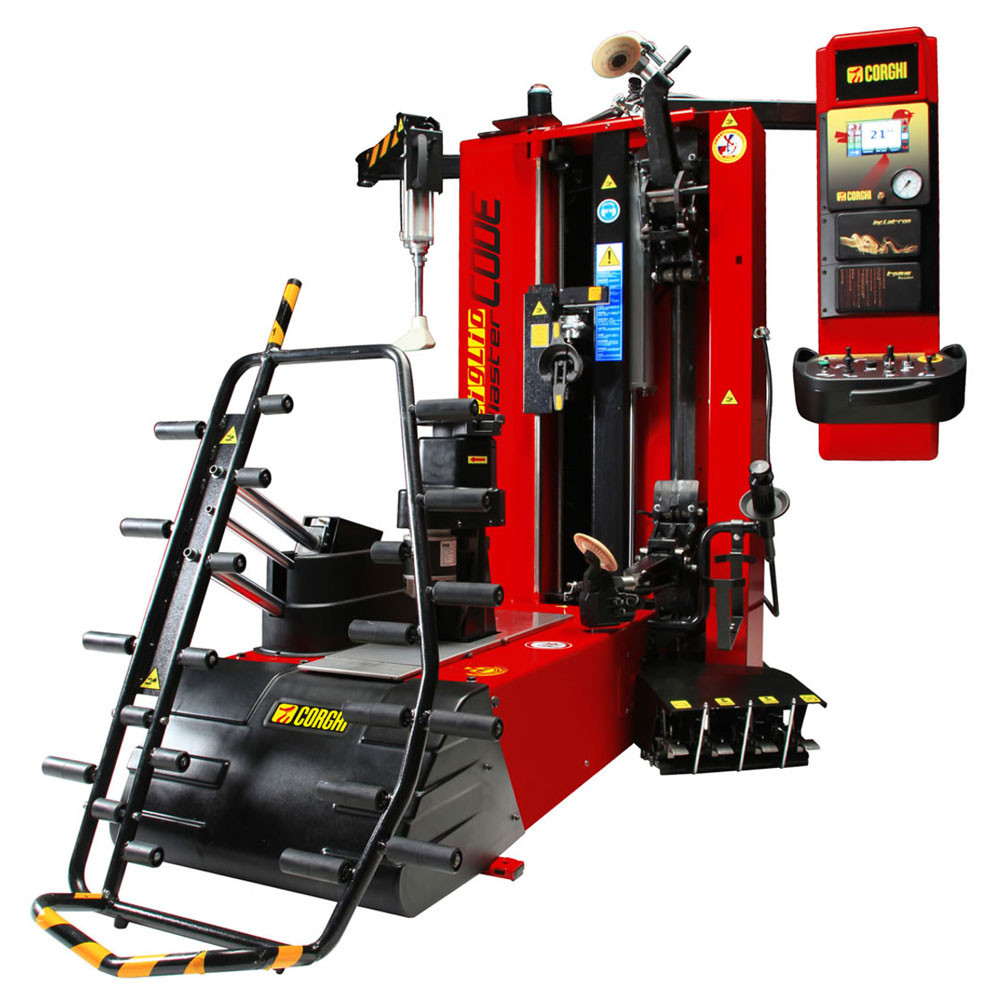

Experience the next level of tire service with the Corghi MasterCode Visual L, a fully automated, touchless tire changer engineered for speed, safety, and precision. Leveraging Corghi’s pioneering Smart Corghi System alongside automatic wheel dimension acquisition, tool positioning is seamless and damage-free every time.
Its integrated touchscreen interface delivers expert guidance for both automatic and manual workflows, featuring self-diagnostic tools, scheduled maintenance alerts, and on-screen video instructions. Designed to swiftly adapt to all tire types—from run-flat and UHP to small and large balloon tires—the Visual L ensures premium performance with minimal effort.
A fully loaded design, the Visual L comes standard with a wheel lifter, bead depressor, lubricator, video camera, and automated inflator (Inflatron)—empowering workshops to operate faster, safer, and with unmatched reliability.
Key Specifications
| Feature | Details |
|---|---|
| Rim Diameter Range | 13″ – 32″ |
| Maximum Tire Diameter | 47.2″ (1,200 mm) |
| Clamping System | Automatic intelligent, electromechanical |
| Drive System | 2-speed inverter motor |
| Torque | ~885 ft-lb (~1,200 Nm) |
| Rotation Speed | 7–20 rpm |
| Bead Breaker Force | Upper & lower: ~1,641 lbf (~7,300 N) |
| Max Bead Breaking Range | 19″ |
| Wheel Lifter Capacity | ~187 lb (~85 kg) |
| Power Supply | 1-Phase 230 V or 115 V – 0.98 kW, 50/60 Hz |
| Air Pressure Requirement | 116–145 psi (8–10 bar) |
| Weight | ~1,312 lb (~595 kg) |
| Key Features | Touchscreen UI, wheel data self-acquisition, articulated lifter, bead depressor, inflator, camera, mobile console, Smart Corghi System |
