iDeal LT-PT2500AH-X 2,500 lb. Capacity Air-Hydraulic Powertrain Lift Table

The iDEAL LT-PT2500AH-X is a 2,500 lb. portable, high-rise commercial & industrial grade airhydraulic lift table, incorporating a multi-adjustable powertrain platform primarily designed to assist with controlled lifting & lowering tasks to safely remove, replace or service heavy vehicle powertrain components such as engines, transmissions, drive-axle & transaxle assemblies, or other similar heavy components. The LT-PT2500AH-X comes standardly equipped with a durable multi-adjustable powertrain platform that includes extendable length, tilt & height adjustments, while also incorporating

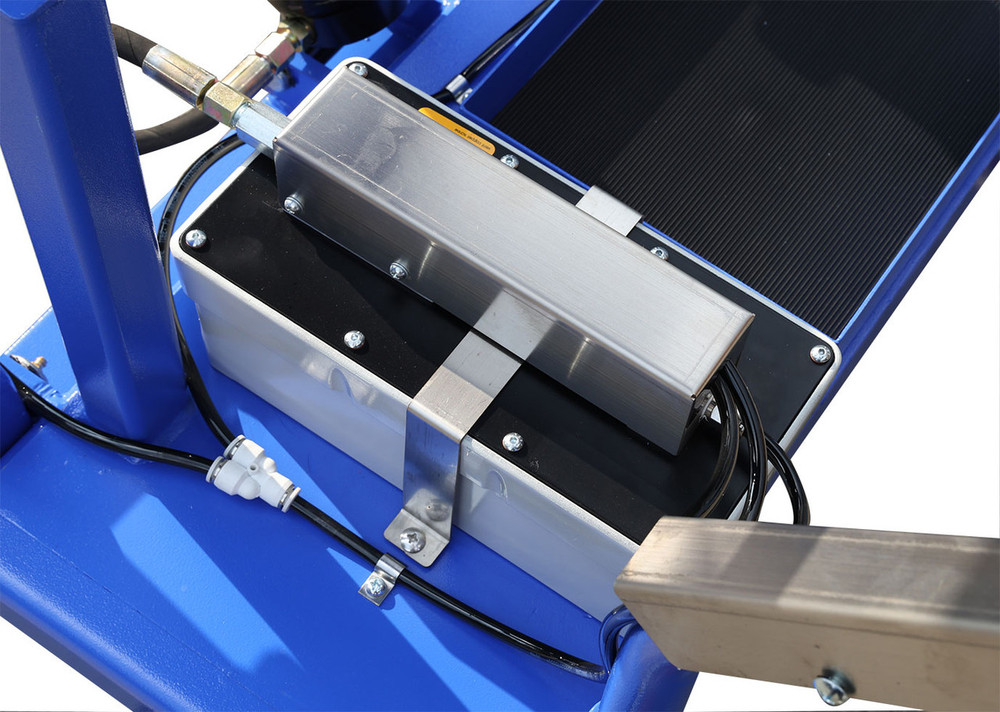

an exclusive fully operational pneumatic hand operated ‘stainless-steel’ control panel with integrated air gauge & water separator. In addition, iDEAL Powertrain 2500 lb. Lift Table comes standard with high-quality locking swivel & directional poly casters, tool tray, removable hand bar, double scissor design, HD air-hydraulic pump & hydraulic cylinder, tie-down anchors, and heavy duty ratchet strap all combined to provide maximum strength, stability, and safety for added efficiency and convenience. Optional ‘quick mount’ PT Support Stand Kit also available, providing additional support for various powertrain components.

• 2,500 lbs capacity
• Innovative, high quality portable scissor lift design
• Efficent & Safe method to install or remove heavy vehicle powertrain components (Transmissions, Engines or Ax)
• Full operation air system hand controls for lifting, locking & lowering
• Compressed Air/HP Hydraulic Operation (90 to 125 PSI)
• Integrated air gauge w/water separator
• HD PT 'Extendable & Slotted' plaform w/5.2" adjustment length

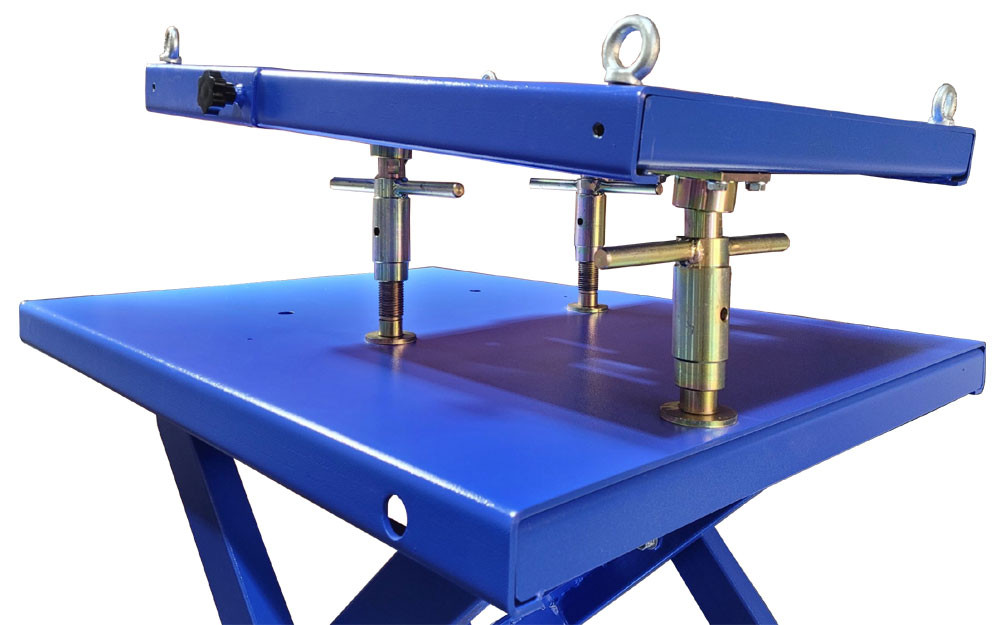

• HD Jack screws for precision 'Tilt & Height' Platform adjustments
• Double scissor HD design w/HQ Hydraulic cylinder
• Integrated utility/tool tray & sub-platform storage area

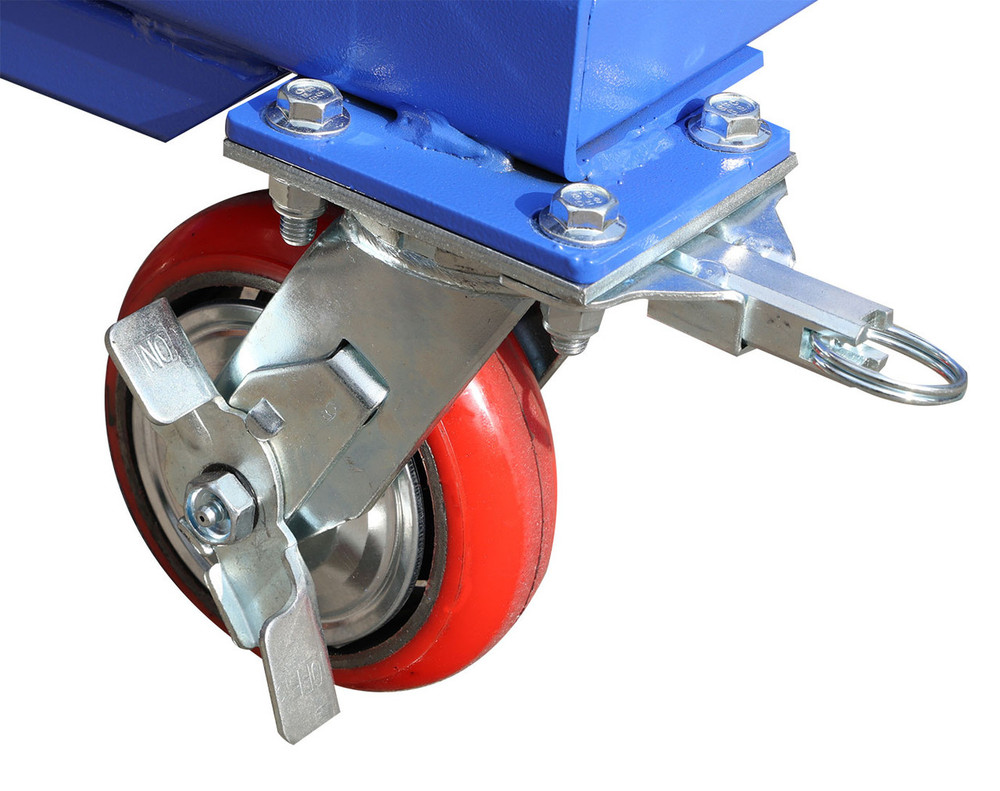

• Durable 'directional & locking' 6" poly swivel casters
• PT platform size 23.6"W x 31.5 - 36.7"L
• 3 each locking height postions
• Max PT Platform height: 72"
• Min PT Platform height: 35"
• Overall size 71.3"L x 33.5"W
• 72s rise and 33s lower time
• Includes 4 each tie-down ring eyelets & HD ratchet strap
• Durable powder-coat finish
