The iDEAL LT-PT3300DC-X is a 3,300 lb. portable, high-rise commercial / industrial grade 12V DC battery powered electric-hydraulic lift table, incorporating a multi-adjustable powertrain platform primarily designed to assist with controlled lifting & lowering tasks to safely remove, replace or service heavy vehicle powertrain components such as engines, transmissions, drive-axle & transaxle assemblies, or other similar heavy components. The LT-PT3300DC-X comes standardly equipped with a durable powertrain platform that includes extendable length, tilt & height adjustments, while also incorporating a fully operational remote hand controller & control box panel buttons for dual operational control operations. Also included is a high quality deep-cycle 12V DC sealed battery, integrated battery charger and 12V DC auxiliary outlet port. In addition, the iDEAL Powertrain 3300 lb. lift table comes standard with a pallet jack dolly with poly casters, leg support stands, front locking swivel & directional poly casters, tool tray, double lift scissors, powerful DC electric motor, dual hydraulic cylinders, tie-down anchors, and heavy duty ratchet strap. Optional Accessories include a ‘quick mount’ PT Support Stand Kit & 12V DC LED Spot Light with magnetic base.
- 3,300 lbs capacity
- Innovative, high quality portable scissor lift design
- Efficent & Safe method to install or remove heavy vehicle powertrain components (Transmissions, Engines or Axles)
- Dual DC electrical operation using control panel or magnetic hand control buttons for ease of lifting, locking & lowering
- 12V DC battery operation w/integrated 110v battery charger
- HD PT 'Extendable & Slotted' Platform w/5.2" adjustment length

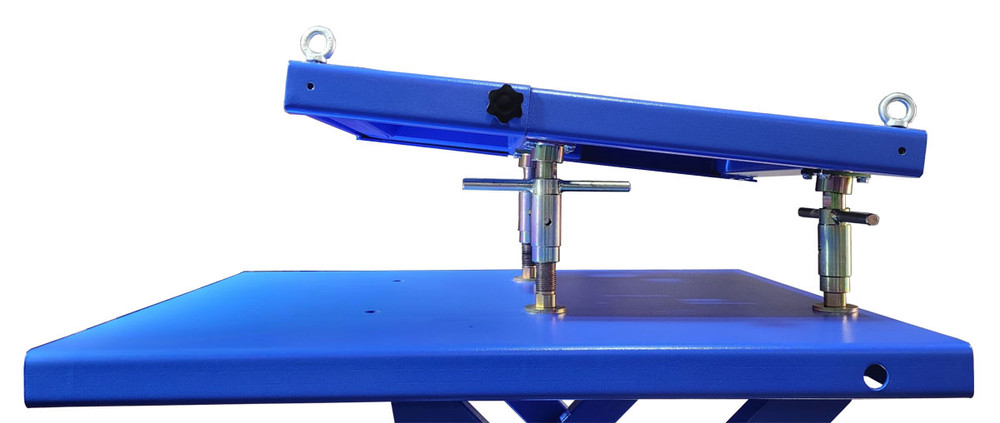

- HD Jack screws for precision 'Tilt & Height' Platform adjustments
- Double scissor HD design w/HQ Hydraulic cylinder
- Integrated utility/tool tray & sub-platform storage area
- Portability ease with pallet jack operation w/6" poly wheels
- Durable 'directional & locking' 6" front poly swivel casters
- PT platform size 23.6"W x 31.5 - 36.7"L
- 3 each locking height postions
- Max PT Platform height: 72"
- Min PT Platform height: 35"
- Overall size 65.2"L x 33.5"W
- 20 second rise & 22 second lower time
- Includes 12V DC battery & 4 each tie-down ring eyelets & HD ratchet strap
- Durable powder-coat finish
