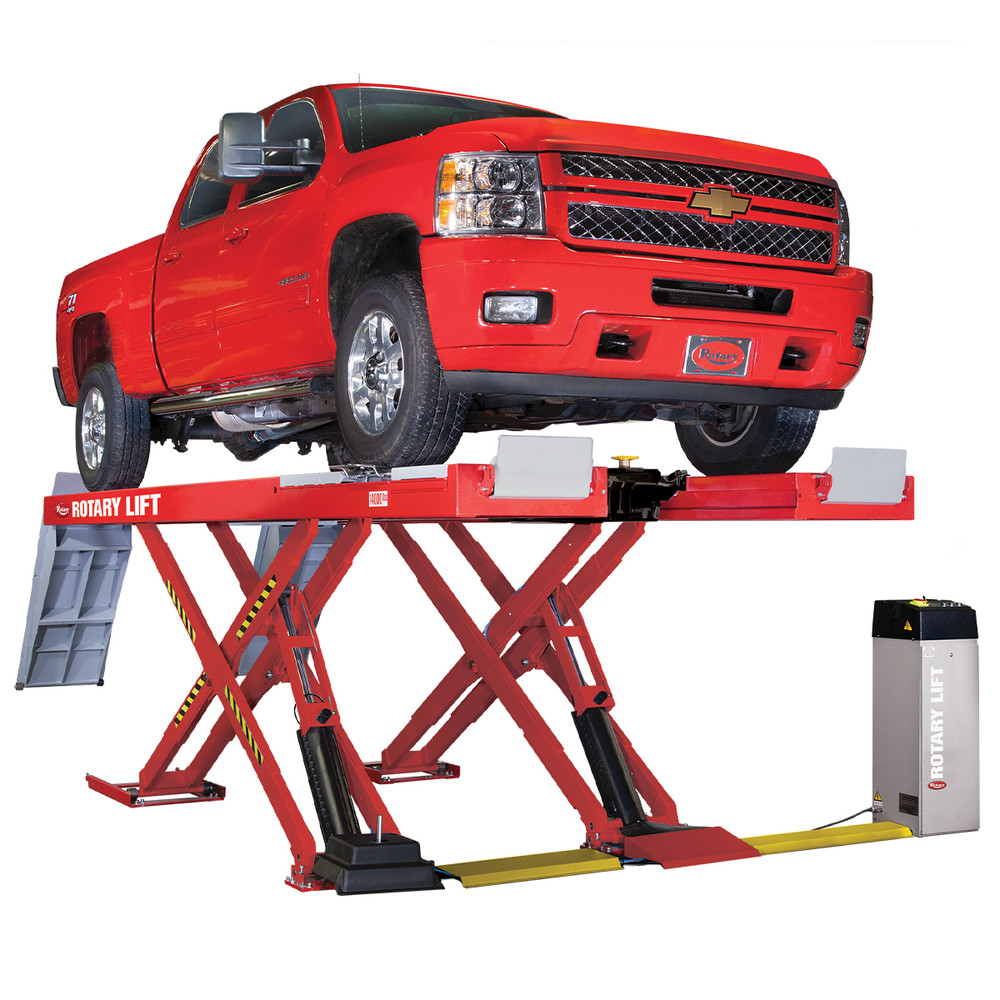

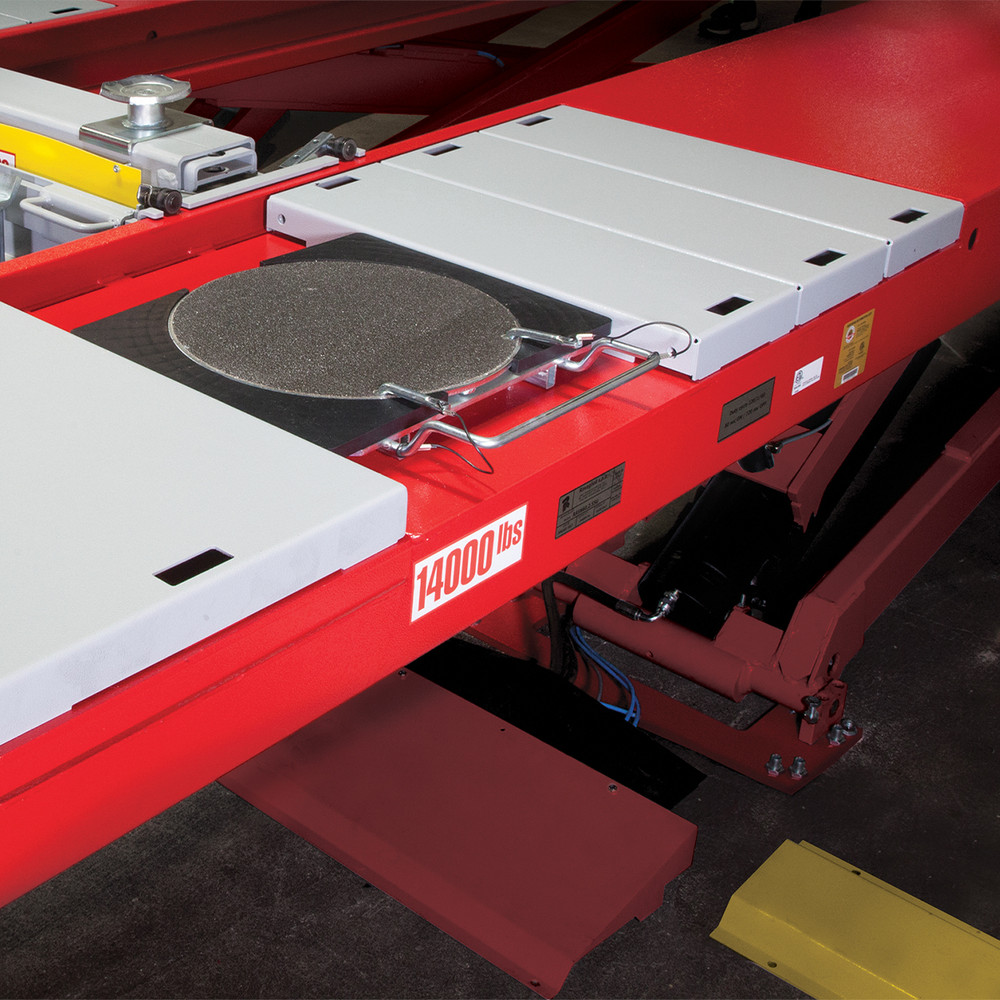

Rotary’s 14,000-pound alignment scissor lift offers an impressive 201-inch max wheelbase. The lift’s front radius gauge area has an extended, lengthened recess where multiple plates can be configured for vehicles with longer wheelbases, handling vehicles with wheel bases as little as 80 inches to larger trucks and vehicles up to 198 inches.
- Open Access From Front to Rear

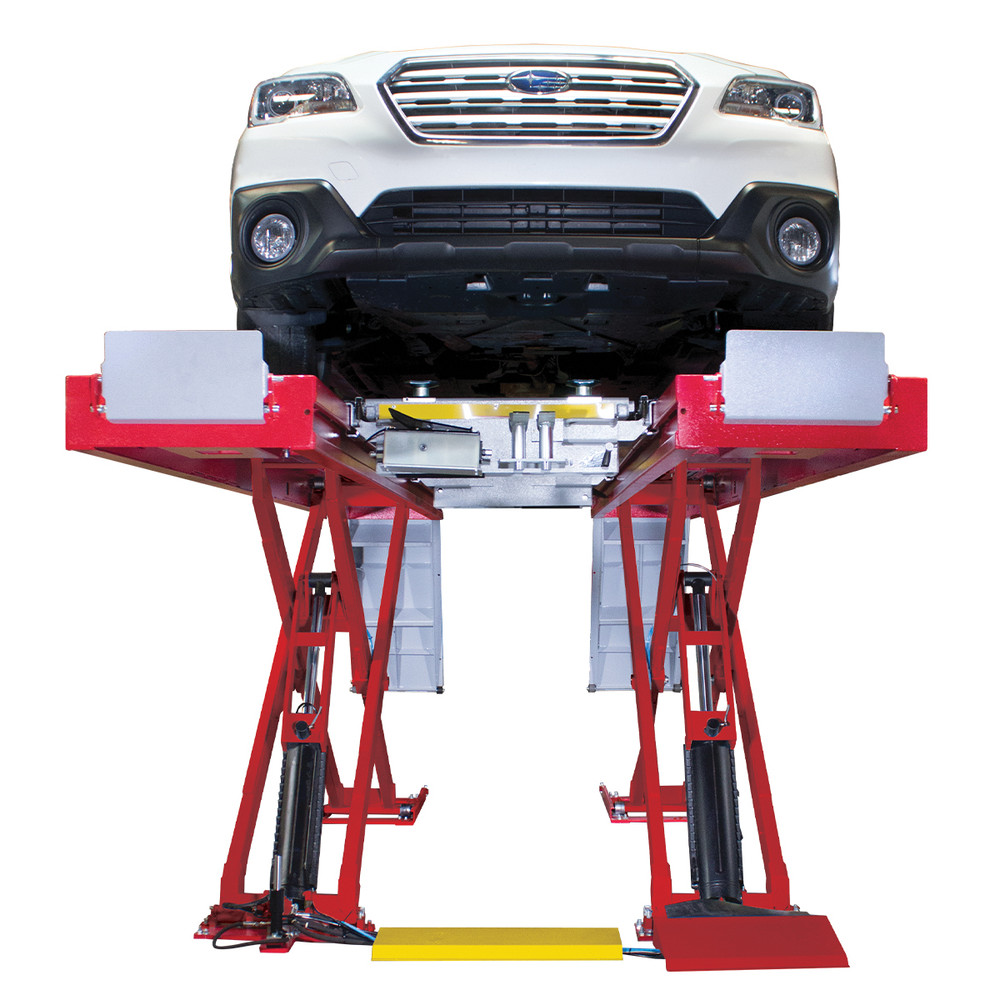

The scissor lift design offers open access from the front to the rear. With no obstructions, your technician has greater access to the vehicle’s adjustment points for alignments and other repairs.
- Multiple Installation Options Provide a Custom Bay
This scissor lift is available with floor-recessed or surface-mount installation, which allows you to customize your shop. Extended ramps and control hose extension kits provide ultimate in-location flexibility.

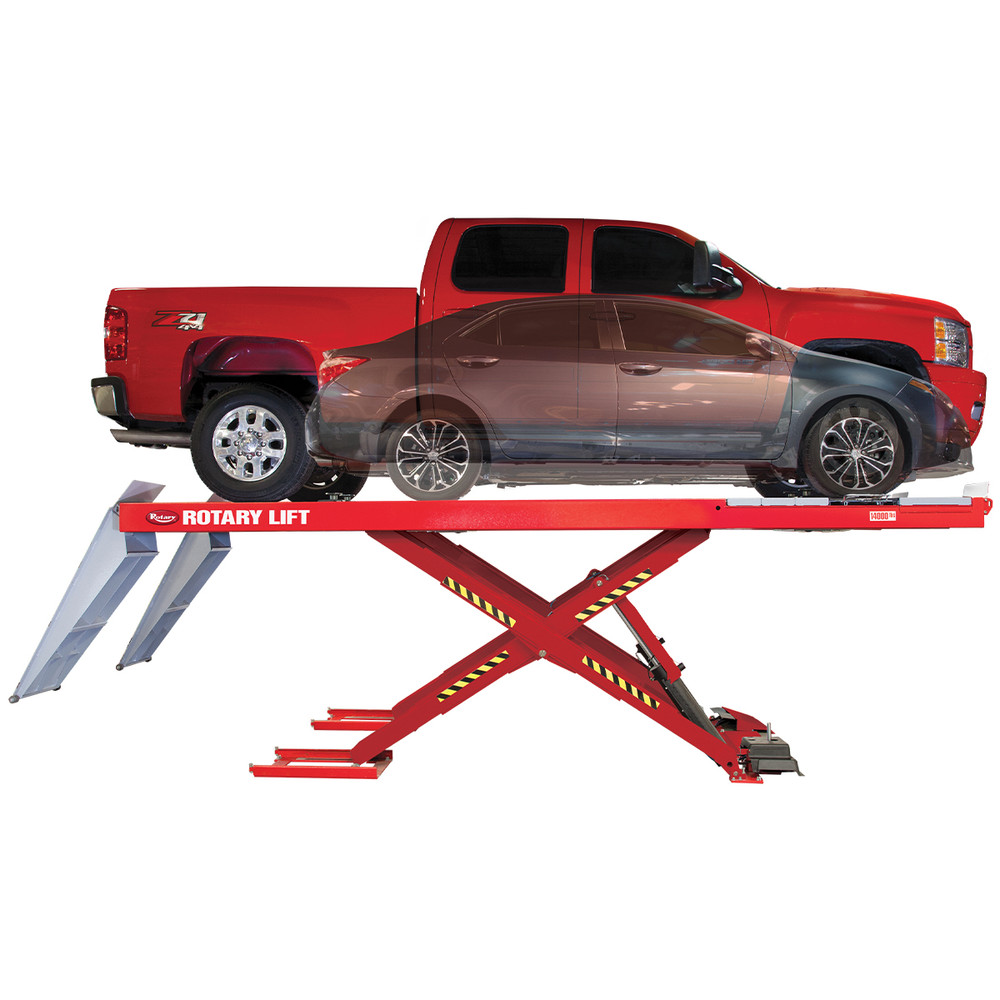

- VERSATILE WHEELBASE RANGE

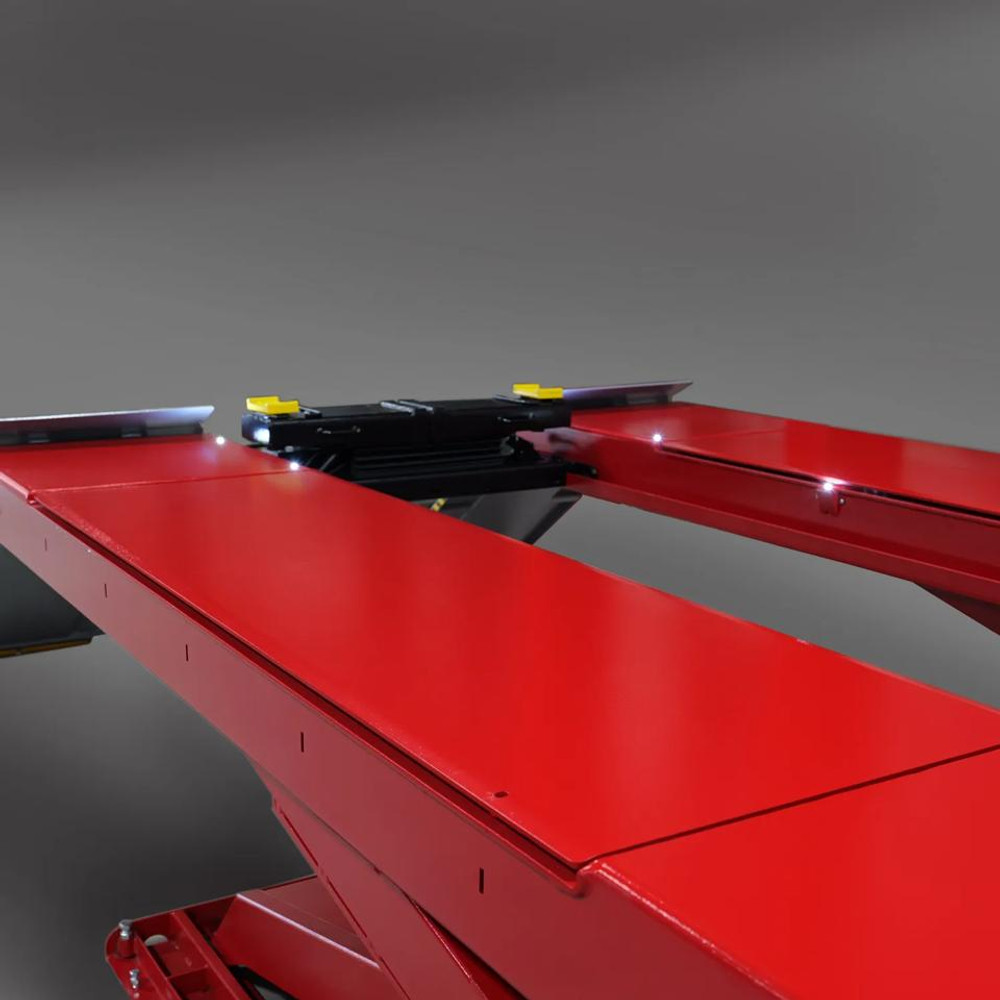

217” long runways, oversized slip plates and easily adjusted radius gauge pockets accommodate a range of wheelbases.
- 80” to 169” for FOUR WHEEL ALIGNMENT
- 189” MAX. TWO WHEEL ALIGNMENT
- 201” for GENERAL SERVICE
- 26” wide runways

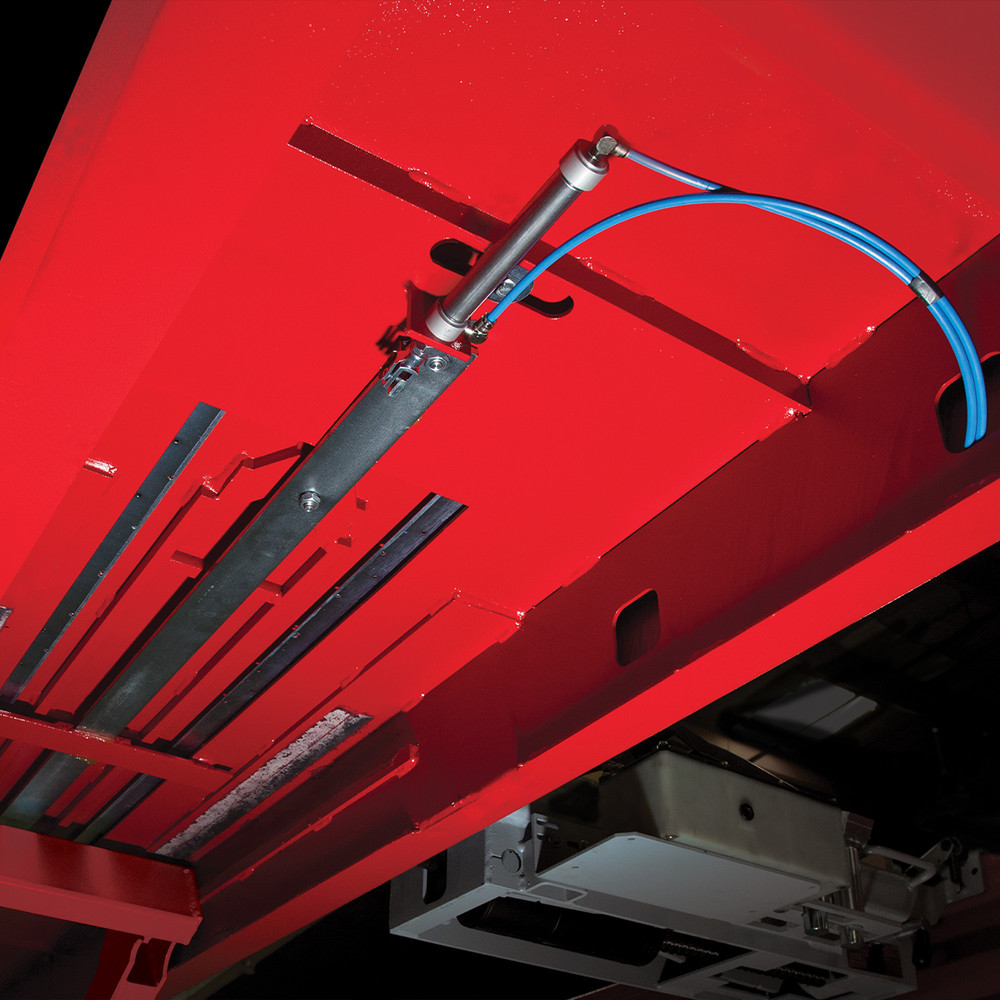

- Air Actuated Rear Slip Plate Locks
- Includes: (2) 7,000 lb Rolling Jacks, Stainless Turntables, Locking Slip Plates, Air Line Kit
Product Specifications
| Specification | XA14-EL |
|---|---|
| Capacity | 14,000 lbs. (6350kg) |
| Length of Runway | 217" |
| Max. Wheelbase (General Service) | 201" |
| Max. Two-Wheel Alignment Wheelbase | 189" |
| Min. Four-Wheel Alignment Wheelbase | 80" |
| Max. Four-Wheel Alignment Wheelbase | 169" |
| Overall Length with Ramps | 283" |
| Maximum Rise* | 72" (surface mount), 61" (recessed mount) (*Rise measures floor to top of runway deck at full stroke) |
| Lowered Height | 11" (surface mount) |
| Overall Width | 7' 8-1/8" |
| Length of Runway | 217" |
| Runway Width | 26" |
| Width between Runways | 40" |
| Motor | 4HP / 1PH |
| Voltage | 208-230V / 60HZ |
| Time of Full Rise | 61 Seconds |
| Time of Descent | 49 seconds |
| Air Supply | 85-110 psi |
| Min. Bay Size** | 13' x 28' (**Factor in any additional space required in front of the lift based on manufacturer recommendations if a tower camera aligner system or ADAS target calibration system is being paired with this scissor lift) |
| Lift Colors | Red & Blue (Console, ramps, and chocks are gray) |
