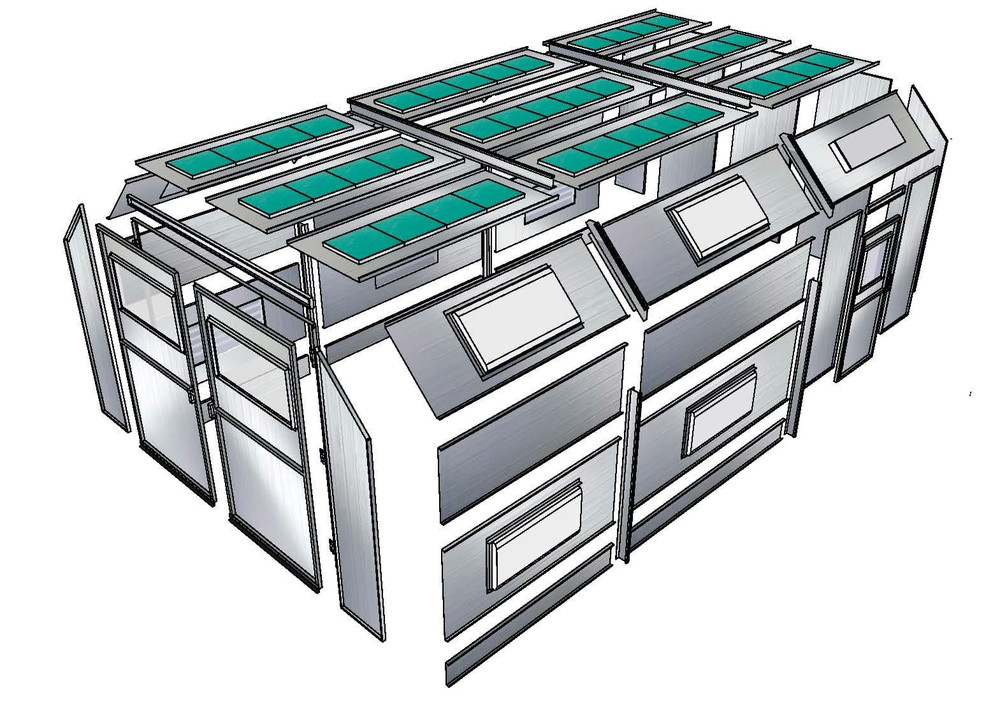

Tuxedo PDD-141026 Pitted Down Draft Paint Booth

$23,920.00
(No reviews yet) Write a Review
SKU:
#PDD-141026
Availability:
Built to Order. Usually ships in 4 weeks.

American Made Paint Booths

Our booths are built with high-quality galvanized steel, UL and CSA-approved components, control panels, LED lights and our fans are AMCA-rated. We design and manufacture in accordance with the industry guidelines to include OSHA, NFPA33, NEC, and BOCA.

Designed with precise ventilation and filtration systems, creating specialized environments for painting and finishing applications, where controlled conditions are essential to achieve professional results.

Inside Dimensions 14′ Wide X 9’4″ Tall X 25’9″ Long
Outside Dimensions 14′3" Wide X 9’10” Tall X 26′ Long
Construction 18 Gauge G-90 Galvanized Steel
Front Door Opening Dimensions 9′ Tall X 10′ Wide W/ Large Observation Glass
Main Door Access Dimensions 1 Door With Window @ 7′ Tall X 3′ Wide
Lighting 10 @ 4 Tube, 2′ X 4′, Led Fixtures with Glass, Light Over Door (Class 1 Div 2)
Exhaust System 30" DIA TUBEAXIAL FAN; 5HP-3PHASE MOTOR; 15680 CFM @ 1/2"S.P.
Filtration 20″ X 20″ Intake & Exhaust Blanket Filter
Manometer/Draft Gauge, Hardware And Sealants Included
  • Designed for extended service and production requirements.
  • Certified sub-components (Fan/Motor; Filters; LED Lights)
  • OSHA and NFPA-33 compliant Optimal / Code-compliant coating environment
  • Custom sizes available / Multiple air flow types (or variants)

Customer Responsibilities:

  • Offloading of delivery truck
  • Construction / Installation to include electrical.
  • Local permitting and fire suppression (if required)

Control Panel Overview: Booth Control Panel

Certificate of Compliance: Certificate of Compliance

Duct Work Schematic: Ductwork Package

Additional Options:

  • Single Phase Motor
  • 30″ Dia X 8′ Long Exhaust Ductwork Package
  • Powder Coated Bright White Complete Booth
  • Control Panel for Lights & Fan
  • High-End VFD Control Panel with UL Listed Components
    • Converts single-phase to three-phase
    • Converts three-phase to three-phase
  • Drive Through Doors
