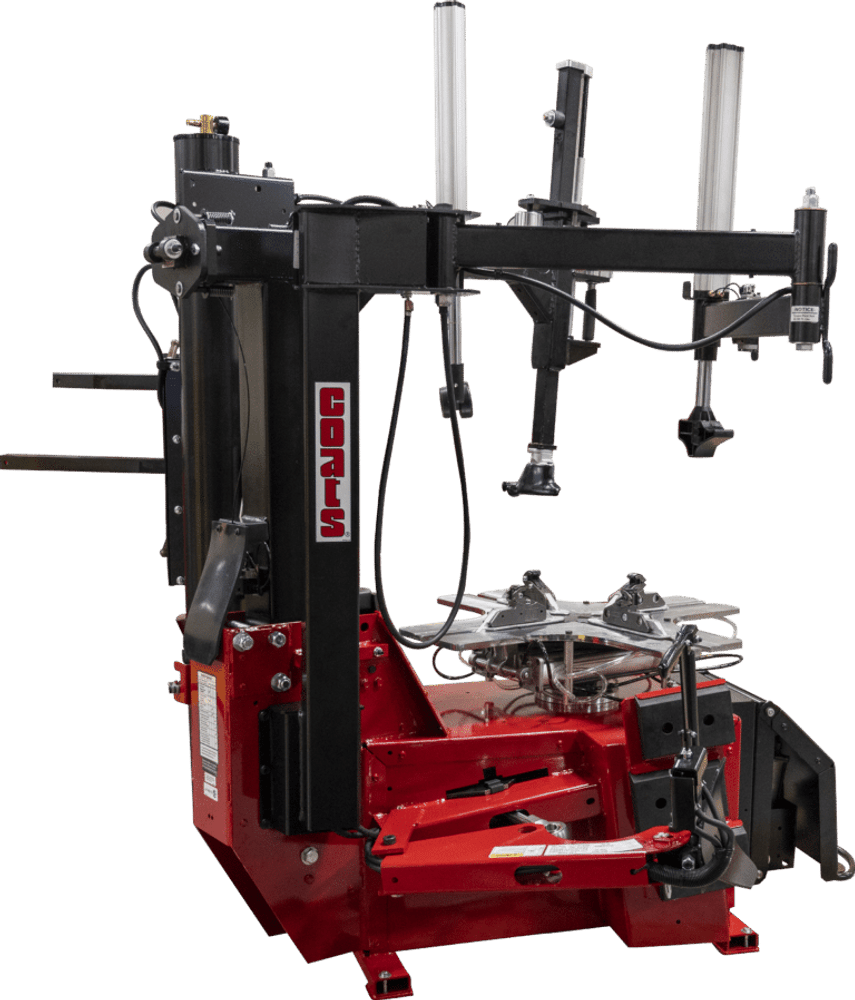

Coats APX90 All-In-One Rim Clamp Tire Changer

The Coats APX90 All-In-One Rim Clamp Tire Changer is an advanced professional tire changer designed for high-volume tire shops, dealerships, performance shops, and automotive service centers that need the versatility to handle a wide range of today's tire and wheel assemblies. Combining a large 9" to 30" external clamping range with an integrated wheel lift, Robo-Arm®, RoboRoller®, horizontal power rollers, and a tilt-back tower, the APX90 provides the capability and technician assistance needed for demanding professional tire service.

Designed to service wheels up to 30" without special adapters, the APX90 provides exceptional versatility for low-profile, run-flat, custom, performance, passenger car, and light truck applications. Multiple helper devices assist technicians throughout the mounting and demounting process, while the integrated wheel lift helps reduce manual lifting and provides greater control when positioning large, heavy, or expensive wheel assemblies.

Features and Benefits:

• 9" to 30" External Clamping Range: Large-capacity four-clamp system accommodates wheels from 9" to 30" externally without requiring special adapters.
• Integrated Wheel Lift: Raises heavy tire and wheel assemblies to tabletop height, helping reduce technician lifting and strain while providing greater control when loading large or expensive wheels.
• Robo-Arm® Helper System: Applies pressure to the tire bead to help maintain the top bead in the drop center during mounting and provides valuable assistance with difficult low-profile and run-flat tires.
• RoboRoller® Helper System: Provides additional assistance by helping maintain the tire bead in the drop center during challenging mounting procedures.
• Horizontal Power Rollers: Provide additional power and control for difficult tire assemblies and assist technicians throughout mounting and demounting procedures.

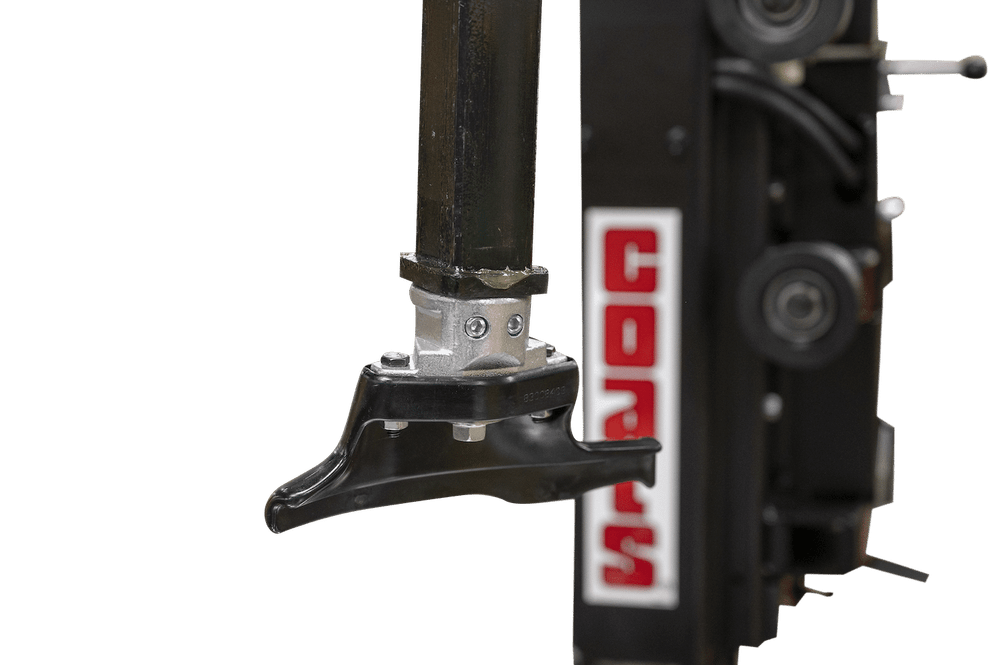

• Duckhead® Roller: Provides additional assistance when working with difficult tire beads and challenging tire assemblies.

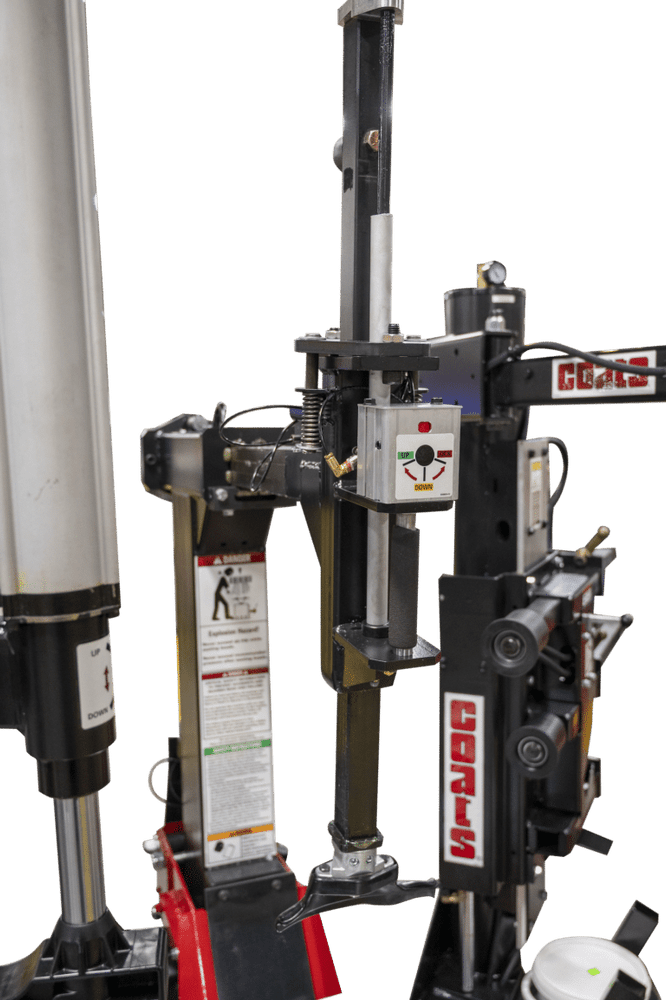

• Hand-Controlled Bead Loosening: Point-of-use controls provide technicians with precise control and improved visibility during the bead-loosening process.
• Tilt-Back Tower: Tilts away from the wheel to provide additional working room and helps streamline tire mounting and demounting procedures.
• 44" Maximum Tire Diameter: Accommodates a broad range of passenger car and light truck tire applications.
• 16" Maximum Rim Width: Provides capacity for servicing wide tire and wheel assemblies.
• Grip-Max® Plus Clamps: Included clamps securely hold the wheel while providing the large external clamping range needed for modern wheel sizes.
• Four-Clamp Rim Clamp System: Air-cylinder-operated clamps securely hold the wheel during mounting and demounting procedures.
• Electric or Air Drive: Available with either a 2 HP, 110V electric motor or 1.5 HP air motor to match different shop requirements.
• Optional Leverless Upgrade: Shops can add Coats' available leverless system for additional capability when servicing difficult and high-value tire and wheel assemblies.
• All-In-One Tire Service Platform: Combines large wheel capacity, multiple technician-assist devices, an integrated wheel lift, and professional-duty construction in a single tire-changing platform.

Specifications:

Included Accessories:

• 8000491: Applicator Lube
• 8106259: Bottle Lube
• 8183710: Paste Lube
• 85009048: Paste Lube Bracket & Brush
• 8181354: Tool Lift
• 85000783: Lift Tool Socks – 10
• 8183606: Bead Loosener Shoe Socks – 2
• 8185770: Duckhead® Roller
• 85000269: Nylon Duckhead® Mount/Demount Tools – 2 Pack
• 85607787: Grip-Max® Plus Clamps – Set of 4

Available Models:

• 850002221: APX90 – 1.5 HP Air Motor
• 85000222: APX90 – 2 HP, 110V Electric Motor

Recommended Optional Accessories:

• 85607471: Leverless Upgrade
• 85606545: Auxiliary Bead Sealer (ABS)

All-In-One Tire Changing Platform:

The APX90 brings together many of the capabilities professional tire shops typically need for difficult tire service in one machine. Its large 9" to 30" external clamping range is combined with Robo-Arm®, RoboRoller®, horizontal power rollers, a Duckhead® roller, tilt-back tower, and integrated wheel lift. This gives technicians multiple tools for controlling difficult tire beads while reducing the need for separate equipment or adapters.

Integrated Wheel Lift:

The APX90's integrated wheel lift helps technicians position large and heavy tire and wheel assemblies at tabletop height. Reducing the amount of manual lifting required can improve technician ergonomics and productivity while providing greater control when handling heavy, expensive, or custom wheel assemblies.

Advanced Helper Systems:

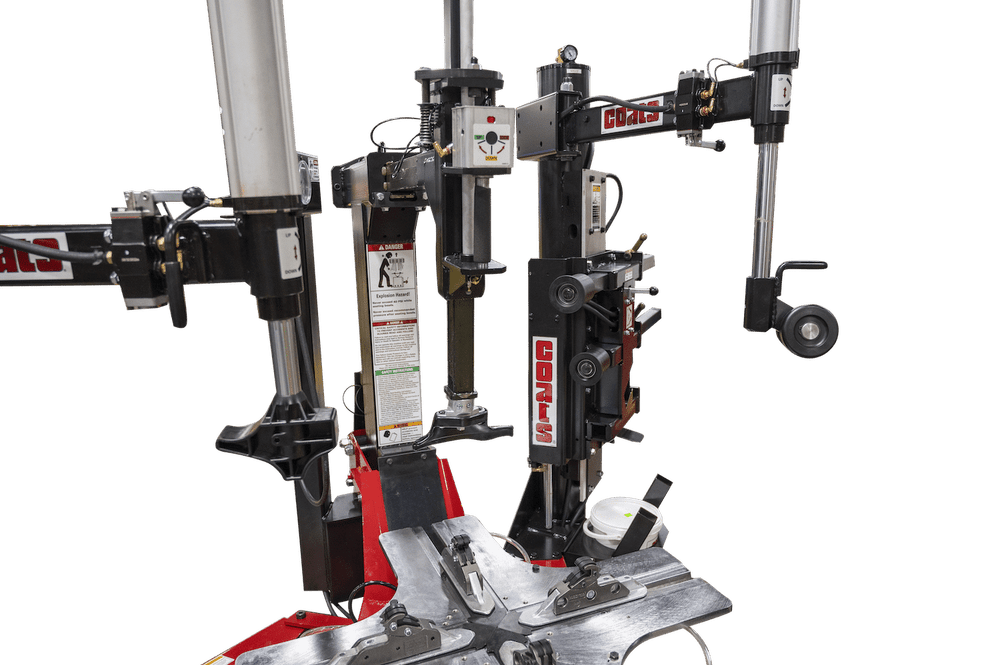

Robo-Arm®, RoboRoller®, horizontal power rollers, and the Duckhead® roller work together to assist technicians throughout difficult mounting and demounting procedures. These helper systems make it easier to control stiff sidewalls and maintain the tire bead in the drop center when working with low-profile, run-flat, and other challenging tire assemblies.

Large 9" to 30" Clamping Range:

The APX90's Grip-Max® Plus four-clamp system provides an external clamping range from 9" to 30" without requiring special adapters. This broad capacity gives professional shops the flexibility to service everything from smaller passenger-car wheels to large custom and performance wheel assemblies on a single tire changer.

Optional Leverless Upgrade:

For shops that want to expand the APX90's capabilities even further, Coats offers an optional Leverless Upgrade. This provides an upgrade path for facilities that want the versatility and helper technology of the APX90 platform combined with leverless tire-changing capability.

Why Choose the Coats APX90?

The Coats APX90 is an excellent choice for high-volume professional tire shops that want the familiarity and versatility of a four-clamp rim-clamp tire changer combined with advanced technician-assist technology. Its large clamping range, integrated wheel lift, Robo-Arm®, RoboRoller®, and power rollers provide the capability needed to efficiently service a broad range of modern tire and wheel assemblies.

The APX90 is particularly well suited for shops that regularly handle large, heavy, low-profile, run-flat, custom, and performance wheels. The integrated wheel lift improves technician ergonomics, while multiple helper systems provide additional control over difficult tire beads throughout the mounting and demounting process.

For professional shops that want a premium, high-capacity rim-clamp tire changer with extensive standard helper technology and the ability to handle wheels up to 30" without special adapters, the Coats APX90 All-In-One Rim Clamp Tire Changer provides an exceptionally capable all-in-one tire-service platform.
