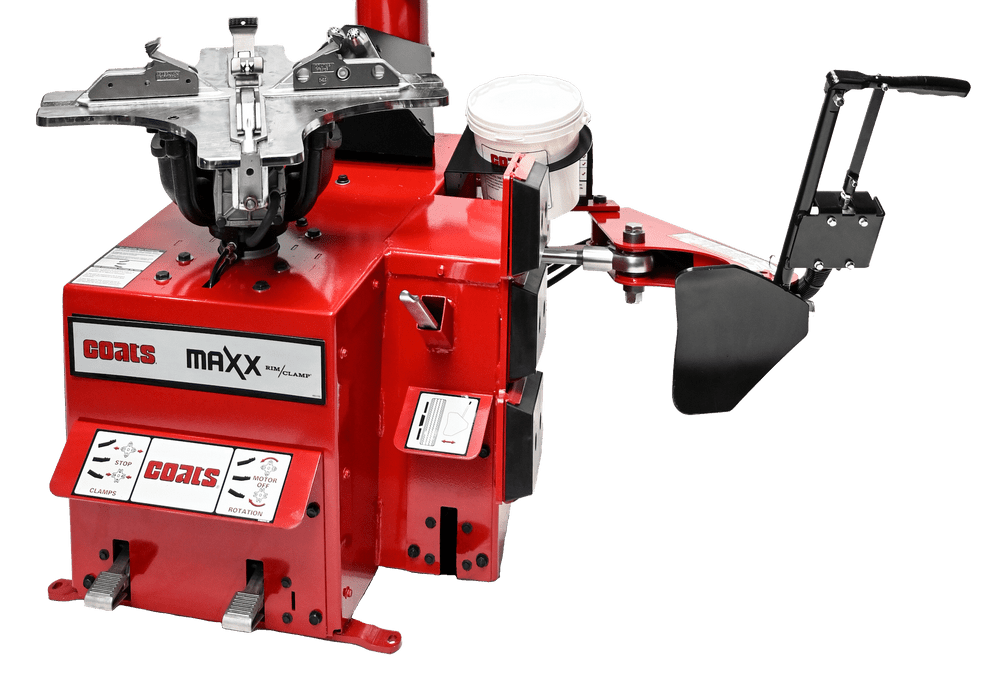

Coats Maxx 50 Rim Clamp Tire Changer

The Coats Maxx 50 Rim Clamp Tire Changer is a professional tire changer designed for general repair shops, tire dealers, dealerships, and automotive service centers that need dependable everyday tire-changing capability with room to expand as their service needs grow. Built on Coats' durable Maxx platform, the Maxx 50 combines a 6" to 24" external clamping range with hand-controlled bead loosening, high-pressure dual-nozzle bead sealing, a no-index tabletop, and a protective Polymer Duckhead® mount/demount tool.

With capacity for tires up to 50" in diameter, rims up to 16" wide, and bead loosening capability up to 22" wide, the Maxx 50 provides excellent versatility for passenger car and light truck applications. Its upgradeable design allows shops to add additional helper systems such as the Robo-Arm®, RoboRoller®, and foot-operated bead loosener as tire-service requirements grow, making the Maxx 50 an excellent entry point into the Coats Maxx Series.

Features and Benefits:

• 6" to 24" External Clamping Range: Included steel clamps accommodate a broad range of passenger car and light truck wheels right out of the box.

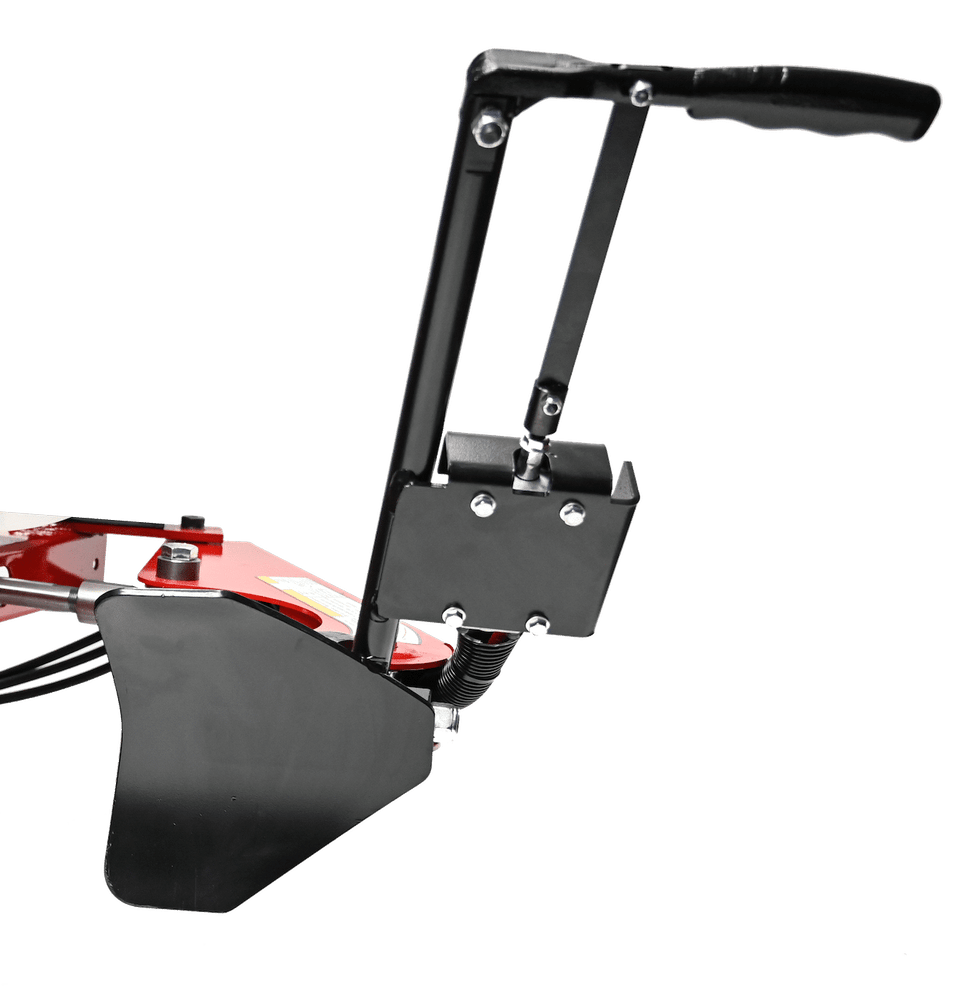

• Hand-Controlled Bead Loosening: Point-of-use controls give technicians increased visibility and precise control during the bead-loosening process.
• Up to 22" Bead Loosening Width: Provides additional capacity for servicing wide tire and wheel assemblies.
• High-Pressure Dual-Nozzle Bead Sealing: Two powerful jets concentrate airflow to help quickly and efficiently seat difficult tire beads.
• No-Index Tabletop: Helps save time when working with large wheel assemblies by reducing unnecessary tabletop indexing and pedal presses.
• Polymer Duckhead® Mount/Demount Tool: Helps technicians efficiently mount and demount tires while minimizing metal-to-metal contact with the wheel.
• 50" Maximum Tire Diameter: Provides capacity for a broad range of passenger car and light truck tire applications.
• 16" Maximum Rim Width: Accommodates wide tire and wheel assemblies for increased service versatility.
• Four-Clamp Rim Clamp System: Air-cylinder-operated steel clamps securely hold the wheel during mounting and demounting procedures.
• Upgradeable Maxx Platform: Available helper systems such as Robo-Arm®, RoboRoller®, and foot-operated bead loosening can be added as your shop's tire-service requirements grow.
• Electric or Air Drive: Choose between a 110V electric configuration or air-powered model to match your shop's requirements.
• Optional 30" Extended Clamps: Available GripMax® extended clamps increase wheel service capability for shops that regularly work with larger wheel assemblies.
• Optional Wheel Lift: Factory-installed wheel lift configurations help technicians load and unload heavy tire and wheel assemblies while reducing physical strain.
• Engineered for Durability: The robust Maxx chassis has been tested up to 250,000 bead-breaking cycles for dependable operation in demanding professional tire-service environments.

Specifications:

Included Accessories:

• 8183061: Polymer Duckhead®
• 8184926: Steel Clamps

Available Models:

• 800MAXX50: Maxx 50 – 110V Electric
• 800MAXX50L: Maxx 50 – 110V Electric with Wheel Lift
• 800MAXX50A: Maxx 50 – Air
• 800MAXX50AL: Maxx 50 – Air with Wheel Lift

Recommended Optional Accessories:

• 85612106: Grip-Max 2.0® 24" Clamps
• 85607986: GripMax® 30" Extended Clamps – Set of 4
• 85611558-01: Foot-Operated Bead Loosener Kit
• Robo-Arm® Helper System
• RoboRoller® Bead Roller Arm Kit

Upgradeable Maxx Platform:

The Maxx 50 is designed to grow with your shop. Available upgrades allow you to add technician-assist features such as the Robo-Arm®, RoboRoller®, and foot-operated bead loosening as your tire-service needs change. This allows shops to start with the essential capabilities of the Maxx 50 and add additional assistance later without replacing the entire tire changer.

Optional Wheel Lift:

Maxx 50 models equipped with the factory-installed Coats Wheel Lift make it easier to handle large and heavy tire and wheel assemblies. The foot-pedal-operated lift raises the assembly to the approximately 29" tabletop height and supports wheel assemblies weighing up to 150 lbs. at 150 PSI. This helps reduce technician lifting and can improve ergonomics and productivity when servicing heavier wheel assemblies.

Why Choose the Coats Maxx 50?

The Coats Maxx 50 is an excellent choice for professional shops that want the durability and capacity of the Maxx platform without paying upfront for helper systems they may not currently need. Its 6" to 24" clamping range, 50" maximum tire diameter, 16" maximum rim width, dual-nozzle bead sealing system, and hand-controlled bead loosener provide the essential capabilities needed for professional passenger car and light truck tire service.

What makes the Maxx 50 particularly attractive is its upgradeability. As a shop begins servicing more low-profile, run-flat, or other challenging tire assemblies, available Robo-Arm®, RoboRoller®, and foot-operated bead-loosener upgrades can expand the machine's capabilities without requiring replacement of the entire tire changer.

For general repair shops and tire-service facilities looking for a durable professional rim-clamp tire changer with a straightforward feature set and the flexibility to grow with their business, the Coats Maxx 50 provides an excellent entry point into the Maxx Series.
