Coats Maxx 90 Rim Clamp Tire Changer

The Coats Maxx 90 Rim Clamp Tire Changer is a premium professional tire changer built for high-volume tire dealers, automotive service centers, and shops that regularly handle demanding tire and wheel assemblies. Designed and built in the USA, the Maxx 90 combines an extended rim-clamping range with Coats' Leverless Bead Lifter, Robo-Arm®, RoboRoller®, dual-mode bead loosening, and high-pressure dual-nozzle bead sealing system.

With extended clamping capability for wheels up to 30", capacity for tires up to 50" in diameter, and support for rims up to 16" wide, the Maxx 90 provides exceptional versatility for passenger car and light truck applications. Its advanced helper systems are designed to make difficult tire changes faster and easier while helping protect wheels and reduce technician effort when servicing low-profile, run-flat, and other challenging tire assemblies.

Features and Benefits:

• Up to 30" Clamping Capacity: Extended four-clamp capability allows the Maxx 90 to accommodate wheel assemblies up to 30", providing additional versatility for today's larger wheels.

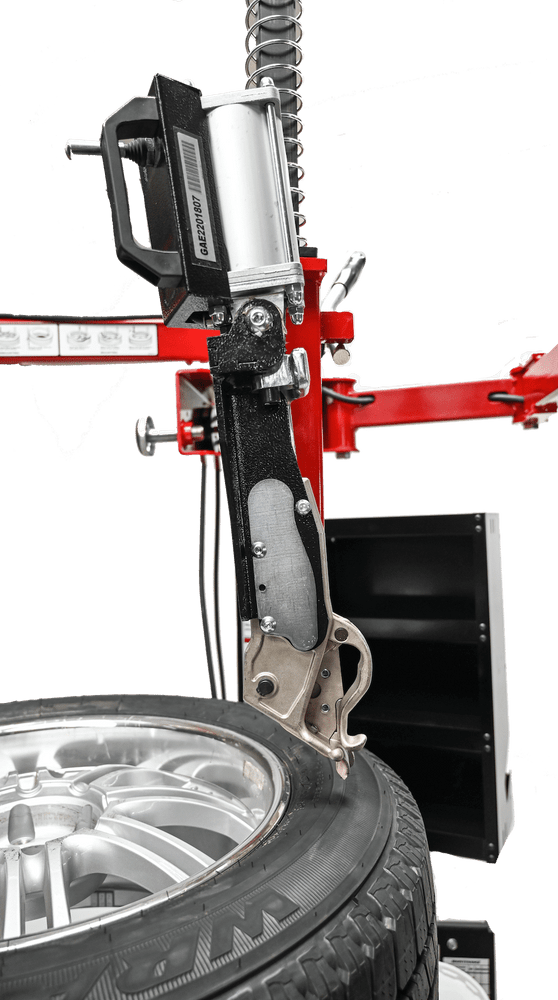

• Leverless Bead Lifter: Lifts the tire bead without requiring a traditional tire bar, making mounting and demounting easier while helping reduce the potential for wheel damage.
• Robo-Arm® Helper System: Applies pressure to the tire bead to help keep it in the drop center during mounting and provides valuable assistance with difficult low-profile and run-flat tires.
• RoboRoller® Bead Depressor: Helps keep the tire bead in the drop center and prevents it from rolling back over the mount tool during challenging mounting procedures.

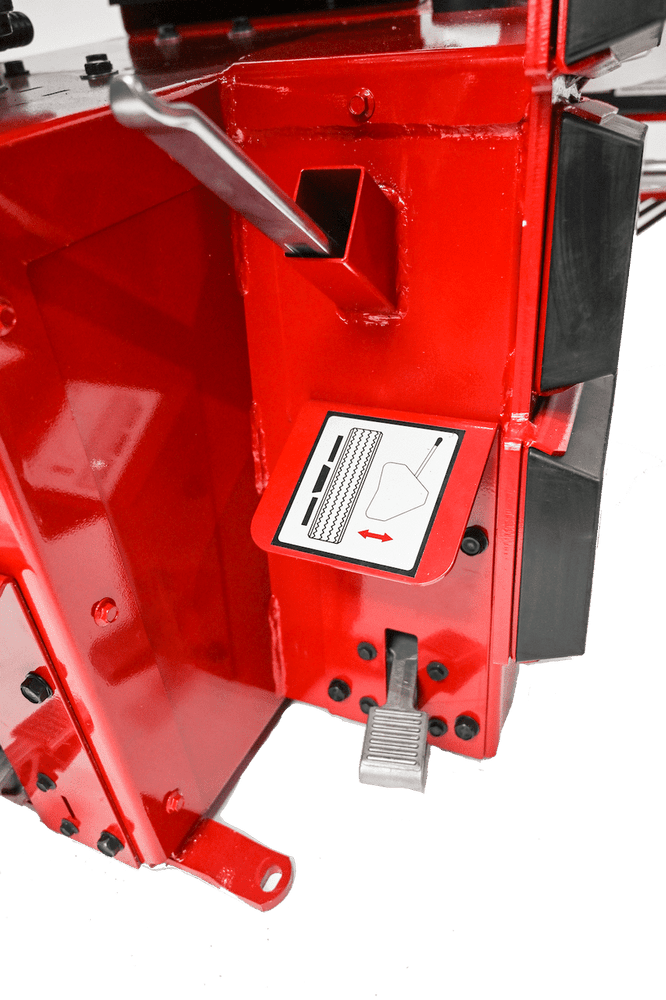

• Hand or Foot-Controlled Bead Loosening: Gives technicians the choice between convenient foot-pedal operation and the added precision and visibility of hand-controlled bead loosening.
• High-Pressure Dual-Nozzle Bead Sealing: Delivers concentrated airflow to help efficiently seat difficult tire beads.
• 16" Maximum Rim Width: Provides additional capacity for servicing wide tire and wheel assemblies.
• 50" Maximum Tire Diameter: Handles a broad range of passenger car and light truck tire applications.
• No-Index Tabletop: Helps improve technician efficiency by reducing the need to reposition the wheel during tire service.
• Four-Clamp Rim Clamp System: Air-cylinder-operated clamps securely hold wheels during mounting and demounting procedures.
• Powerful Drive Options: Available with either a 220V two-speed electric drive or air-powered configuration to accommodate different shop requirements.
• Optional Integrated Wheel Lift: Available configurations with a wheel lift help technicians load and unload heavy tire and wheel assemblies while reducing physical strain.
• Built for High-Volume Service: The durable Maxx chassis has been tested to 250,000 bead-breaking cycles for dependable operation in demanding professional tire-service environments.
• Designed and Built in the USA: The Maxx Series is designed and manufactured by Coats in Tennessee.

Specifications:

Available Models:

• 800MAXX90220: Maxx 90 – 220V, 2-Speed Electric
• 800MAXX90220L: Maxx 90 – 220V, 2-Speed Electric with Wheel Lift
• 800MAXX90A: Maxx 90 – Air
• 800MAXX90AL: Maxx 90 – Air with Wheel Lift

Optional Wheel Lift:

Maxx 90 models equipped with the Coats Wheel Lift help technicians safely and efficiently handle heavy tire and wheel assemblies. The foot-pedal-operated lift raises wheel assemblies to the approximately 29" tabletop height and supports assemblies weighing up to 150 lbs. at 150 PSI. This can help reduce technician lifting, improve ergonomics, and increase productivity when servicing larger and heavier wheel assemblies.

Why Choose the Coats Maxx 90?

The Coats Maxx 90 is designed for high-volume shops that need maximum capability from a premium rim-clamp tire changer. Its extended clamping capacity and 16" maximum rim width provide the versatility to service a wide range of wheel assemblies, while the Leverless Bead Lifter, Robo-Arm®, and RoboRoller® provide the assistance technicians need when working with challenging low-profile, run-flat, and other difficult tire assemblies.

The Maxx 90 also gives technicians greater control over the tire-changing process with both hand- and foot-controlled bead loosening, high-pressure dual-nozzle bead sealing, and powerful drive options. For shops handling heavy wheel assemblies, models equipped with the optional wheel lift can further improve technician ergonomics and productivity.

For professional tire dealers and automotive service facilities that want the capabilities of Coats' most complete premium rim-clamp tire changer, the Coats Maxx 90 is an excellent choice for demanding, high-volume wheel service.
