Rotary R144i Swingarm Tire Changer

Call for Price

Free_shipping:
Free Shipping
(No reviews yet) Write a Review
SKU:
#R144i
Availability:
Usually ships in 10-15 Business Days
Product Manual/Brochure:
Download

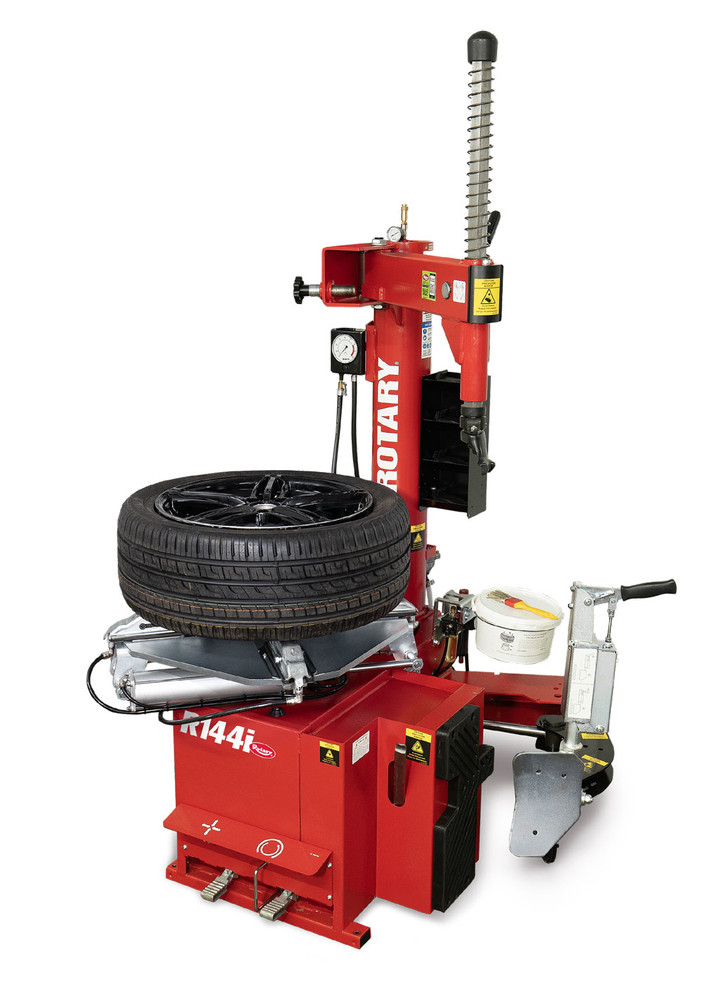

Designed for affordability, Rotary's R144i Tabletop Tire Changer grows with your shop. Out of the box, the R144i is ready to tackle high-volume wheel service requests, while offering additional upgrades to help shops affordably step into advanced productivity and profits.

Greater Control. Less Strain

Our R144i Tire Changer features a hand-controlled bead breaker, giving operators greater control and reducing the chance of rim damage. This hand-controlled system places less strain on the operator than pedal-controlled bead breakers, making the tire-changing experience more comfortable for your technicians. Its extra-wide tool shaft handles tires up to a 15” maximum width, while its POWER IN, PARK, and POWER OUT actions work on low-profile and large steel or alloy rims.

Wheel-Friendly

The R144i comes standard with a plastic mounting/demounting head for greater wheel protection, so your shop can focus on fast-paced, quality service. The featured mounting head is built to protect wheels, making it the perfect solution for high-volume shops and even up-and-coming technicians still learning the ins and outs of tire changing.

Space-Saving

Engineered to save space and maximize your shop's efficiency, the R144i features a built-in encapsulated air tank, freeing up valuable space behind your changer.

Convenient & Organized

Our handy storage compartment comes standard with the R144i. It keeps convenient tools and supplies (including valve stems, valve cores, and other tire-changing accessories) within arm's reach, speeding up your shop's tire-changing process.

110v Drive Motor Supplies Needed Torque

The 110v drive motor on this unit provides all the necessary torque to get the job done right, so there’s no additional wiring or power supply needed.

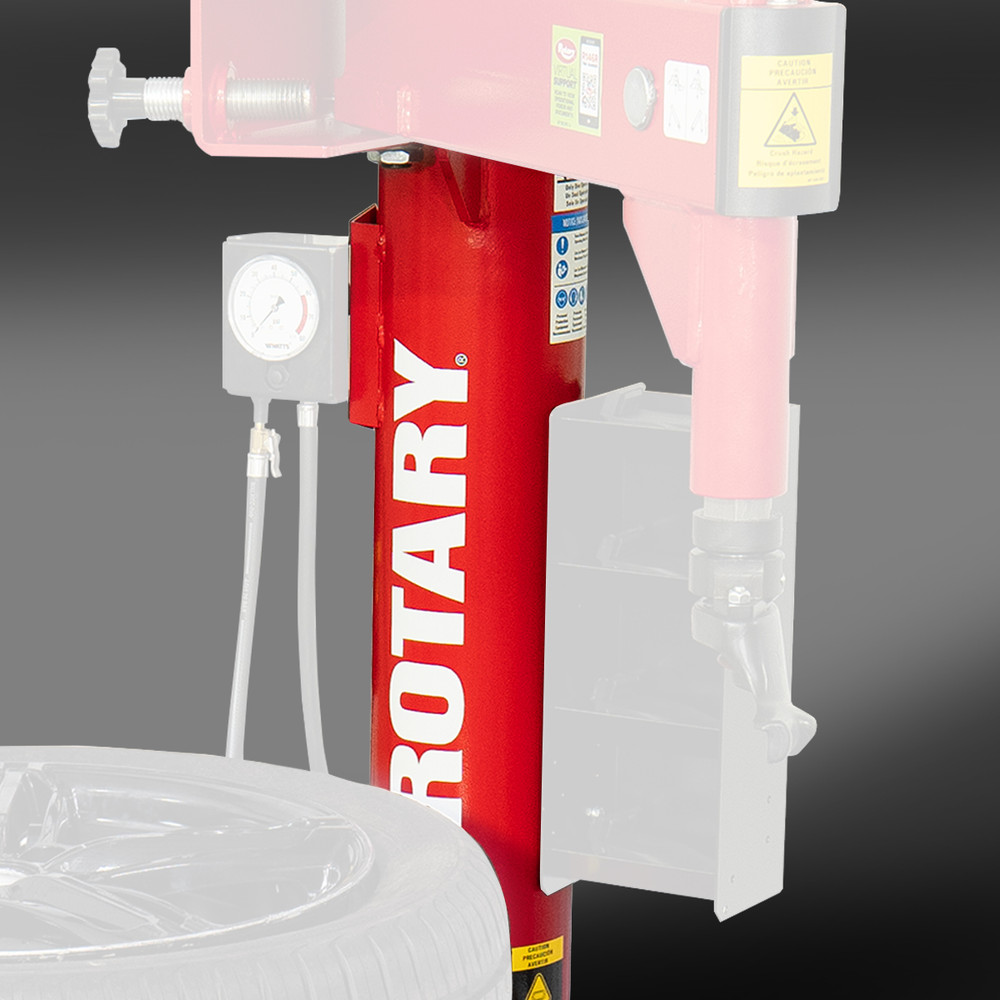

Air Tank is out of sight and out of mind

The unit’s air tank is located inside its vertical column, meaning there is no bulky tank to maneuver around.

Specifications

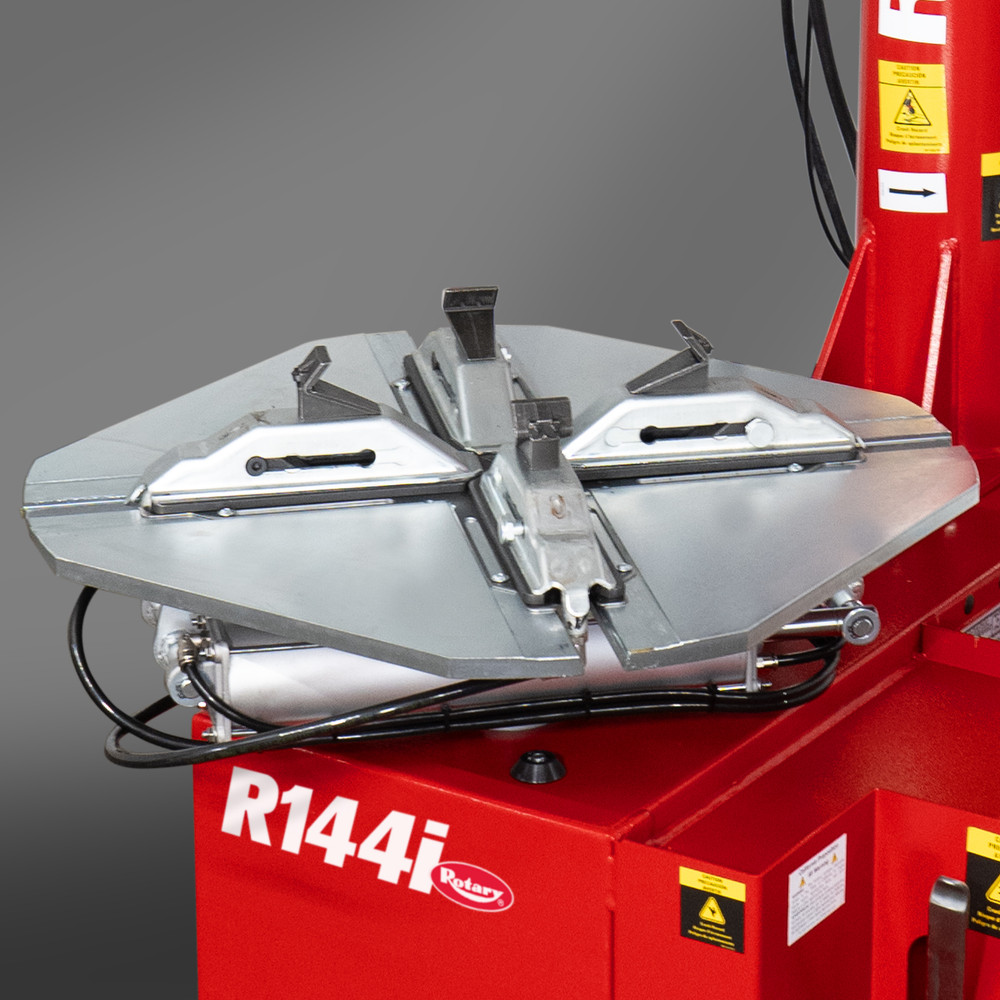

External clamping 10″ – 26″
Maximum torque to chuck 885 Ft/L bs (1200 Nm)
Internal clamping 12” – 28.5”
Max. tire diameter 46” (1200 mm)
Max. tire width 15” (380 mm)
Max. bead breaker opening 15” (380 mm)
Bead breaker cylinder power at 145 psi 6,745 Ft/L lbs (3060 kg)
Power supply 110v / 1Ø / 60 Hz
Site Requirements 110V/115-145 psi air supply

Free_shipping:
Free Shipping
Product Manual/Brochure:
Download
External clamping:
10″ – 26″
Internal clamping:
12” – 28.5”
Max tire diameter:
46” (1200 mm)
Max tire width:
15” (380 mm)
Bead breaker cylinder power at 145 psi:
6,745 Ft/L lbs (3060 kg)
Power supply:
110v / 1Ø / 60 Hz
Site Requirements:
110V/115-145 psi air supply
