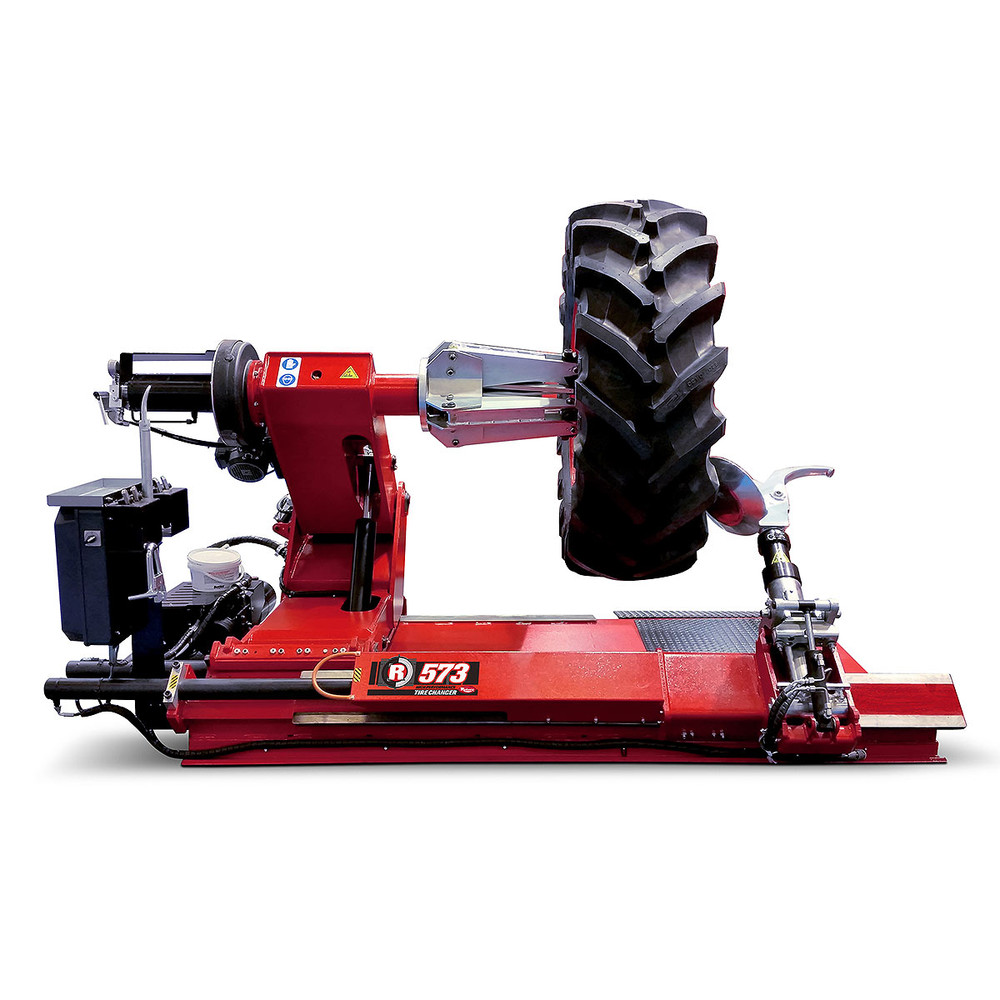

Rotary R573 Extreme Heavy-Duty Tire Changer

$52,999.00
$51,035.00
(You save $1,964.00 )
Free_shipping:
Free Shipping
(No reviews yet) Write a Review
SKU:
#R573
Availability:
Built to Order. Usually ships in 14-16 weeks
Product Manual/Brochure:
Download

UNIVERSAL TIRE CHANGER FOR EXTREME WHEEL DIMENSIONS



SPECIAL ORDER ELECTROHYDRAULIC CHANGER FOR TRUCKS, AGRICULTURAL AND EARTHMOVING VEHICLES. HIGH BEAD BREAKING FORCE The considerable bead breaking force makes mounting and demounting tires effortless. MULTIPLE ADJUSTABLE GUIDESThe electro-brake allows immediate stopping of the rotation to avoid any damage to tires.STAND-BY FUNCTIONAfter 5 sec. the machine has not been used, the motor will turn off.

  • Console cable control unit with a metal sheath
  • Double speed table rotation
  • Quick locking manual rotation tool
  • B530800 long bead lifting lever
  • VSG108A25 / clamp for earthmoving wheels
  • Tire paste lubricant and brush

R573BT NO CABLE TO CONTROL

Features

Service Tire Diameters up to 106″

Rotational control on portable wired stand

The oversized chucking dimension allows work on larger tires without interference. Reach 50” wheels without extensions or wheels from 51” to 60” with an optional VSG108A39 adapter set.



Specifications

TECHNICAL DATA

R573

Chucking unit rotation motor

3 Hp / 2.2 kW

Hydraulic drive unit motor

3.35 Hp / 2.5 kW

Rim diameter
With Optional G108A39 adapters

11”- 50”
51” – 60”

Maximum tire diameter

106” (2700mm)

Maximum tire width

69” (1750mm)

Chuck rotation speed (rev/min)

1 – 5 – 10

Power Supply

220v / 3Ø / 60 Hz

Free_shipping:
Free Shipping
Product Manual/Brochure:
Download
Maximum tire diameter:
106” (2700mm)
Maximum tire width:
69” (1750mm)
Power Supply:
220v / 3Ø / 60 Hz
